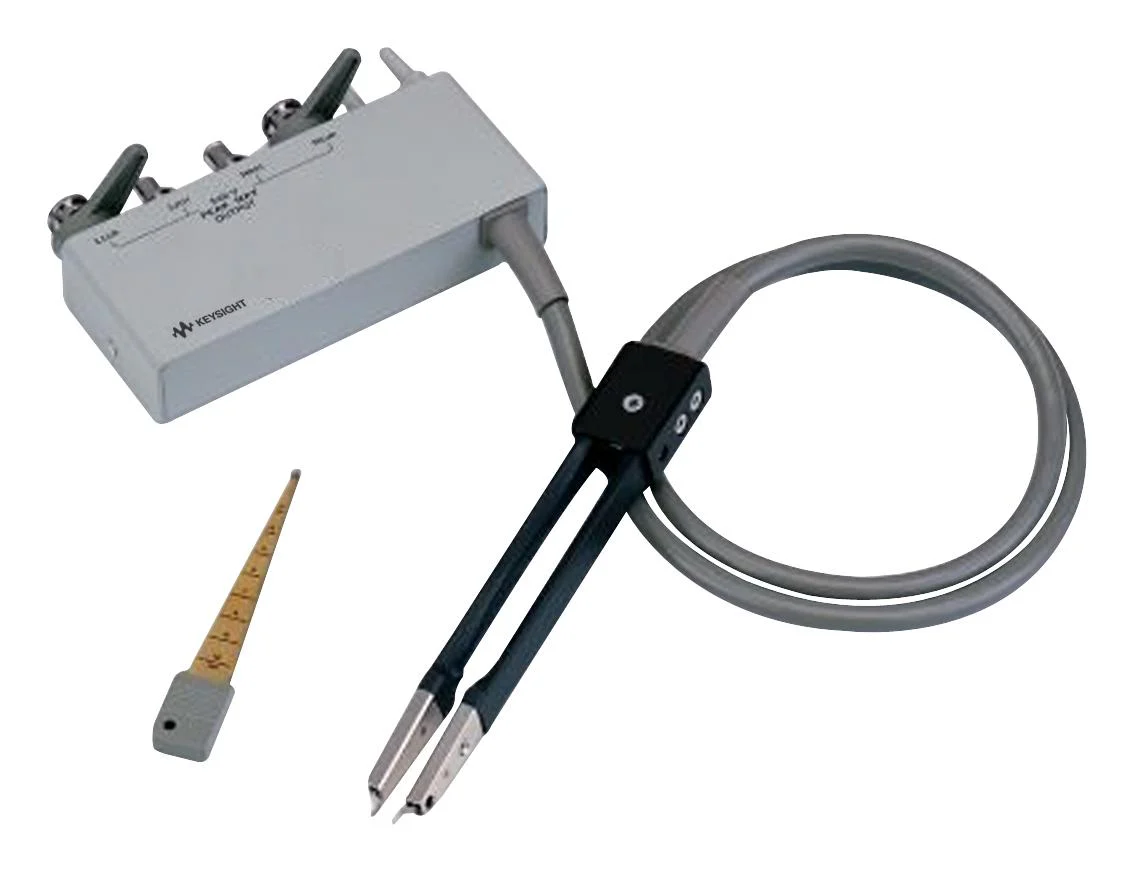

Keysight Technologies 16334A 16334A Test Cable Assembly Tweezers Contacts Fixture

16334A test fixture with tweezer contacts is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. The tweezers' contacts on this fixture makes it easy to hold the DUT.

• 4-terminal pair, BNC connector
• 2-terminal DUT connection
• Applicable instruments: E4980A/AL, E4981A, E4990A
• Frequency range from 5Hz to 15MHz
• Maximum voltage of ±42V peak (AC+DC)
• Cable length (approx): 1m (from BNC connectors to the top of tweezers)
• Operating temperature range from 0 to 55°C

Contents

Tweezers contact test, 1 x compensation block 16334-60001, 1x operating note 16334-90000.

Other details

Brand	KEYSIGHT TECHNOLOGIES
Part Number	16334A
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
