iStarUSA 5.25" to Four 2.5" SATA/SAS Hot-Swap Rack
iStarUSA BPU-124DE-SS Overview

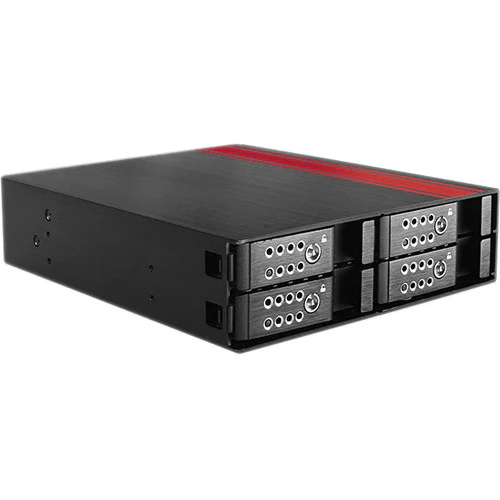

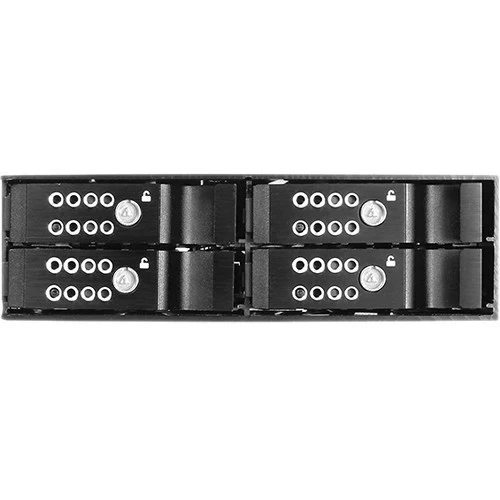

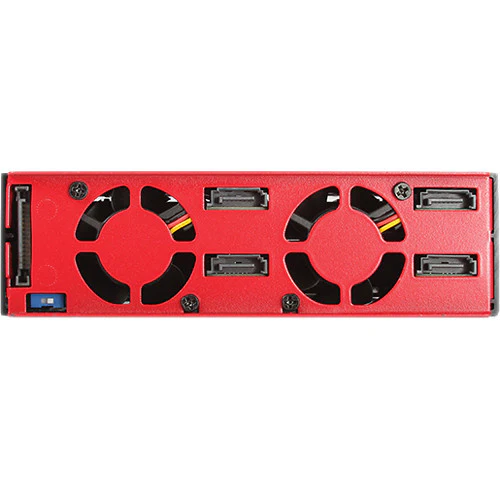

The 5.25" to Four 2.5" SATA/SAS Hot-Swap Rack from iStarUSA occupies an available 5.25" external bay in your desktop computer to provide four 2.5" drive bays. With this conversion, you can quickly install or remove 2.5" hard drives and SSDs without removing a panel to access the insides of the chassis. The bays are compatible with drives up to 0.6" tall and offer a SATA or SAS interface. To cool the storage drives, two 40mm fans are on board. In addition, trays are included for quick mounting of drives, and each of the trays sports a key lock to prevent accidental removal of a drive.
Items Included
- iStarUSA 5.25" to Four 2.5" SATA/SAS Hot-Swap Rack
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
iStarUSA BPU-124DE-SS Specs
| Drive Size |
4x 2.5"
|
| System Bay Size |
1x 5.25"
|
| Hot-Swap Support |
Yes
|
| System Connection |
SATA 3 (6 Gb/s), SAS 2 (6 Gb/s)
|
| Maximum 2.5" SATA Drive Height |
12.5 mm
|
| System Bay Size |
1x 5.25"
|
| Hot-Swap Support |
Yes
|
| System Connection |
SATA 3 (6 Gb/s), SAS 2 (6 Gb/s)
|
| Cooling Fan |
2x 40 mm
|
| Material of Construction |
Aluminum
|
| Security |
Key Lock
|
| Certifications |
RoHS, as per Manufacturer
|
| Dimensions |
5.7 x 1.6 x 7.1" / 14.6 x 4.2 x 18 cm
|
| Package Weight |
1.8 lb
|
| Box Dimensions (LxWxH) |
7.8 x 6.1 x 2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
