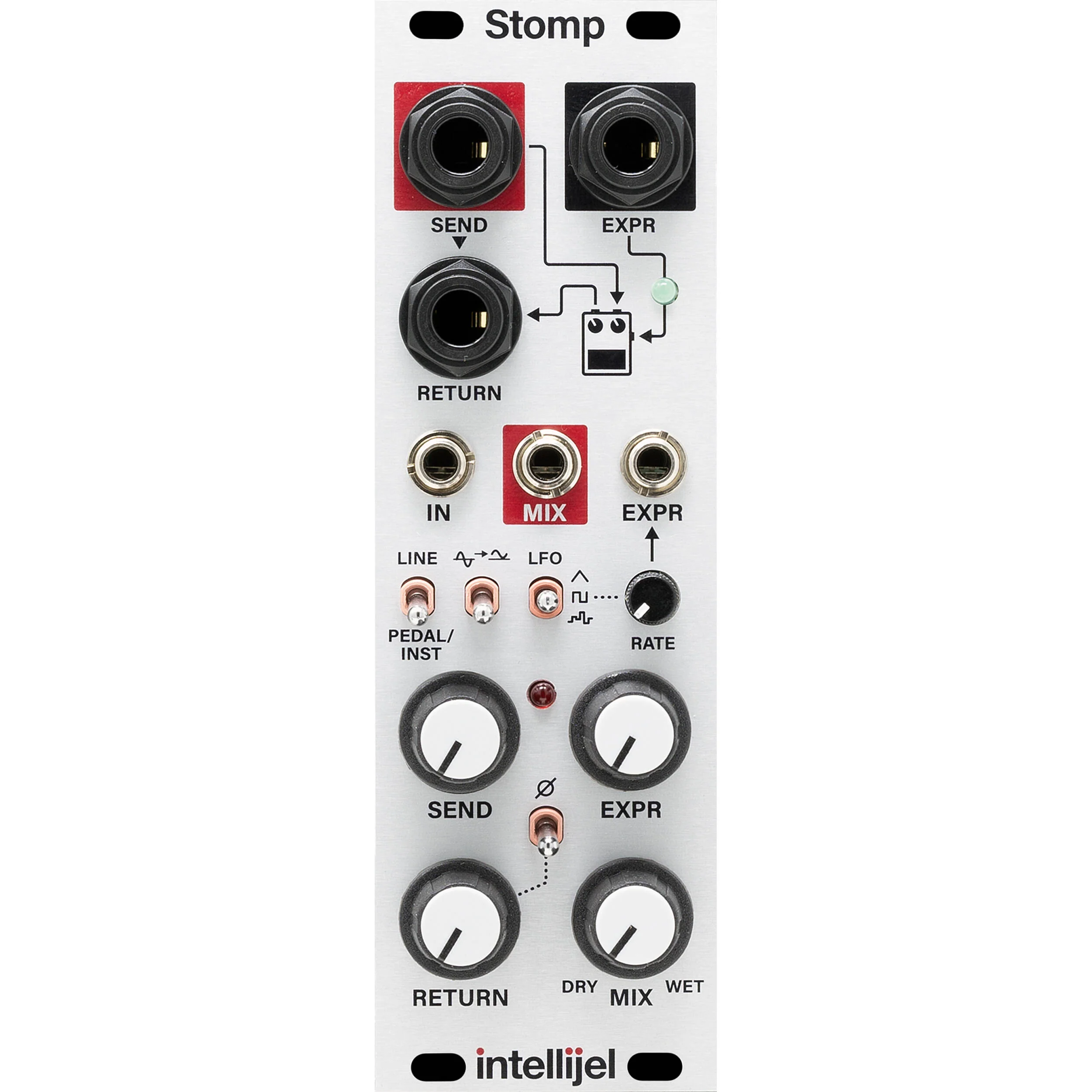

intellijel STOMP-3U Overview

Expand your palette of possibilities by adding stomp boxes to your modular setup with the intellijel Stomp, a Eurorack module with an effects pedal send/return, expression control, and a built-in LFO. Stomp enables the modular synthesist to interact with the impressive assortment of delays, choruses, flangers, phasers, fuzz boxes, tremolos, wah-wahs, amp simulators, compressors, and pitch shifter pedals available to guitarists. Stomp supports your pedal's expression pedal input if it has one, and features a built-in LFO to modulate your expression pedal's input.

Conversely, guitarists can plug their guitar directly into Stomp's RETURN jack, giving them access to the myriad filters, ring mods, wavefolders and�most importantly�the near-infinite CV modulation delights inherent in Eurorack. The module includes a power ribbon cable.

At a Glance
  • Robust Neutrik 1/4? TS connectors for the SEND/RETURN and TRS for the Expression interface
  • Signals arriving at Stomp�s RETURN jack pass through a Class-A triode emulator, allowing for some tubelike overdrive at high-gain settings.
  • SEND output is normalled to RETURN input, so even without 1/4? cables you can route Eurorack signals through the FET stage for coloring.
  • Stomp is more than just a simple level shifter�it�s also an impedance converter, which provides proper drive and loading for any FX pedals or instruments you connect.
  • Separate gain controls on both the SEND and RETURN. This enables you to adjust the level of any audio being sent to the FX pedals as well as any audio coming back into the modular. Not only does this allow you to optimize the signal-to-noise ratio, but by significantly boosting the RETURN level, you can achieve some pleasingly overdriven tones.
  • Supports both PEDAL/INST and LINE levels via a front-panel switch.
  • Use Stomp�s RETURN circuit as a direct box for connecting any instrument.
  • The high-input impedance of the RETURN circuit allows it to be used as a piezo pickup preamp for acoustic instruments.
  • Use Stomp in the studio as an active reamping device to play prerecorded tracks back through guitar amplifiers or pedals.
  • All inputs are protected for minimum RF interference.
  • Return signal can be phase inverted for use with those pedals or effects types that invert phase.
  • Low SEND output impedance for driving long cables, lower noise, and minimum interference from outside sources.
  • The Expression Pedal Output converts analog CV sources (or the internal LFO) into an output compatible with most stompbox Expression inputs.
  • If the internal LFO is set to 0 Hz (full CCW), the EXPR knob can be used as a manual expression pedal control level.
Eurorack Ready
  • 8 HP Eurorack format module
  • Maximum depth: 1.4" (35mm)
  • Includes power ribbon cable with Eurorack power headers
  • Power consumption: +12V: 47mA, -12V: 13mA

In the Box

  • intellijel Stomp Effects Pedal Send/Return with Expression Control and LFO Eurorack Module (8 HP)
  • Ribbon Power Cable
  • Limited 2-Year Manufacturer Warranty

Not in the Box

    intellijel STOMP-3U Specs

    Key Specs
    Sound Generation
    Analog
    Audio I/O
    1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Hi-Z/Instrument Input
    1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Hi-Z/Instrument Output
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    1x 1/8" / 3.5 mm TS CV Input
    1x 1/8" / 3.5 mm TS CV Output
    Patch Points
    3x 1/8" / 3.5 mm TS Input
    3x 1/8" / 3.5 mm TS Output
    Eurorack Current Consumption
    47 mA on +12 V Rail
    13 mA on -12 V Rail
    Horizontal Pitch
    8 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Analog
    Expression Controls
    No
    Number of Pads
    No
    Built-In Effects
    Yes
    Built-In Speaker
    No
    Synthesis
    Oscillators
    No
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    LFOs
    Number of LFOs: 1x Global
    Waveforms: Square, Triangle, Random
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Hi-Z/Instrument Input
    1x 1/8" / 3.5 mm TS Unbalanced Mono Line/Hi-Z/Instrument Output
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
    1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
    MIDI I/O
    No
    CV/Gate I/O
    1x 1/8" / 3.5 mm TS CV Input
    1x 1/8" / 3.5 mm TS CV Output
    Patch Points
    3x 1/8" / 3.5 mm TS Input
    3x 1/8" / 3.5 mm TS Output
    Sync I/O
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    47 mA on +12 V Rail
    13 mA on -12 V Rail
    Physical
    Horizontal Pitch
    8 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.375 lb
    Box Dimensions (LxWxH)
    5.6 x 3.4 x 3.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
