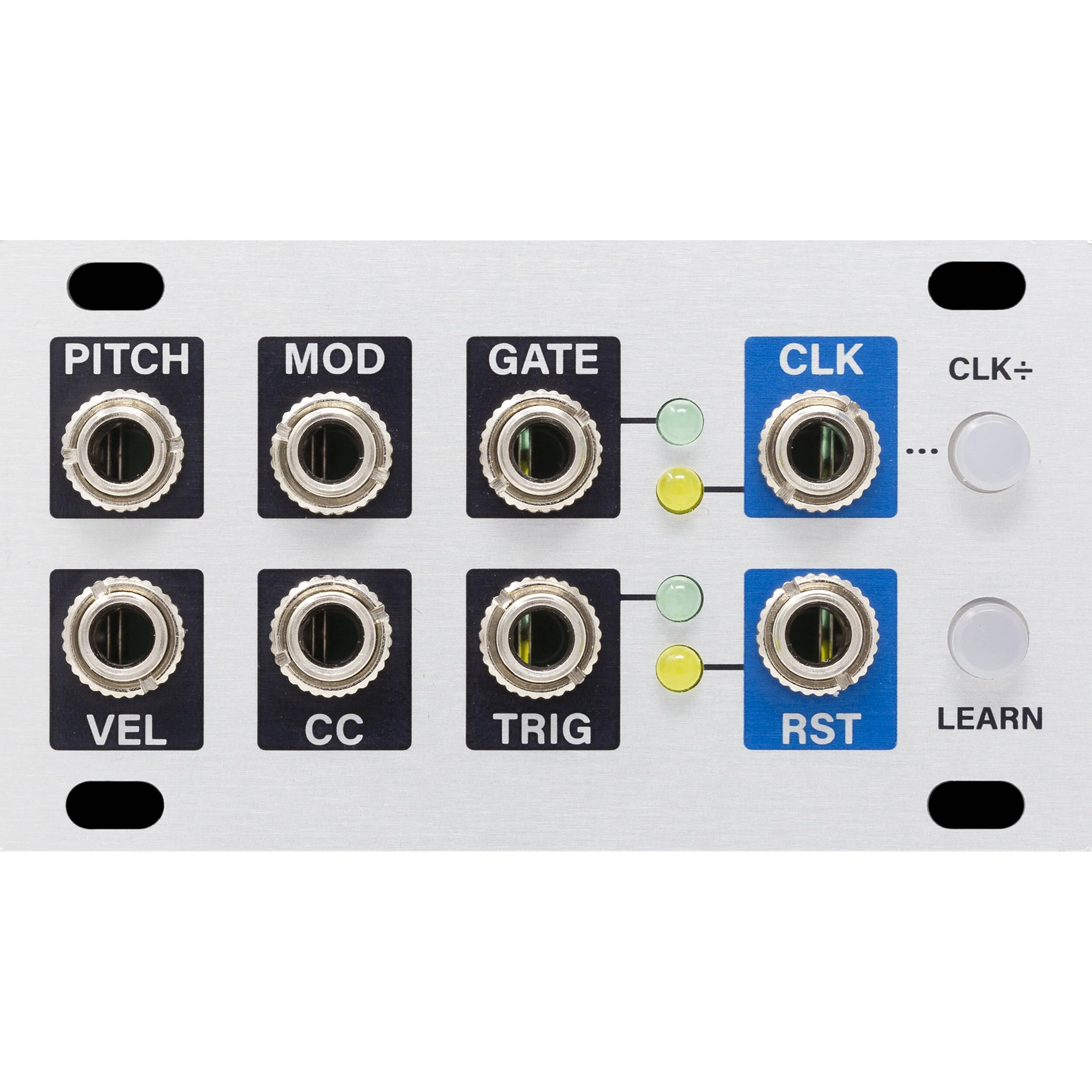

intellijel MIDI 1U MIDI-to-CV Eurorack Module (14 HP)
intellijel MIDI-1U Overview
Control and sync your modular system with the intellijel MIDI 1U, a Eurorack module that's part of the MIDI I/O 1U system, which allows you to control your synthesizer using a computer, or mobile or hardware MIDI device.
Several of the module's most important features can be changed using the two front-panel buttons, with full configuration capabilities offered via the Intellijel Config app (Mac/Windows). The connectivity, feature set, expandability, and compact size make the MIDI 1U system ideal for integrating your modular gear with the rest of your rig. The module includes a power ribbon cable.
MIDI 1U System Overview
Intellijel�s MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system is comprised of two mandatory components, and one optional component:
- MIDI 1U module: Receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock, and Reset messages�sending the proportional voltages to individual 3.5mm jacks for patching. If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock and Reset functionality, but uses the other six jacks to transmit Pitch, Velocity, and Gate messages derived from two separate MIDI channels.
- MIDI input connector: The MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect to an external MIDI device.
- CVx 1U module: Optional 14 HP 1U module connects to the MIDI 1U module and adds eight additional 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app and greatly expand MIDI 1U's ability to control your entire Eurorack system.
Eurorack Ready
- 14 HP Eurorack format module (1U)
- Maximum depth: 1.3" (32mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 34mA, -12V: 2mA
In the Box
- intellijel MIDI 1U MIDI-to-CV Eurorack Module (14 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
intellijel MIDI-1U Specs
Key Specs
| Sound Generation |
Analog/Digital Hybrid
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Output
3x 1/8" / 3.5 mm TS Gate/Trigger Output |
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Eurorack Current Consumption |
34 mA on +12 V Rail
2 mA on -12 V Rail |
| Horizontal Pitch |
14 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog/Digital Hybrid
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Output
3x 1/8" / 3.5 mm TS Gate/Trigger Output |
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Output
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
34 mA on +12 V Rail
2 mA on -12 V Rail |
Physical
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
14 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.23 lb
|
| Box Dimensions (LxWxH) |
4.9 x 3.3 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
