Iluminar IR148-2 Series Short-Range IR Illuminator (850nm)
- Provides IR Lighting to CCTV Cameras
- 4 SMT-Enabled LEDs
- Built-In Photocell (IR On / Off)
- 850nm Wavelength
- Illumination Distance up to 43'
- 148' Horizontal Field of View
- IP67 Weatherproof Rating

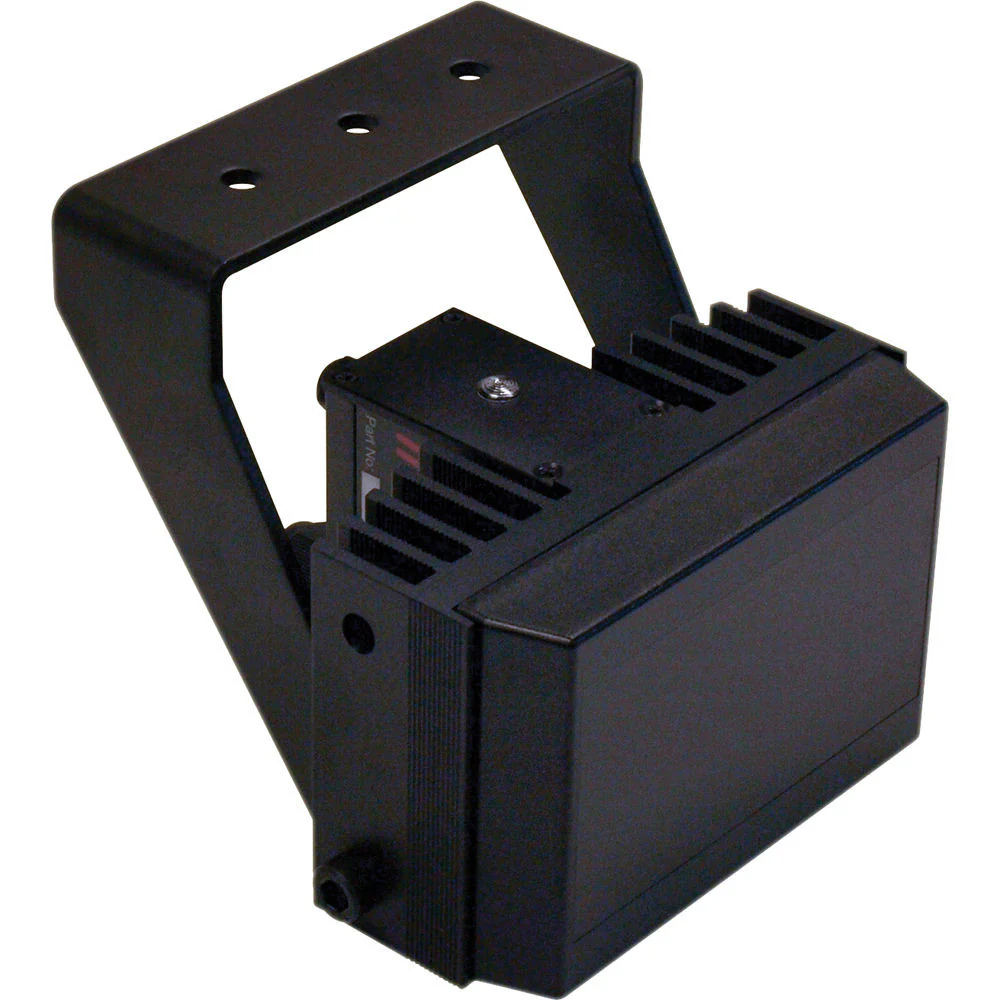

The black 850nm IR148-2 Series Short-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 43' (13m) and offers an illumination angle of 120�. It also has a built-in photocell and comes with a wall mounting bracket. The light intensity and photocell sensitivity can be adjusted using an IL-RC remote control (available separately). The IP67-rated and vandal-proof IR illuminator is weatherproof for outdoor use. The hardened housing provides protection from harsh weather conditions, such as rapid temperature variations ranging from -58 to 140�F (-50 to 60�C).
- Short-range IR illuminator with SMT LED technology
- Illumination range of up to 43' (13m) and illumination angle up to 120�
- 850nm wavelength
- 148' (45m) horizontal field of view
- Low power consumption of 13W
- Built-in photocell (IR on/off)
- Photocell following contact
- Telemetry input for remote switching
- Light intensity and photocell sensitivity adjustable via IL-RC remote control (available separately)
- Pressure equalization vent prevents thermal expansion & pressure cycling
- Black powder-coated stainless steel wall mount
- Wall Mount
- M6 Allen Key
- Limited 5-Year Warranty
| Illumination Angle | 120� |
| Illumination Distance | 43' (13 m) |
| Horizontal Field-of-View | 148' (45 m) |
| Wavelength | 850 nm (semi-covert) Faint red glow visible on the illuminator only (no visible light) |
| Electronics | High-efficiency surface-mount high-power LEDs with advanced current-limited integral control circuitry |
| Number of SMT LEDs | 4 |
| Photocell | Adjustable via IL-RC remote control (available separately) |
| Illumination | Adjustable via IL-RC remote control (available separately) |
| Mount | Powder-coated stainless steel wall mount Adjustable via M6 Allen key (included) |
| Construction | Aluminum extrusion |
| Front Window | Polycarbonate high-transmittance protective (vandal-proof) IR filter |
| Interface Connector | Telemetry following contact |
| Power Cable | 9' (3 m) |
| Input Voltage | 12 to 32 VDC or 24 VAC |
| Input Current | 0.6 A at 24 VAC |
| Power Consumption | 13 W |
| IP Rating | IP67 in accordance with EN60529:1992 |
| Certifications | Safety: EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: EN61000, FCC part 15.107 15.108 Class B WEEE directive 202/96/EC RoHS directive 202/95/EC |
| Operating Temperature | -58 to 140�F (-50 to 60�C) |
| Dimensions | 2.16 x 4.33 x 3.15" (5.5 x 11.0 x 8.0 cm) |
| Weight | 1.63 lb (0.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.65 lb |
| Box Dimensions (LxWxH) | 9.291 x 7.323 x 6.535" |
