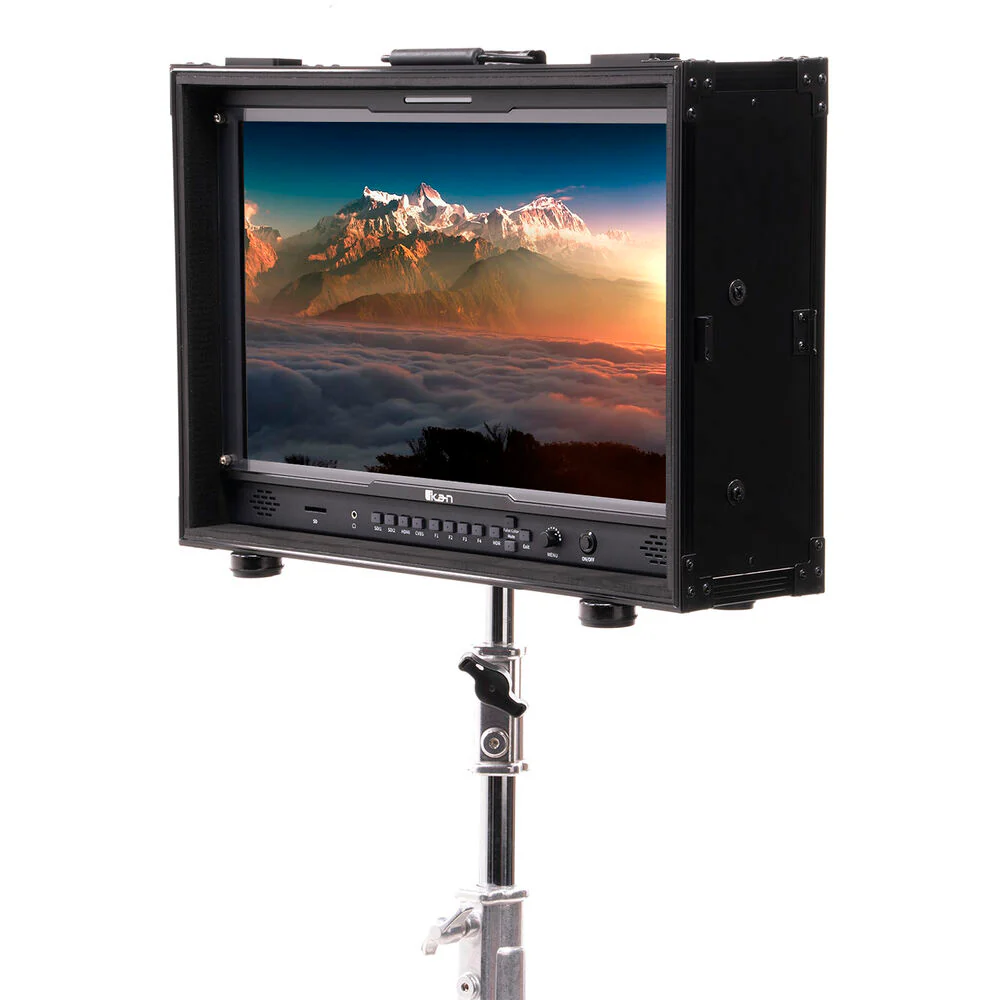

ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")
HomeStore

ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")

ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")

ikan AX20 Overview

Take your directing capabilities up a notch with the ikan Atlas 3G-SDI/HDMI Field and Studio Monitor. Thanks to a 21.5" 1920 x 1080 LCD screen, it provides accurate monitoring of the image quality of your television broadcast or narrative scene. The Atlas supports 3G-SDI, HDMI, and composite video inputs for maximum compatibility, as well as tally light indicators to indicate to your talent which camera is live.

A 178° viewing angle, 400 cd/m² of brightness, and a contrast ratio of 1000:1 allow for increased visibility at wide angles. Further visibility in bright outdoor conditions can be achieved with the included sun hood for field applications. The Atlas is housed in a hard case with a 100 x 100 VESA mount and a light stand mount built into the rear for flexible incorporation on set. A V-mount battery plate and both AC and DC power inputs allow for various power options for the monitor.

Features at a Glance
  • Three-color (green, yellow, red) tally indicator LED on the front and rear of the chassis
  • SD card slot for loading 3D LUTs for color grading consistency
  • Built-in hard case with mount for light and speaker stand
  • V-mount battery plate on the rear panel
    • Video Functions
  • Audiometer
  • Clip guides
  • False color
  • Histogram
  • Image flip
  • Pixel-to-pixel
  • RGB parade
  • Vectorscope
  • Waveform
    • UPC: 847983032822

    In the Box

    • ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")
    • Sun Hood
    • SD Card
    • Power Cable
    • Hard Case

      ikan AX20 Specs

      Display
      Panel Type LCD
      Display Size 21.5" / 54.6 cm
      Screen Area 21 x 15" / 53.3 x 38.1 cm
      Resolution 1920 x 1080
      Aspect Ratio 16:9
      Viewing Angle 178°
      Touchscreen No
      Maximum Brightness 400 cd/m2
      Contrast Ratio 1000:1
      HDR Compatibility Yes
      Pixels Per Inch (ppi) 102 ppi
      Real-Time LUT Monitoring HDR
      Image Controls False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform
      Video I/O 2 x BNC (3G-SDI) Input
      1 x HDMI Input
      1 x BNC (Composite) Input
      1 x BNC (3G-SDI) Output
      1 x HDMI Output
      HDCP Support No
      Audio I/O 2 x BNC Input
      1 x 1/8" / 3.5 mm Headphone Output
      Built-In Speaker None
      Power I/O 1 x IEC Input
      1 x XLR 4-Pin (24 VDC) Input
      Other I/O 1 x RJ45 (RS-422) Input
      1 x RJ45 (Tally) Input
      Media/Memory Card Slot Single Slot: SD/SDHC
      Wi-Fi None
      Format Support
      Video Format SDI
      1080p: 60/59.94/50/30/29.97/25/24/23.98
      1080PsF: 30/29.97/25/24/23.98
      1080i: 60/59.94/50
      720p: 60/59.94/50
      480i: 60/59.94
      576i: 50
      HDMI
      UHD 4K: 24
      DCI 4K: 30/25/24
      1080p: 60/59.94/50/30/29.97/25/24/23.98
      1080PsF: 30/29.97/25/24
      1080i: 60/59.94/50
      720p: 60/59.94/50
      576i: 50
      480i: 60
      Power
      AC Input Power 110 to 240 VAC, 50 Hz
      DC Input Power 12 to 24 VDC
      Mounting
      Mounting-Hole Pattern 100 x 100 mm
      Mounting None
      General
      Material of Construction Aluminum
      Dimensions 21 x 15 x 6" / 53.3 x 38.1 x 15.2 cm
      Weight 20 lb / 9.1 kg
      Packaging Info
      Package Weight 40 lb
      Box Dimensions (LxWxH) 26.5 x 20.75 x 14.75"

      ikan AX20 Reviews


      All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
      $3,553.97
      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")—
      $3,553.97

      More Images

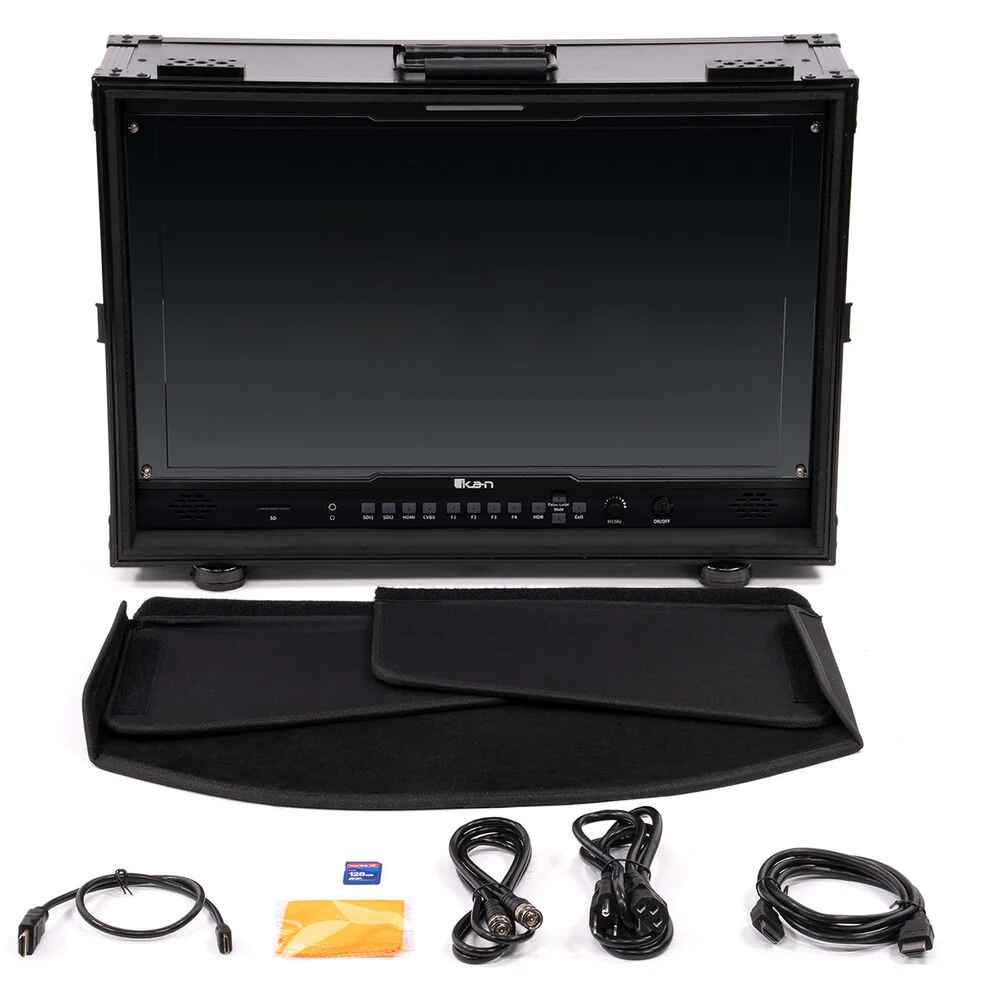

      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5") - Image 2

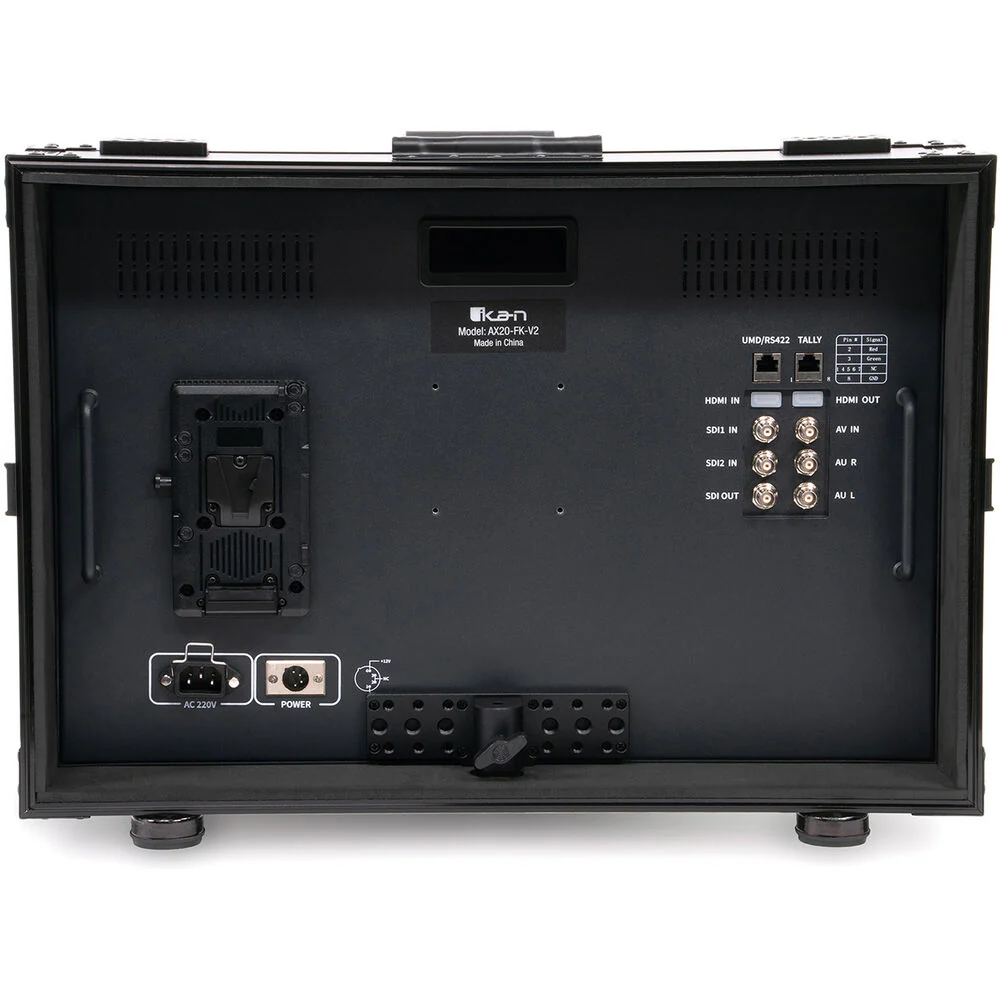

      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5") - Image 3

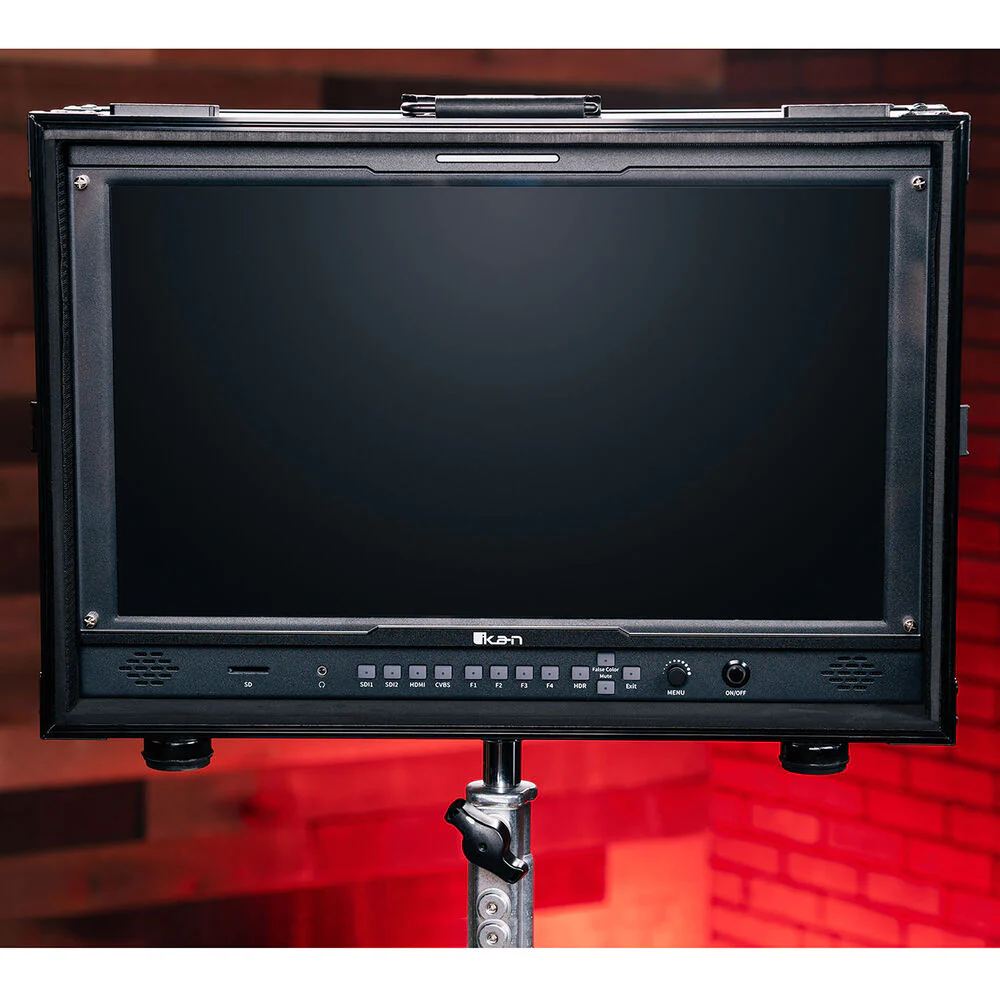

      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5") - Image 4

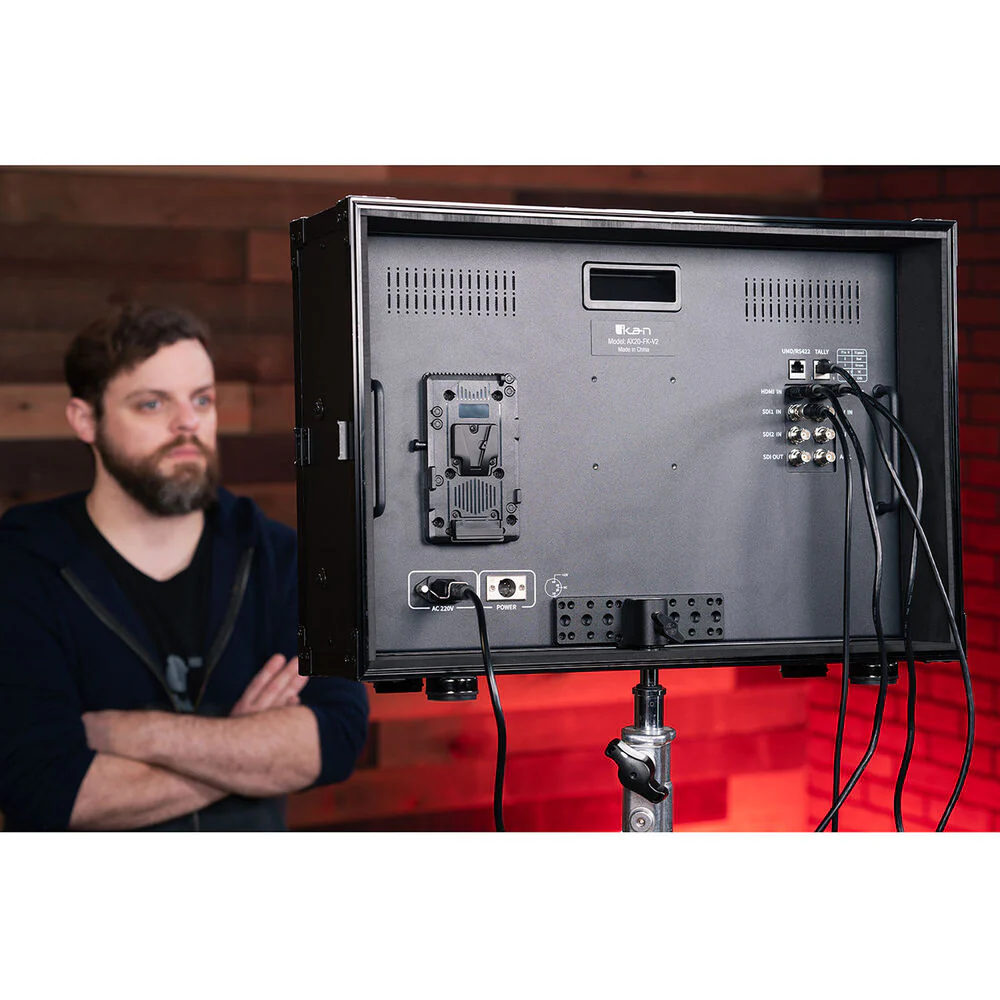

      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5") - Image 5

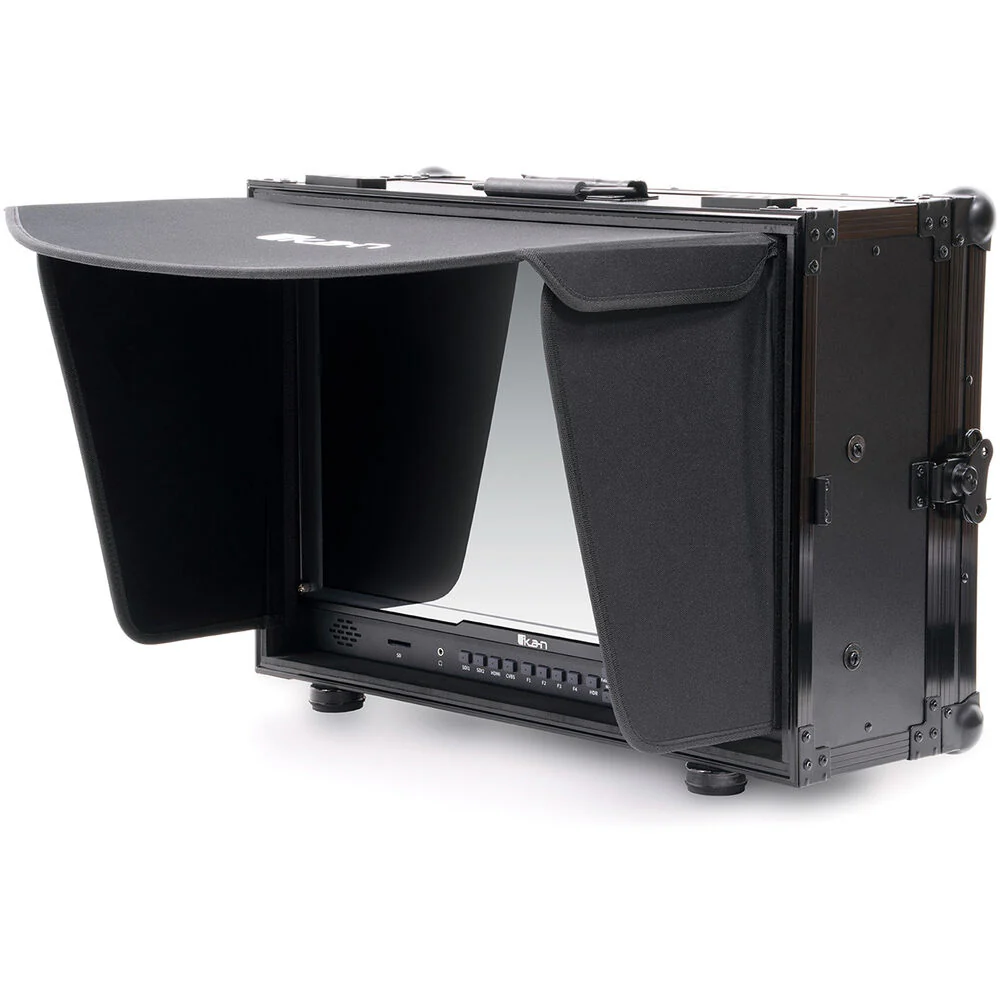

      ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5") - Image 6
