HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP
HomeStore

HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP

HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP

HPE Networking Instant On 1430 Overview

Streamline Ethernet traffic for small business applications with the Instant On 1430 26-Port Unmanaged Switch with SFP from HPE Networking. This sports 26 RJ45 Gigabit Ethernet and two Gigabit SFP ports. Providing a 56 Gbps switching capacity and up to 41.68 Mpps of throughput, the Instant On 1430 utilizes 32Mb of flash memory and a 12Mb packet buffer. A rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.

Unmanaged Ethernet Connectivity for Small Businesses
Boasting 26 RJ45 Gigabit Ethernet ports, the HPE Networking Instant On 1430 provides unmanaged Layer 2 switching for small business applications. Breeze through deployment and setup thanks to 24x7 phone support for the first 90 days and chat support for the entire limited lifetime warranty period. Community support is also included for the life of the product.
Plug-and-Play Operation
The HPE Networking Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration. Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X. Plus, a rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.
Energy Efficiency and Traffic Optimization
The HPE Networking Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity. A fanless design allows for silent operation in office settings or acoustically sensitive environments and requires less power to operate.

Quality of Service ensures the priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification. Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers. Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

Dedicated SFP Ports
Two dedicated Gigabit SFP fiber ports can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports. No configuration is required beyond installation.
UPC: 190017602639

Items Included

  • HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP
  • Power Adapter
  • Rack Mounting Hardware
  • Limited Lifetime Warranty

Additional Resources

    HPE Networking Instant On 1430 Specs

    Key Specs
    Inputs/Outputs
    26x RJ45 Gigabit Ethernet
    2x SFP Gigabit Ethernet WAN
    Stackable
    No
    Switching Bandwidth
    56 Gb/s
    Stackable
    No
    Protocols
    Layer Services Supported
    Layer 2
    Jumbo Frames Support
    9216 Bytes
    MAC Address Table Size
    8K
    Performance
    Latency
    2.9 to 5.2 µs
    Forwarding Rate
    41.68 Mpps
    Switching Bandwidth
    56 Gb/s
    Packet Buffer
    12 Mb
    Electrical
    Power Draw
    16.4 W (Max)
    8.0 W (Idle)
    Power Supply Type
    External
    General
    Certifications
    IEC/EN 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC/EN 62368-1, 2nd. & 3rd. Ed., UL 62368-1, 3rd. Ed., CAN/CSA C22.2 No. 62368-1, 3rd. Ed., IEC/EN 60825- 1:2014 Class 1, EN 55032:2015/ CISPR 32, Class A, FCC CFR 47 Part 15: 2018, Class A, ICES-003, Class A, VCCI-32, Class A, EN 55035, CISPR 35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-3-2, IEC/EN 61000-3-3
    Operating Conditions
    32 to 72°F / 0 to 40°C at 15 to 95% Humidity
    Storage Conditions
    -40 to 158°F / -40 to 70°C at 15 to 90% Humidity
    Cooling System
    Passive
    Mean Time Between Failures (MTBF)
    1.5 Million Hours
    Indicator Lights
    Yes
    Rack Mountable
    Yes 1 RU
    Dimensions
    15.28 x 8.86 x 1.73" / 38.81 x 22.5 x 4.39 cm
    Weight
    5 lb / 2.3 kg
    Packaging Info
    Package Weight
    7.295 lb
    Box Dimensions (LxWxH)
    20.2 x 13.1 x 4.4"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $419.48
    HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP—
    $419.48

    More Images

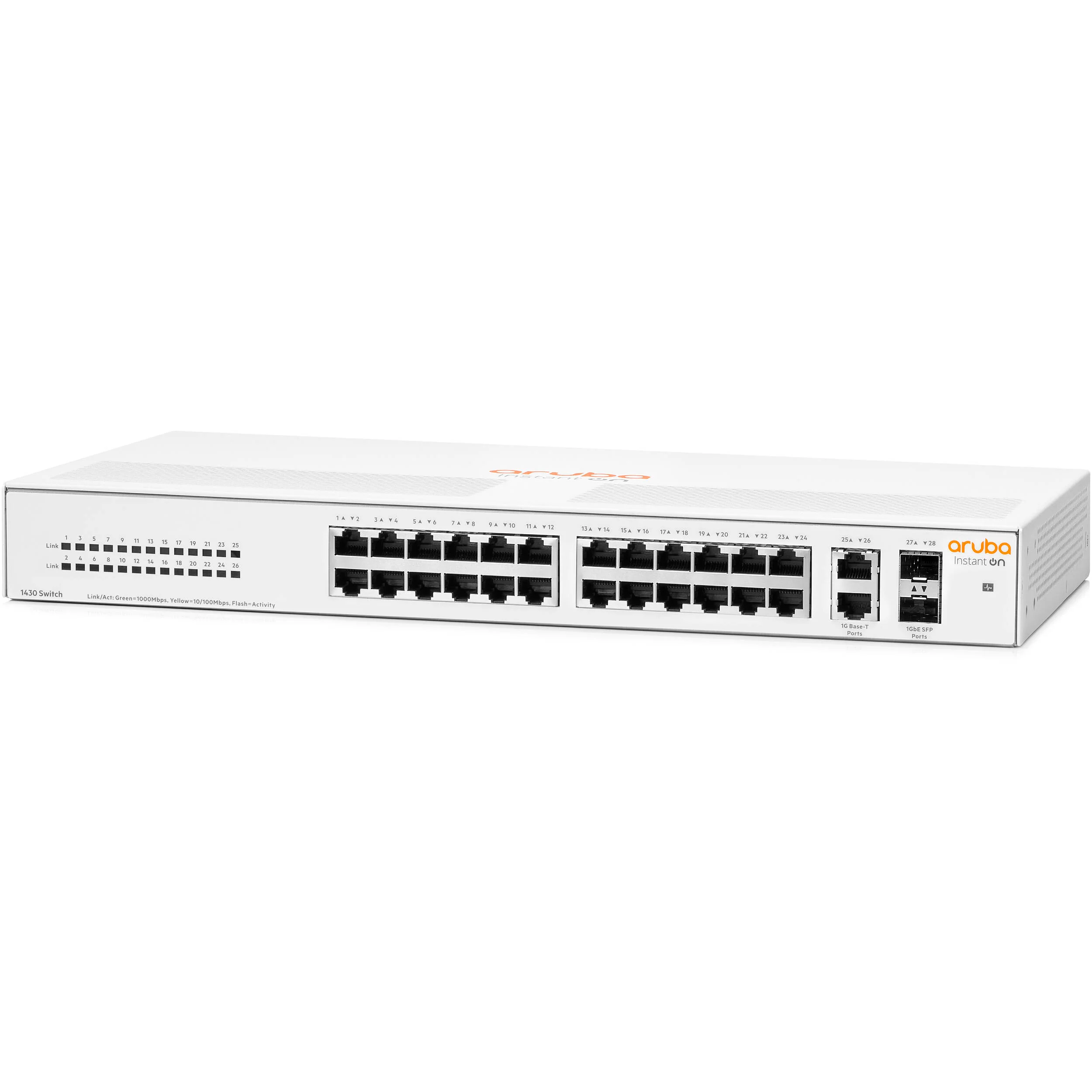

    HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP - Image 2

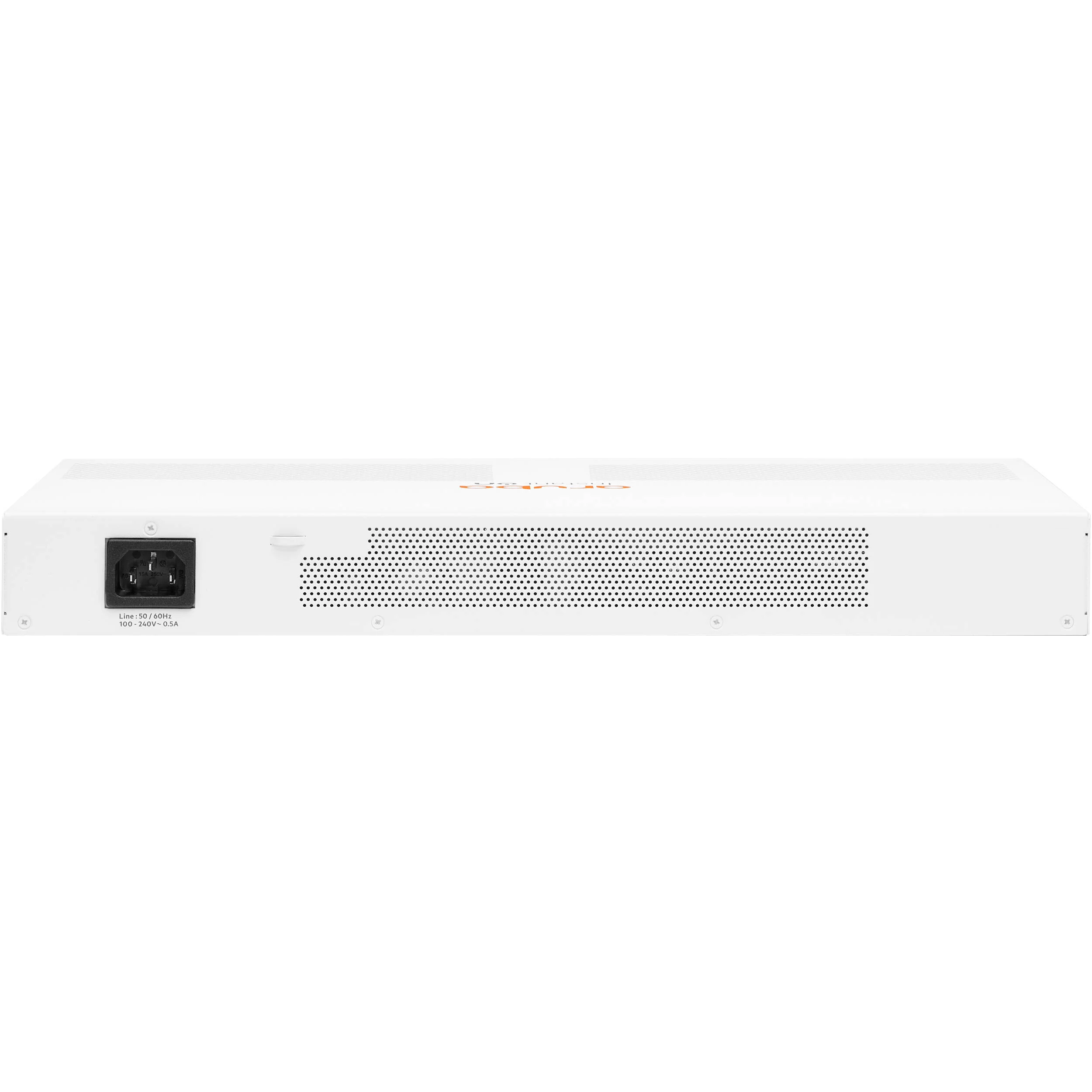

    HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP - Image 3
