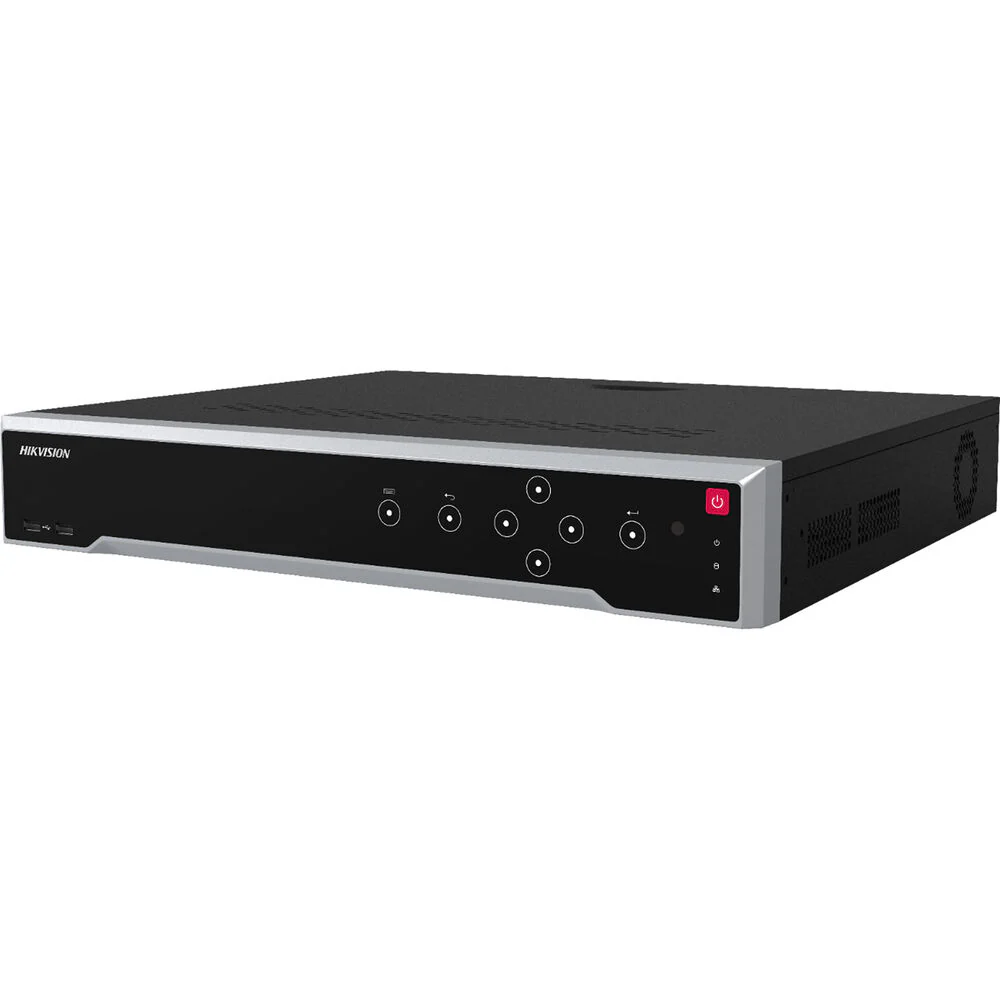

Hikvision M Series DS-7716NI-M4/16P 16-Channel 8K NVR (No HDD)
Hikvision DS-7716NI-M4/16P Overview
Record from and manage up to 16 cameras with the M Series DS-7716NI-M4/16P 16-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with four SATA ports that each support an HDD up to 14TB, for a maximum capacity of 56TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. Dual HDMI and a VGA port enable video output to an external monitor at up to 8K resolution (HDMI output only).
Recording resolution up to 32MP
Dual-stream recording saves bandwidth
HDMI video output at up to 8K resolution
Dual 4K HDMI output resolution
TLS encryption for secure transmission stream
16-channel synchronous playback
Smooth streaming technology
Hik-Connect enables seamless network management
Supports web access without plug-in
Smart & POS Functions
Supports multiple VCA (Video Content Analytics) events
Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting
POS information overlay on live view and playback
POS-triggered recording and alarm
UPC: 842571145533
In the Box
- Hikvision M Series DS-7716NI-M4/16P 16-Channel 8K NVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Hikvision DS-7716NI-M4/16P Specs
General
| Number of Channels | 16 |
| Playback Resolution | HDMI (Output 1): 7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA: 1920 x 1080 at 60 Hz Analog, NTSC: 704 x 480 |
| Recording Resolution | 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP, 24 MP, 32 MP |
| Throughput | 256 Mb/s (Incoming) 256 Mb/s (Outgoing) |
| IP Camera Support | 16 |
| Decoding Resolution | 2 Channels: 32 MP, 24 MP at 30 fps 4 Channels: 12 MP at 30 fps 8 Channels: 8 MP at 30 fps 16 Channels: 4 MP at 30 fps |
| 2-Way Audio | Yes |
Connectivity
| A/V I/O | 2 x HDMI Output 1 x VGA Output 1 x BNC CVBS Output (1 V p-p, 75 Ohm) 1 x RCA Audio Output (1 Kilohm, Linear) 1 x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication Inputs/Outputs | 16 x RJ45 10/100 Mb/s Ethernet (Rear) PoE 1 x RJ45 Gigabit Ethernet (Rear) 1 x RS-232 (Rear) 2 x RS-485 (Rear, Half-Duplex) 2 x USB-A 2.0 (Front) 1 x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) |
| Audio Inputs/Outputs | 1 Input 1 Output |
| System Connection | 1 x eSATA 4 x SATA |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | AAC, G.711A, G.711U, G.722, G.726, MP2L2 |
| Supported IEEE Standards | 802.3af, 802.3at |
Computing
| Optical Drive | None |
System
| Installed Drive | None |
| Max Capacity Supported | 14 TB (Each Drive) 56 TB (Total) |
| Number of Bays | 4 x Internal |
| RAID | None |
Software System Requirements
| OS Compatibility | Android iOS Windows macOS *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS App Name: Hik-Connect *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Notifications
| Alarm Inputs/Outputs | 16 Inputs 9 Outputs |
| Event Trigger | Alarm, Analytics |
System Functions
| Recording Modes | Alarm, Analytics |
| Dual Streaming | Yes |
| Fisheye Dewarping | None |
Electrical
| Power Consumption | 15 W (Without HDD) |
| Power Supply Type | External |
| PoE Power Budget | 200 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Built-In Display | None |
| Certifications | CE, FCC *as per Manufacturer |
| LED Indicators | Yes |
| Rack Form Factor | 1.5 RU |
| Dimensions (W x D x H) | 17.5 x 15.7 x 3.0" / 445.0 x 400.0 x 75.0 mm |
| Weight | 11 lb / 5 kg |
Packaging Info
| Package Weight | 13.395 lb |
| Box Dimensions (LxWxH) | 19.8 x 19.5 x 6.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
