Harwin M80-8890405 M80-8890405 Rectangular Connector Dual in Line Datamate L-Tek M80 4 Contacts Receptacle 2 mm Crimp Row

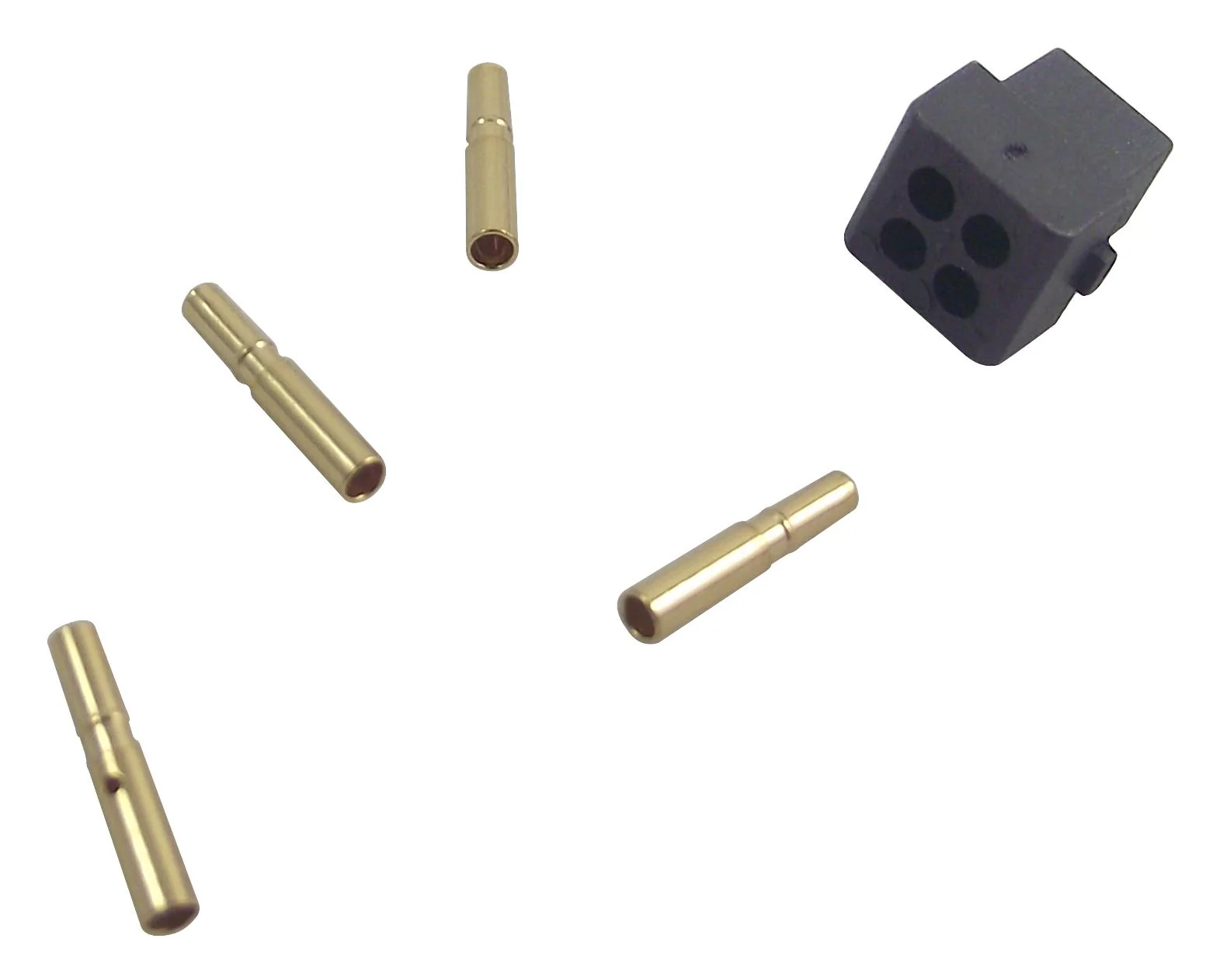

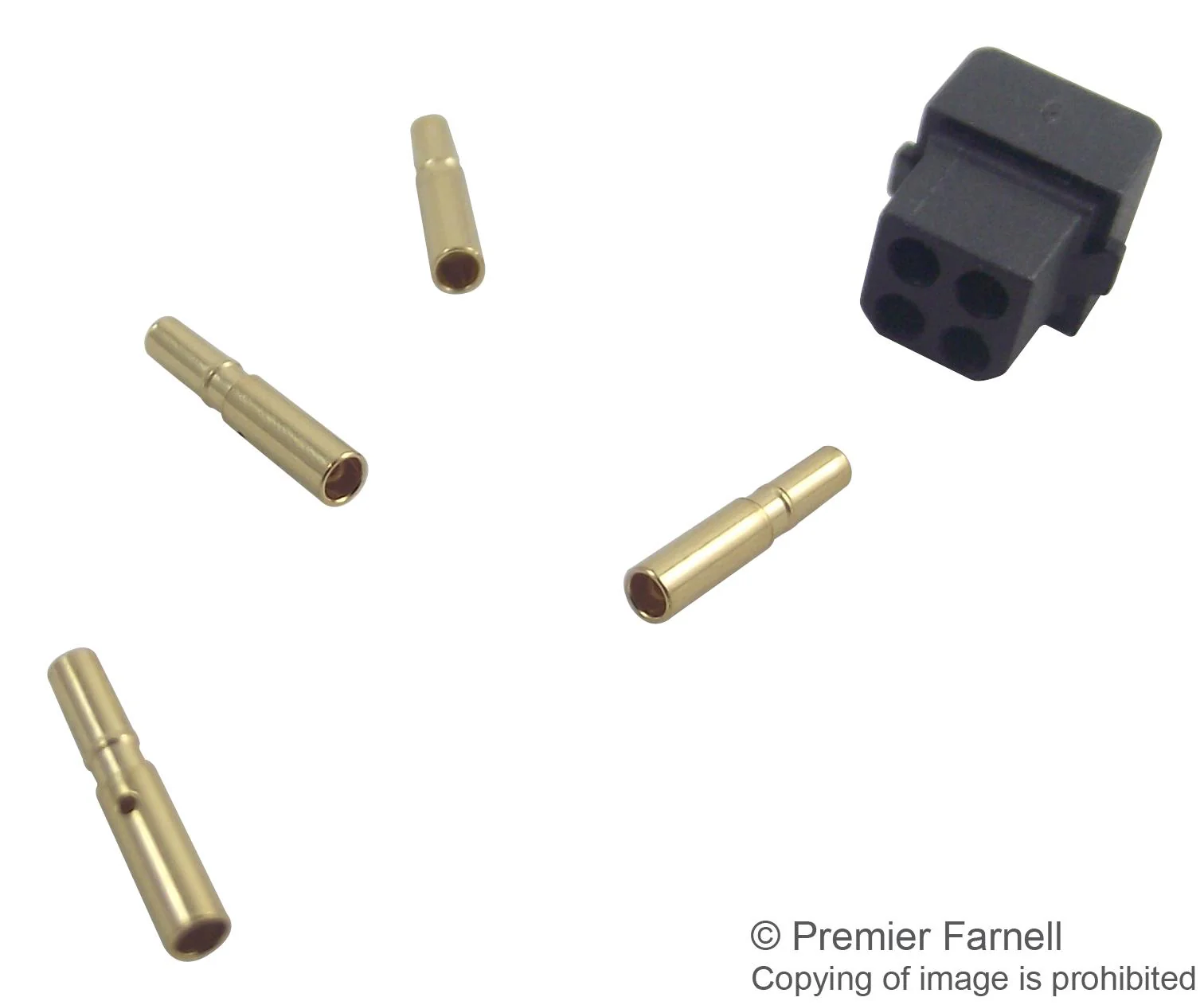

The M80-8890405 is a 4-contact 2mm female Datamate L-Tek DIL Cable Connector Kit with housing and contacts. Large bore is suitable for 22AWG cable (�1.1mm max insulation), M80-0110005 spare contacts. Housing is made of black UL94V-0 PBT with gold plated beryllium copper contact clip/brass shell contact base and gold plated termination. The M80 series socket has straight connector orientation and cable (crimp) connection type. It is suitable for �0.5mm mating pin size. The connector is intended for use as a low voltage connector in high packing density electronic equipment.

• 3A (at 25°C), 2.2A (at 85°C) Current rating
• 120VAC/DC Working voltage
• 20mR (initial), 25mR (after conditioning) Maximum contact resistance
• 1000MR (initial), 100MR (after conditioning) Minimum insulation resistance
• 500 operations Durability

Applications

Industrial

Other details

Brand	HARWIN
Part Number	M80-8890405
Quantity	Each
Drawing EN
3D Product Image EN
Manufacturer Catalogue EN
