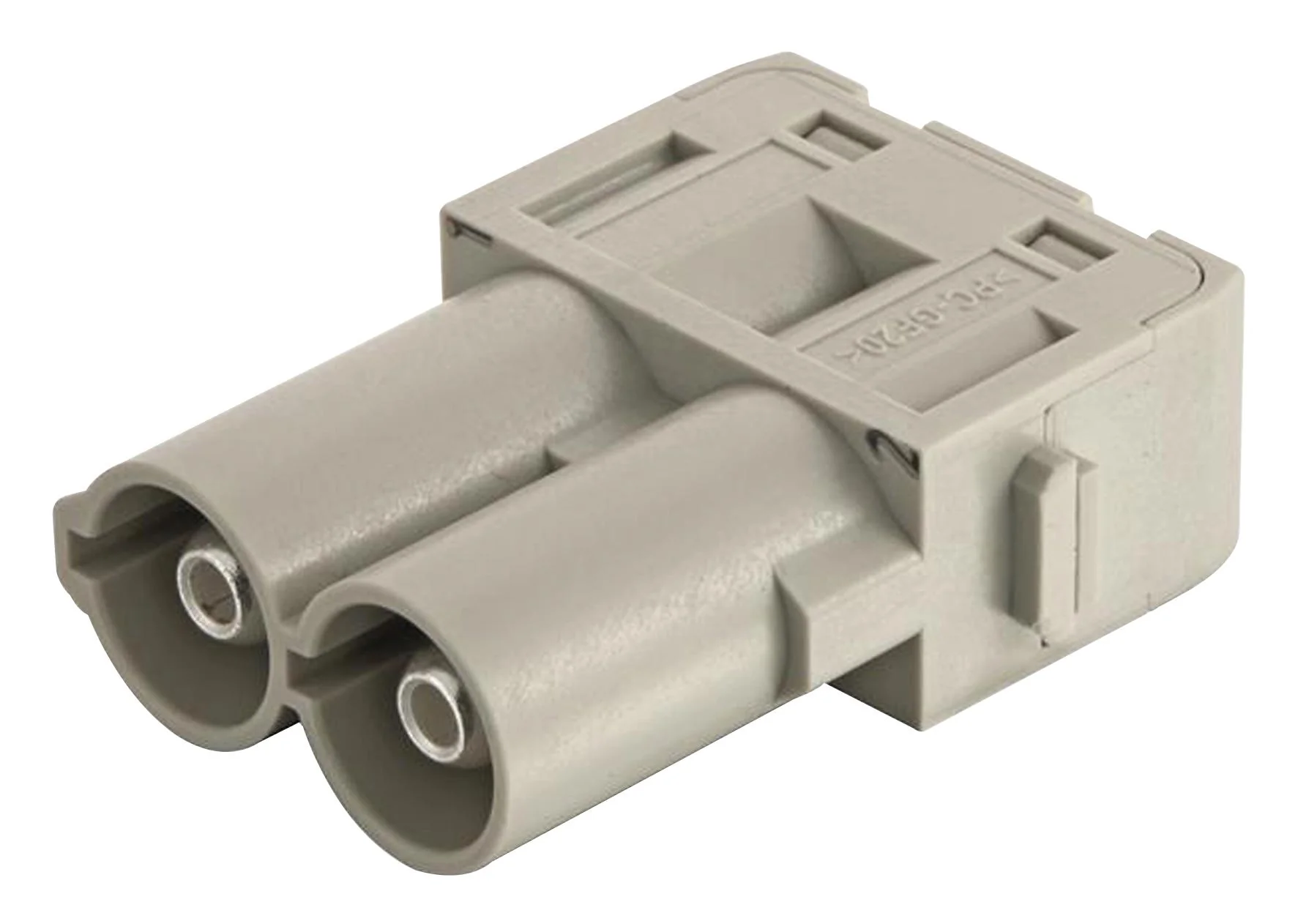

Harting 09140022646 Heavy Duty Connector Han-Modular Insert 2 Contacts Plug Screw Pin
- Han® 70 A module type
- 2 contact, axial screw termination
- 6 to 16mm² conductor cross-section
- Voltage rating is 1000V, current rating is 70A
- Contact resistance is <=0.5mohm
- Limiting temperature range from -40°C to +125°C
- Stripping length range from 11 to 12mm
- Mating cycles is >= 500
- Tightening torque is 2Nm at 6mm², 3Nm at 10mm², 4Nm at 16mm², 4Nm at 14mm²
- RAL 7032 (pebble grey) polycarbonate insert, silver plated copper alloy contacts
Other details
| Brand | HARTING |
| Part Number | 09140022646 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
