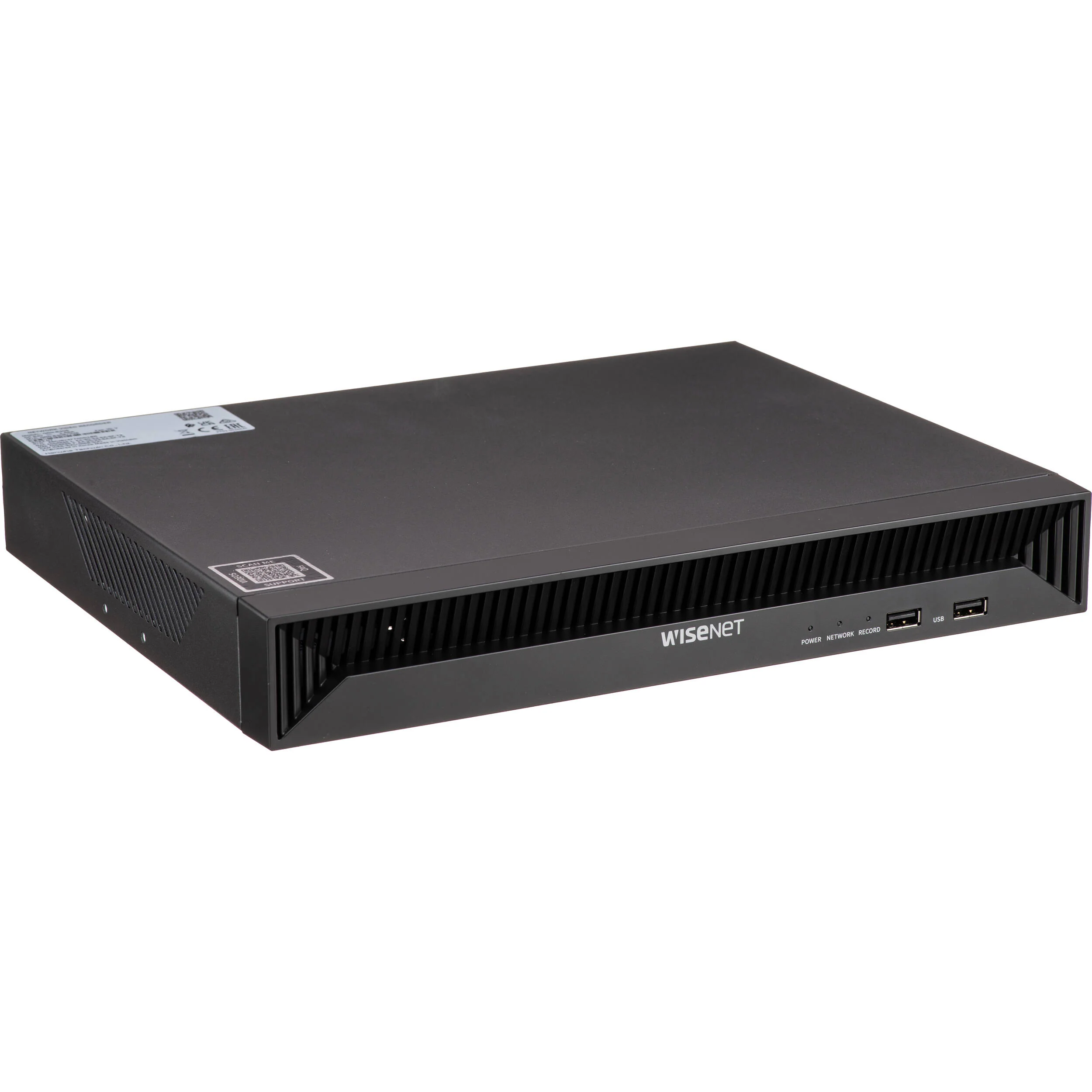

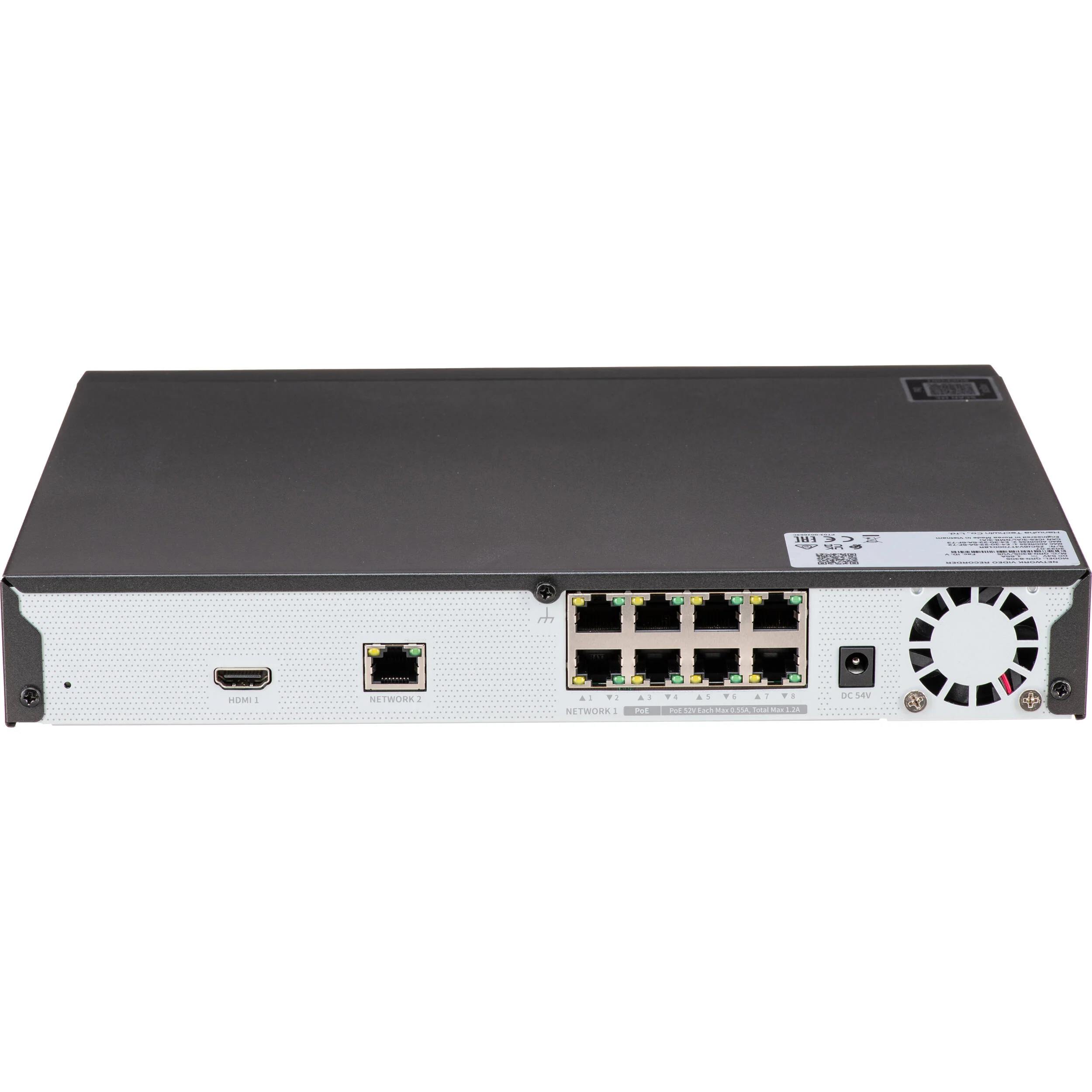

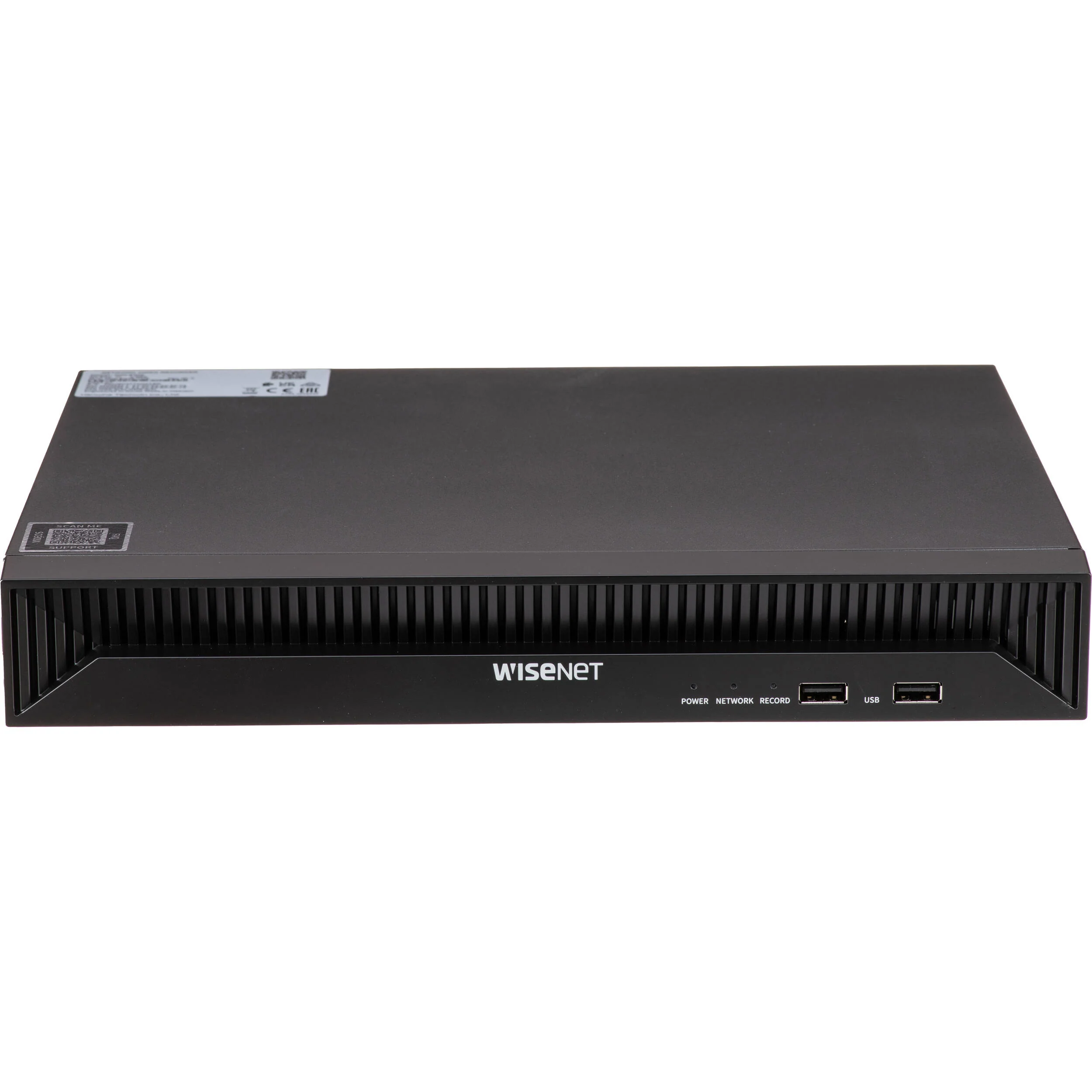

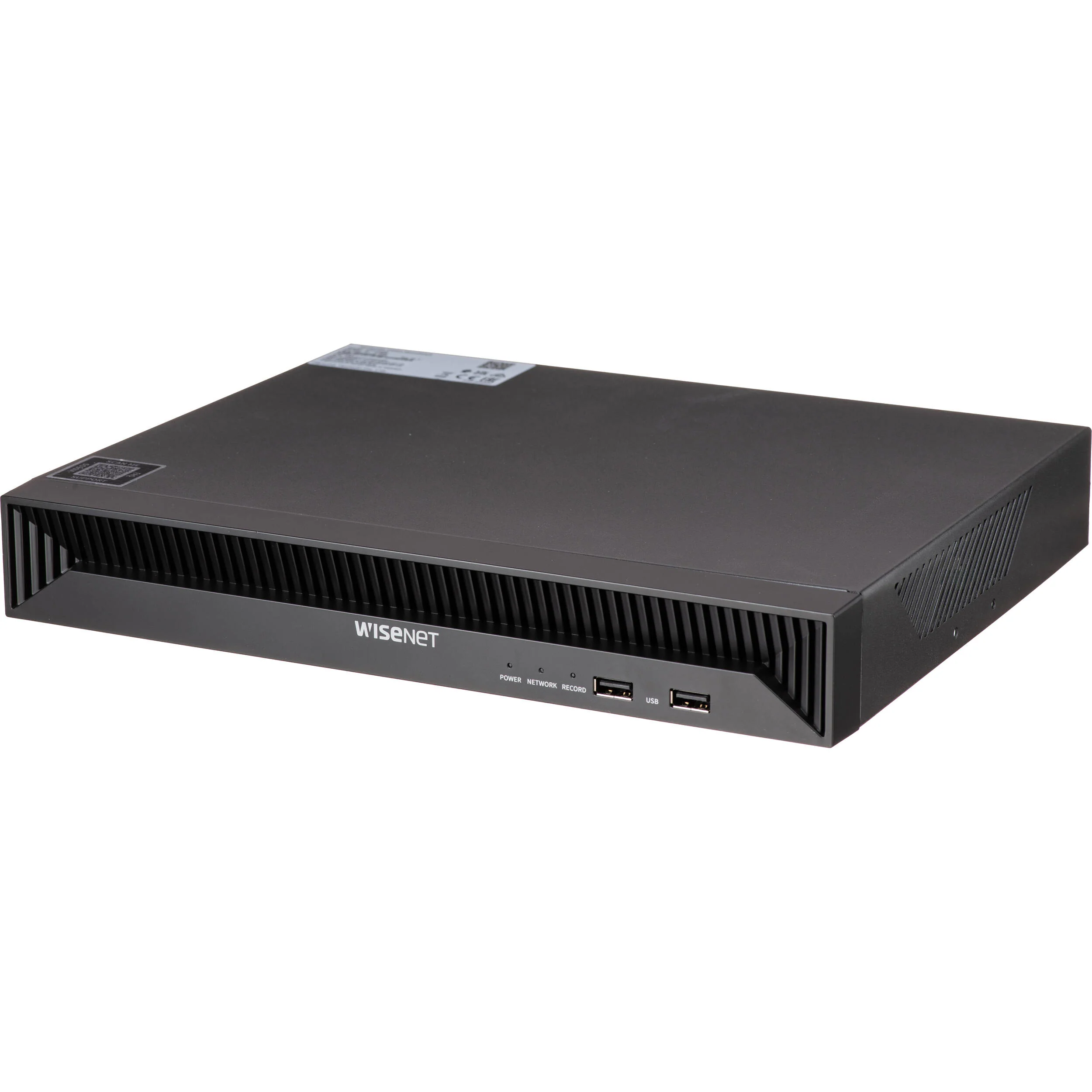

Hanwha Vision QRN-830S 8-Channel 8MP NVR (2TB HDD)
Hanwha Vision QRN-830S Overview
Record from and manage up to eight cameras with the QRN-830S 8-Channel 8MP NVR from Hanwha Techwin. This NVR supports IP cameras up to 8MP. It is equipped with a SATA port that supports up to a 6TB HDD. This present configuration features a 2TB HDD preinstalled. H.265, H.264, and MJPEG video codecs keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. An HDMI port enables video output to an external monitor (available separately) at up to UHD 4K resolution. Compliance with ONVIF profile S enables interoperability with ONVIF IP cameras.
Embedded Linux OS
Recording resolution up to 8MP
SATA port supporting up to 6TB of storage
UHD 4K HDMI video output
Two-way audio
Eight plug-and-play PoE ports
PTZ control
Fisheye dewarping
Supports ARB and failover for redundancy
Compatible with WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, and CGI (SUNAPI) support for integration with third-party VMS
P2P service (QR code) for easy connection/configuration with Wisenet mobile app
UPC: 849688019962
In the Box
- Hanwha Vision QRN-830S 8-Channel 8MP NVR (2TB HDD)
Hanwha Vision QRN-830S Specs
Key Specs
| Number of Channels |
8
|
| Playback Resolution |
HDMI:
8 MP |
| Recording Resolution |
8 MP
|
| PTZ Support |
Yes
|
| Throughput |
80 Mb/s (Recording)
32 Mb/s (Playback) 80 Mb/s (Networking) |
| A/V I/O |
1 x HDMI
|
| Communication Inputs/Outputs |
8 x RJ45 10/100 Mb/s Ethernet PoE
1 x RJ45 Gigabit Ethernet 2 x USB-A 2.0 |
| Installed Drive |
2 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Wisenet Mobile *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| PoE Power Budget |
65 W
|
General
| Number of Channels |
8
|
| Playback Resolution |
HDMI:
8 MP |
| Recording Resolution |
8 MP
|
| PTZ Support |
Yes
|
| Throughput |
80 Mb/s (Recording)
32 Mb/s (Playback) 80 Mb/s (Networking) |
| IP Camera Support |
8
|
| Decoding Resolution |
8 MP at 60 fps
1080p, 720p, D1 at 240 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1 x HDMI
|
| Communication Inputs/Outputs |
8 x RJ45 10/100 Mb/s Ethernet PoE
1 x RJ45 Gigabit Ethernet 2 x USB-A 2.0 |
| Audio Inputs/Outputs |
8 (Network)
|
| System Connection |
1 x SATA
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Remote Connections |
3 (Search)
10 (Unicast) 20 (Multicast) |
| Maximum User Access |
4
|
| Network Protocols |
ARP, DDNS, DHCP, DNS, HTTP, HTTPS, ICMP, IGMP, IP Filter, IPv4, IPv6, NTP, ONVIF, P2P, RTP, RTSP, SMTP, SNMP, SUNAPI, TCP/IP, UDP, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.265, MJPEG
|
| Supported Audio Codecs |
AAC, G.711, G.726
|
| Backup Formats |
AVI, BU, EXE, JPG
|
| Backup Method |
Network
|
| Supported IEEE Standards |
802.1x
|
| Supported Languages |
Croatian
Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Serbian Simplified Chinese Spanish Swedish Thai Turkish Vietnamese |
Computing
| Installed Operating System |
Embedded Linux
|
System
| Installed Drive |
2 TB Hard Drive
|
| Max Capacity Supported |
6 TB (Total)
|
| Number of Bays |
1 x Internal
|
Software System Requirements
| OS Compatibility |
Linux Windows 10 macOS 11 *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Wisenet Mobile *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Web Browser Support |
Chrome, Edge, Safari
|
Notifications
| Alarm Inputs/Outputs |
1 Input
1 Output |
| Event Trigger |
Alarm, Analytics, Camera Event, Defocus, Motion, Sound, Video Loss
|
| Notification Type |
Buzzer, Email
|
System Functions
| Search Modes |
Calendar, Date/Time, Event, Smart Search, Text
|
| Recording Modes |
Continuous, Dual Track, Event, Normal, Schedule
|
| Dual Streaming |
Yes
|
| Multi-Screen Configuration |
1, 2H, 2V, 3V, 4, 6, 8, 9 (Web)
|
| Fisheye Dewarping |
Yes
|
| Relay Outputs |
No
|
Electrical
| Power Consumption |
84 W
|
| Power Supply Type |
External
|
| PoE Power Budget |
65 W
|
| DC Input Power |
54 VDC at 1.55 A
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 85%
|
Physical
| Built-In Display |
No
|
| Certifications |
FCC, cUL, CE, EAC, NDAA
|
| LED Indicators |
Yes
|
| Material of Construction |
Metal
|
| Dimensions (W x D x H) |
11.8 x 9.4 x 1.9" / 300.0 x 238.9 x 47.6 mm
|
| Weight |
2.91 lb / 1.32 kg
|
Packaging Info
| Package Weight |
6.465 lb
|
| Box Dimensions (LxWxH) |
18.3 x 12.4 x 3.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
