Gossen Mavospec Base Overview
Accurately measure the quality of your lights with this MAVOSPEC BASE Industrial Light Meter from Gossen. This spectrometer uses incident metering to measure light from 10-100,000 lux as well as in the visible light spectrum of 380-780nm. Also, it works with a variety of different types of lighting, including LEDs, fluorescent lights, halogen lamps, and natural daylight. It offers a variety of measurement options as well, including CRI, CCT, peak wavelength, color purity Duv, chromaticity, and flicker measurement. This meter even supports the TM-30-15 color rendering measurement of Rf and Rg as established by IES. The device is optimized for one-handed operation and has a 2.1" color 320 x 240 TFT display for viewing and changing settings. It can save readings to an included 4GB microSD card using a CSV format and runs on a rechargeable lithium-ion battery pack. Additionally, it has a USB port for firmware updates.
Supports TM-30-15 color rendering measurement method as established by the North American Illuminating Engineering Society (IES), which delivers more accurate measurement of both color fidelity and color saturation values
Measuring range of 10-100,000 lux
Spectral power distribution measurements of light between 380-780nm with the ability to determine peak and dominant wavelengths

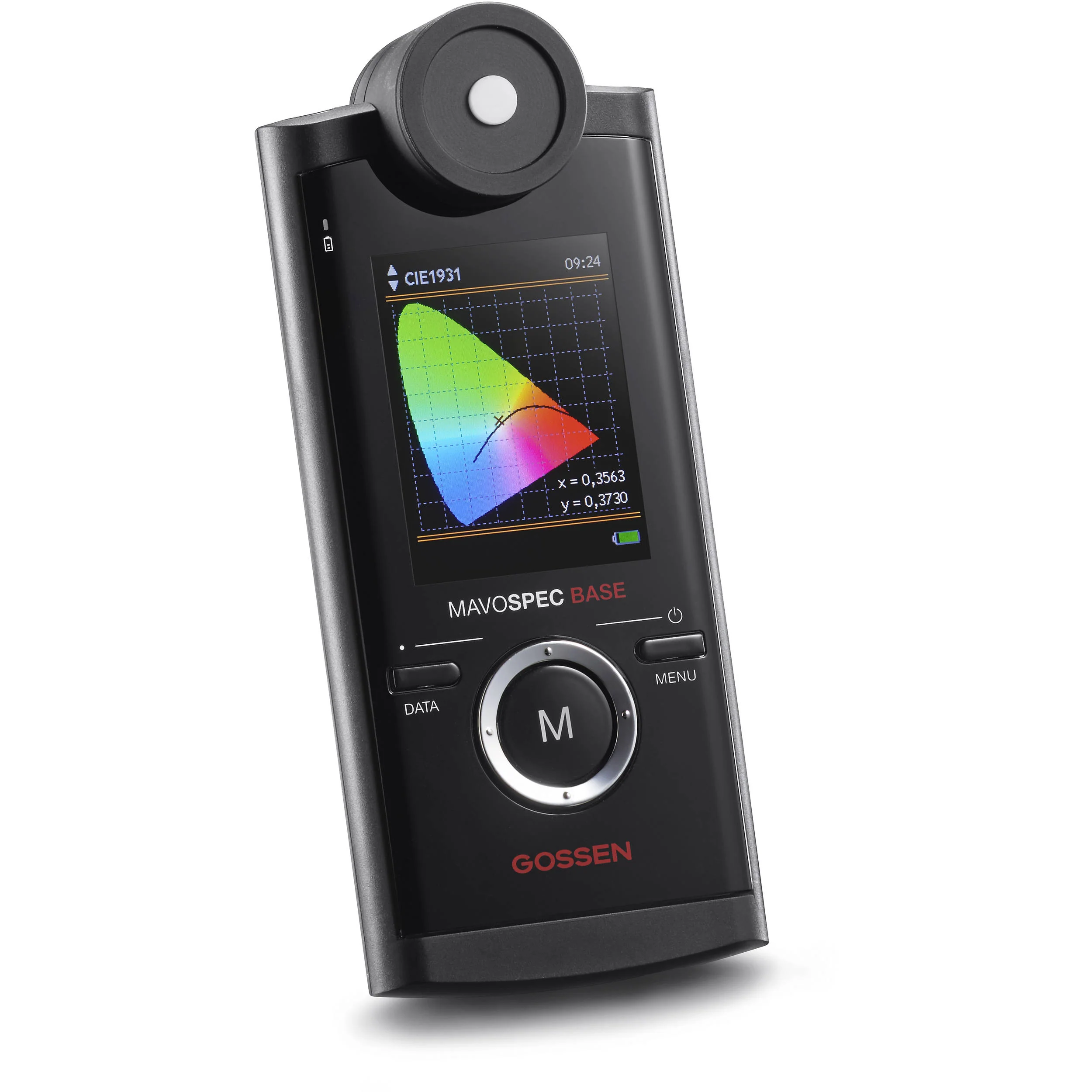

Measures chromaticity and color coordinates with CIE 1931 [x,y], CIE 1960 [u,v], and CIE 1976 [u',v'] and display of the CIE standard color table

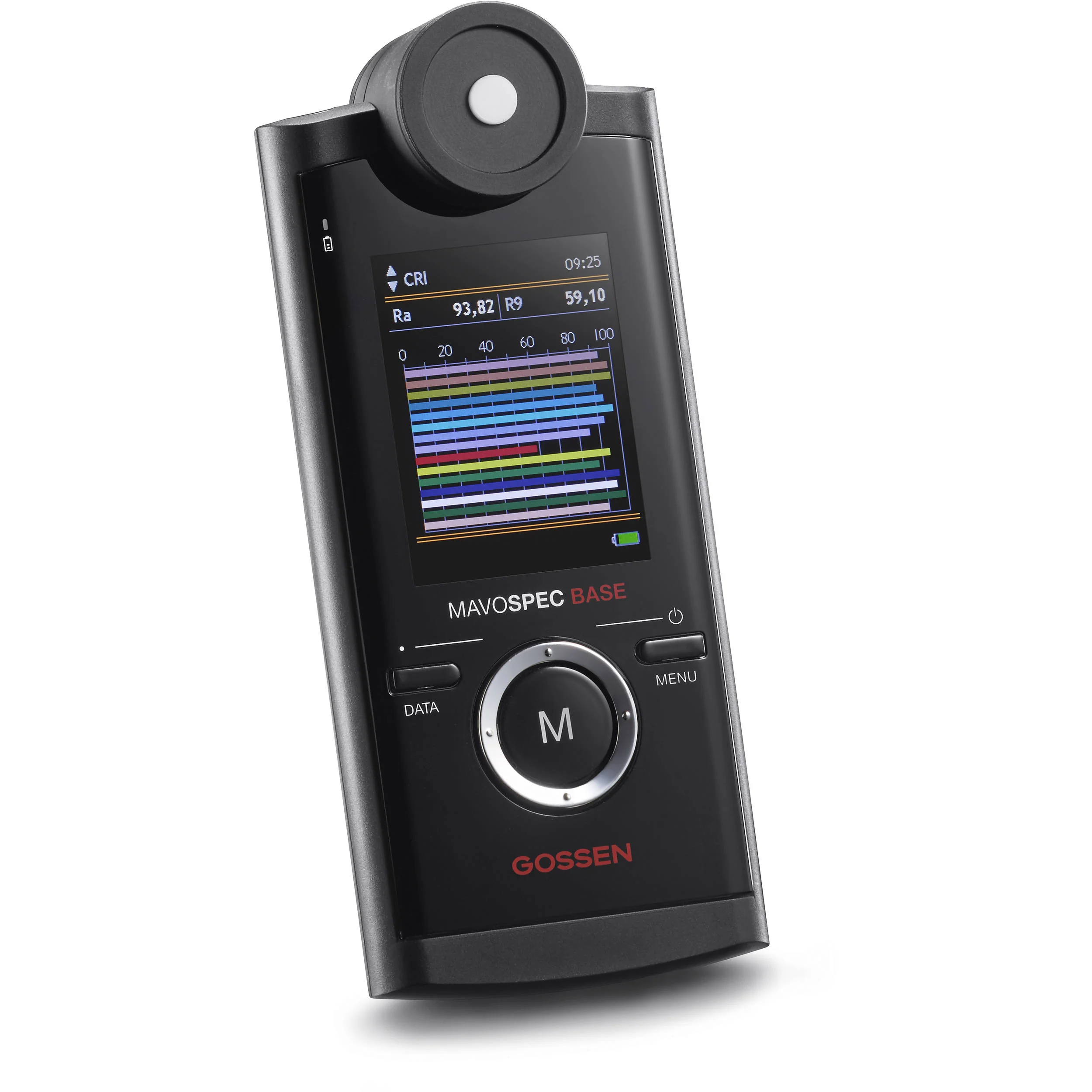

Can measure correlated color temperature as well as color rendering index Ra, as well as R1 through R15 values
Can measure flicker as an index, percentage, and frequency
Temperature sensor will help compensate for measurement changes throughout a wide temperature range
One-handed operation is made easy with a ring controller and keys alongside a 2.1" color TFT display
USB port for data transfer from the included 4GB microSD card as well as for future firmware updates
Can run for 8 hours continuously on a single charged battery or from an AC adapter.
In the Box
- Gossen MAVOSPEC BASE Industrial Light Meter
- Rechargeable Battery
- 4GB microSD Card
- USB Cable
- Aluminum Case
- Wallet
- Power Pack
- Carrying Strap
Gossen Mavospec Base Specs
Metering
| Light Reading Method |
Incident |
| Measuring Range |
10 to 100,000 Lux / 0.9 to 9290 fc |
| Spectral Wavelength Range |
380 to 780 nm |
Physical
| Receptor Element |
CMOS |
| Display |
2.1" / 5.3 cm Color LCD |
| System Connection |
USB 2.0 Port |
| Media Card Reader |
1 x microSD (Unspecified Type) |
| Tripod Mounting Thread |
None |
General
| Battery |
1 x Rechargeable |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.15 A |
| Wireless Connectivity |
None |
| Dimensions |
5.5 x 2.4 x 1.2" / 139 x 60 x 30 mm |
| Weight |
7.0 oz / 200.0 g |
Packaging Info
| Package Weight |
3.68 lb |
| Box Dimensions (LxWxH) |
12.55 x 11.55 x 4.5" |
