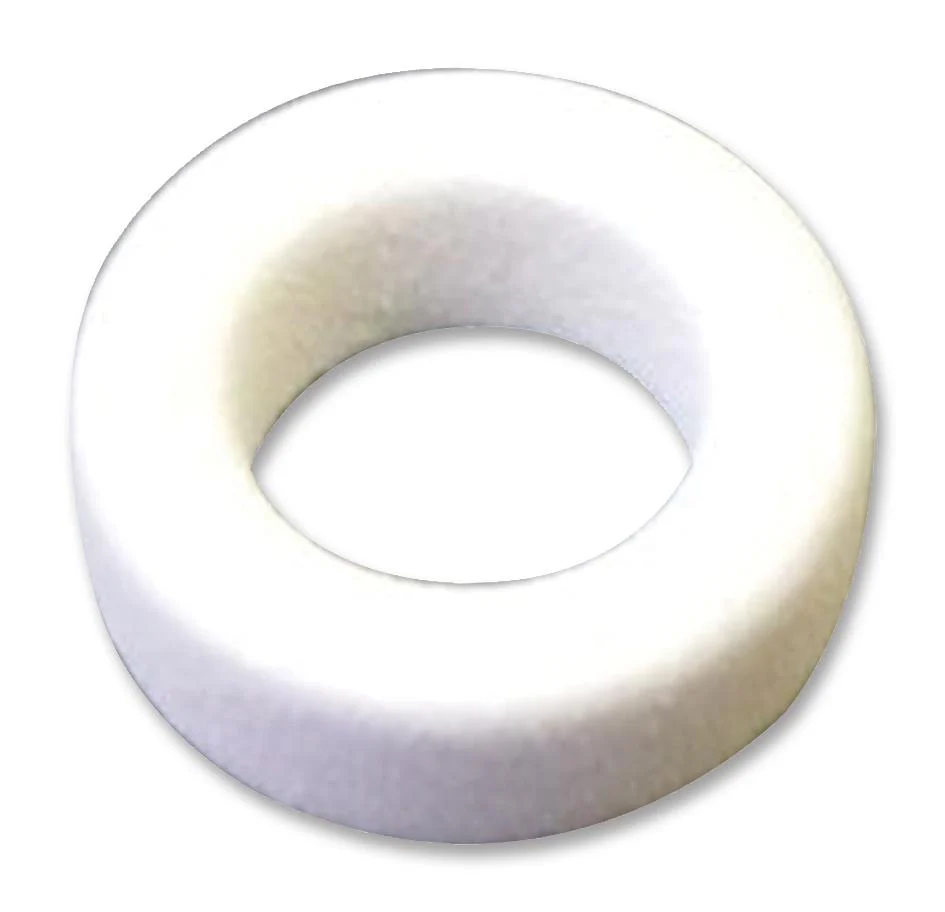

Ferroxcube TX63/38/25-3E25 Transformer Cores Toroid TX63 3E25 152 mm 306 mm²
The Ferrite Toroids from Ferroxcube are ring shape cores. This toroid is the optimal shape for magnetic induction, due to its perfectly closed magnetic circuit and homogenous cross section achieves highest inductance per turn (AL factor). The core shape is specially suitable for common mode chokes, transformers, baluns and other applications where high inductance is required. Coating on the core provides breakdown voltage protection depending on core size and ferrite material.
- Available in range of sizes from 2.5mm to 152mm
- Smooth and soft chamfered edges optimal for winding without damaging the wire isolation
- Epoxy, nylon or parylene C, lacquer coating
- Energy storage performance can be optimized by gapping the core
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Product details
| Core Type | Toroid |
| Core Size | TX63 |
| For Use With | - |
| Core Material Grade | 3E25 |
| Effective Magnetic Path Length | 152mm |
| Ae Effective Cross Section Area | 306mm² |
| Inductance Factor Al | 13.9µH |
| Product Range | - |
Other details
| Brand | FERROXCUBE |
| Part Number | TX63/38/25-3E25 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$31.40
