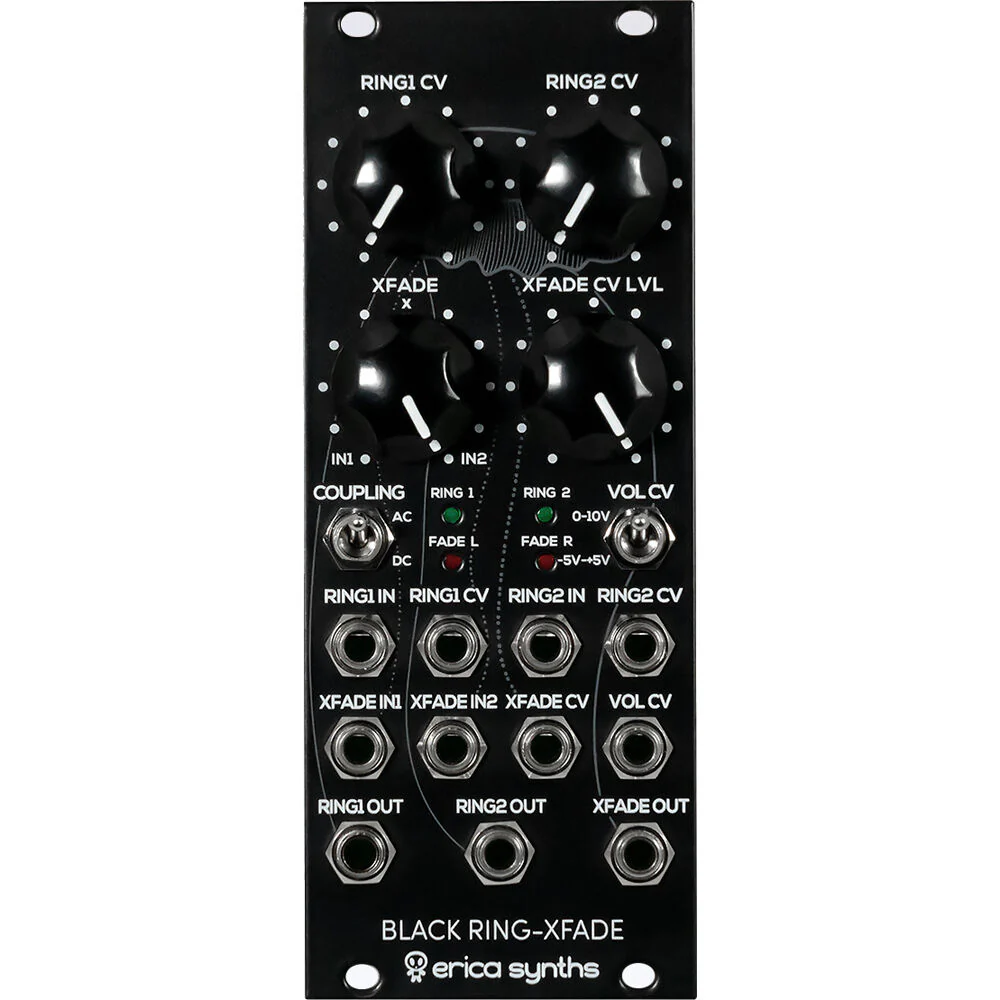

Erica Synths Black Ring-Xfade Eurorack Module (10 HP)
Erica Synths Ring-Xfade Overview
Modular synthesizer enthusiasts looking for an extremely versatile sound shaping tool will be impressed with the erica synths Black Ring-Xfade, a Eurorack module with two unconventional ringmodulators/waveshapers, a crossfader that works with both audio and CV, and a VCA.
Unlike conventional ringmodulator that work only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes the signal through without alteration�if no carrier is present, low-level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or for external signals) topped off with the VCA, and you have an amplitude modulation powerhouse for your modular system. The module includes a power ribbon cable and a set of mounting screws.
- Dual ringmodulator / waveshaper
- Carrier-level adjustment
- Voltage controlled crossfader
- Manual and CV control over cross-fade
- Selectable AC (audio) or DC (control voltage) coupling
- VCA with selectable bias
- Power consumption: +38mA / -32mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths Black Ring-Xfade Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths Ring-Xfade Specs
| Sound Generation |
Analog
|
| Audio I/O |
4 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
3 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| CV/Gate I/O |
4 x 1/8" / 3.5 mm TS Modulation CV Input
|
| Eurorack Current Consumption |
38 mA on +12 V Rail
32 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
1 x VCA
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
4 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
3 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4 x 1/8" / 3.5 mm TS Modulation CV Input
|
| Control Voltage Level |
±5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
| Maximum Input Level |
+10 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
38 mA on +12 V Rail
32 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.39 lb
|
| Box Dimensions (LxWxH) |
7.8 x 4.15 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
