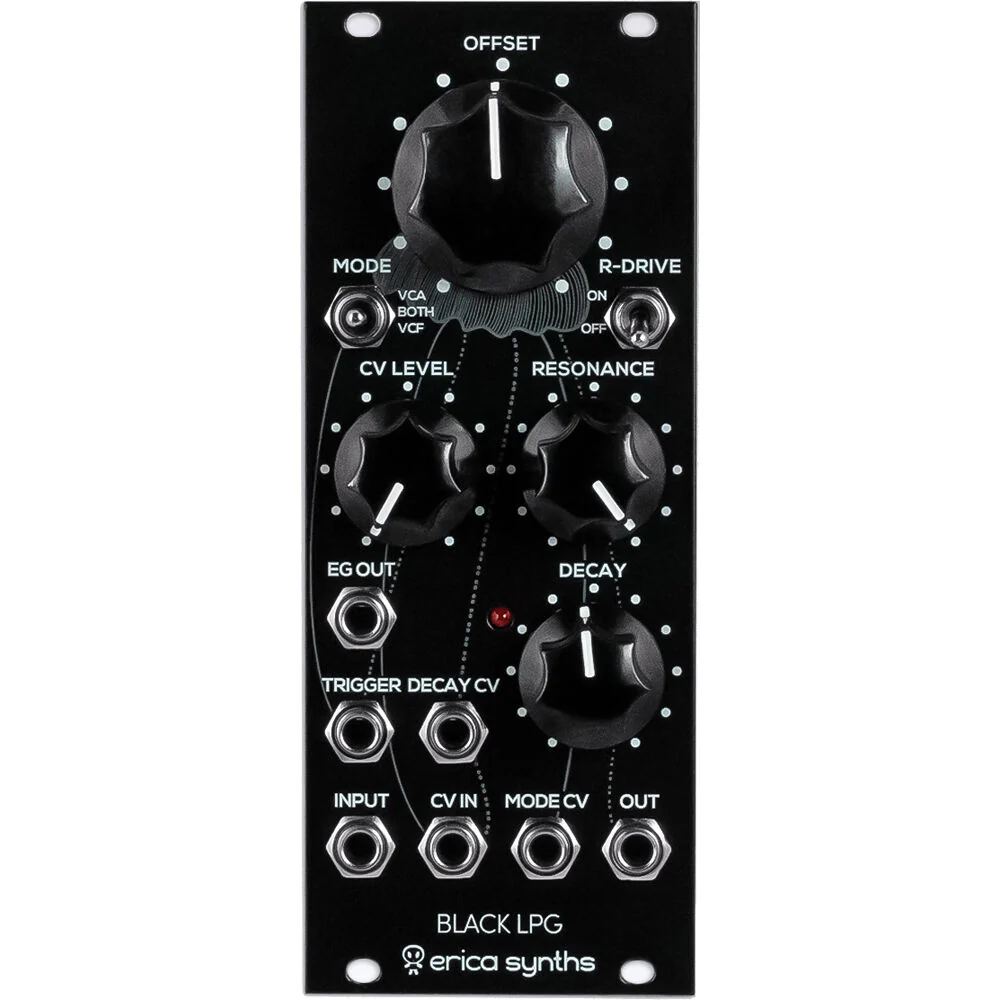

Erica Synths Black LPG Low-Pass Gate Eurorack Module (10 HP)
Erica Synths LPG Overview
Modular synthesizer enthusiasts in search of versatile sound-shaping processor will be impressed with the erica synths Black LPG, a low-pass gate circuit inspired by the original Buchla design, that combines a 2nd order low-pass VCF with a VCA with a distinctive resonance circuit on top. Voltage control over VCF cutoff frequency, VCA offset, and mode (VCF / VCF+VCA / VCA), as well as built in decay envelope generator makes it a versatile module for sound shaping in any modular setup. The module includes a power ribbon cable and a set of mounting screws.
- Three vactrols for 2nd order VCF
- VCF/VCF+VCA/VCA modes
- Manual and voltage-controlled cutoff/offset
- Manual and voltage-controlled mode selection
- Manual resonance depth control
- Resonance overdrive switch
- Built in decay envelope generator
- Manually and voltage-controlled decay time
- Envelope CV output
- Skiff-friendly design
- Power consumption: +44mA / -45mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths Black LPG Low-Pass Gate Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths LPG Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm TS Trigger Input
3x 1/8" / 3.5 mm TS CV Input 1x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
No
|
| Eurorack Current Consumption |
44 mA on +12 V Rail
45 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
1x VCA
|
| Envelopes |
1x VCF/Assignable Envelope Generator: Decay
|
| Filters |
Number of Filters: 1
Characteristic: Analog Type: Low-Pass Gate Slope: 2-Pole/12 dB (LPF) Controls: Cutoff, Resonance, Drive |
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
1x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm TS Trigger Input
3x 1/8" / 3.5 mm TS CV Input 1x 1/8" / 3.5 mm TS CV Output |
| Control Voltage Level |
Modulation CV In: -5 to +5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
10 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
44 mA on +12 V Rail
45 mA on -12 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.46 lb
|
| Box Dimensions (LxWxH) |
7.8 x 4.15 x 2.55"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
