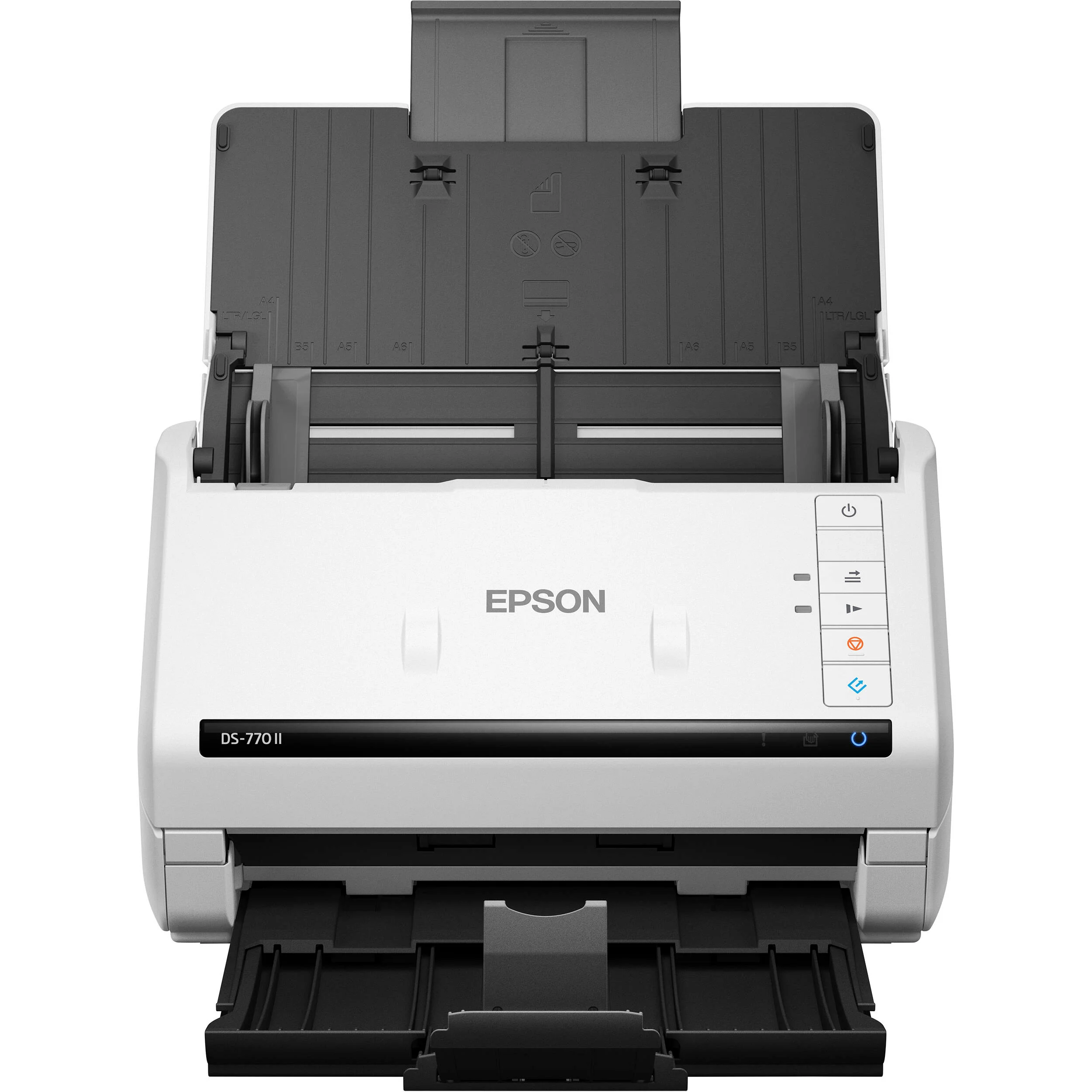

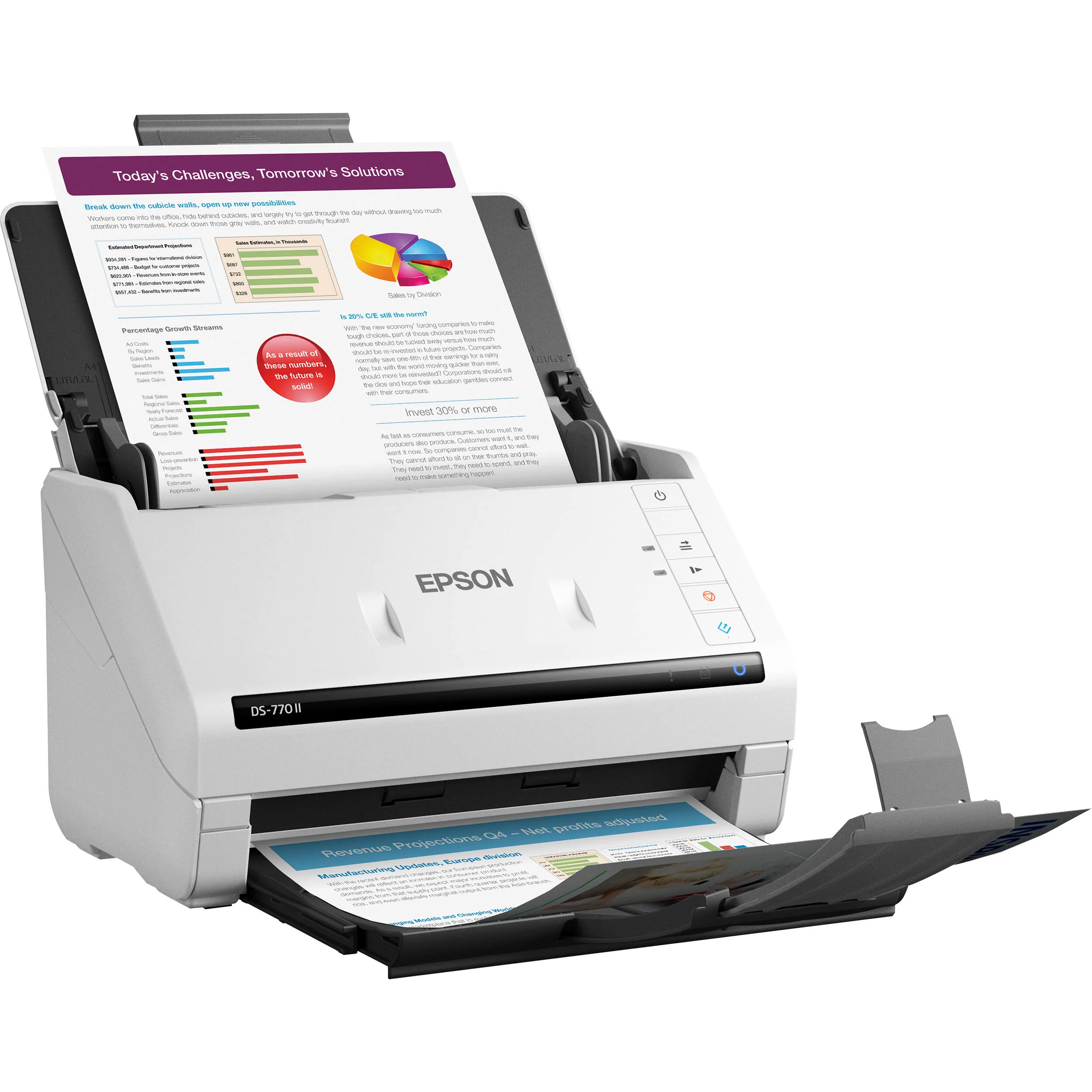

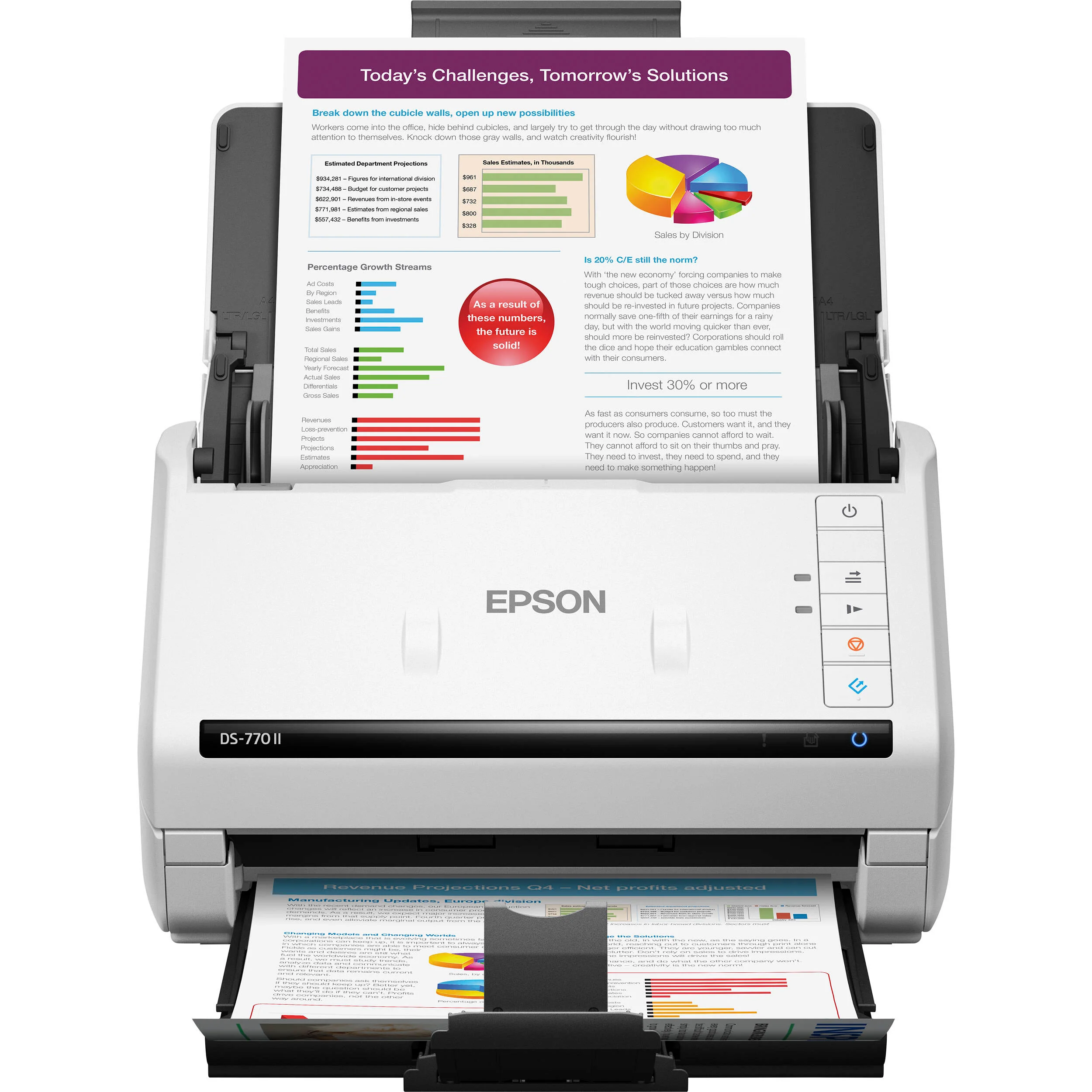

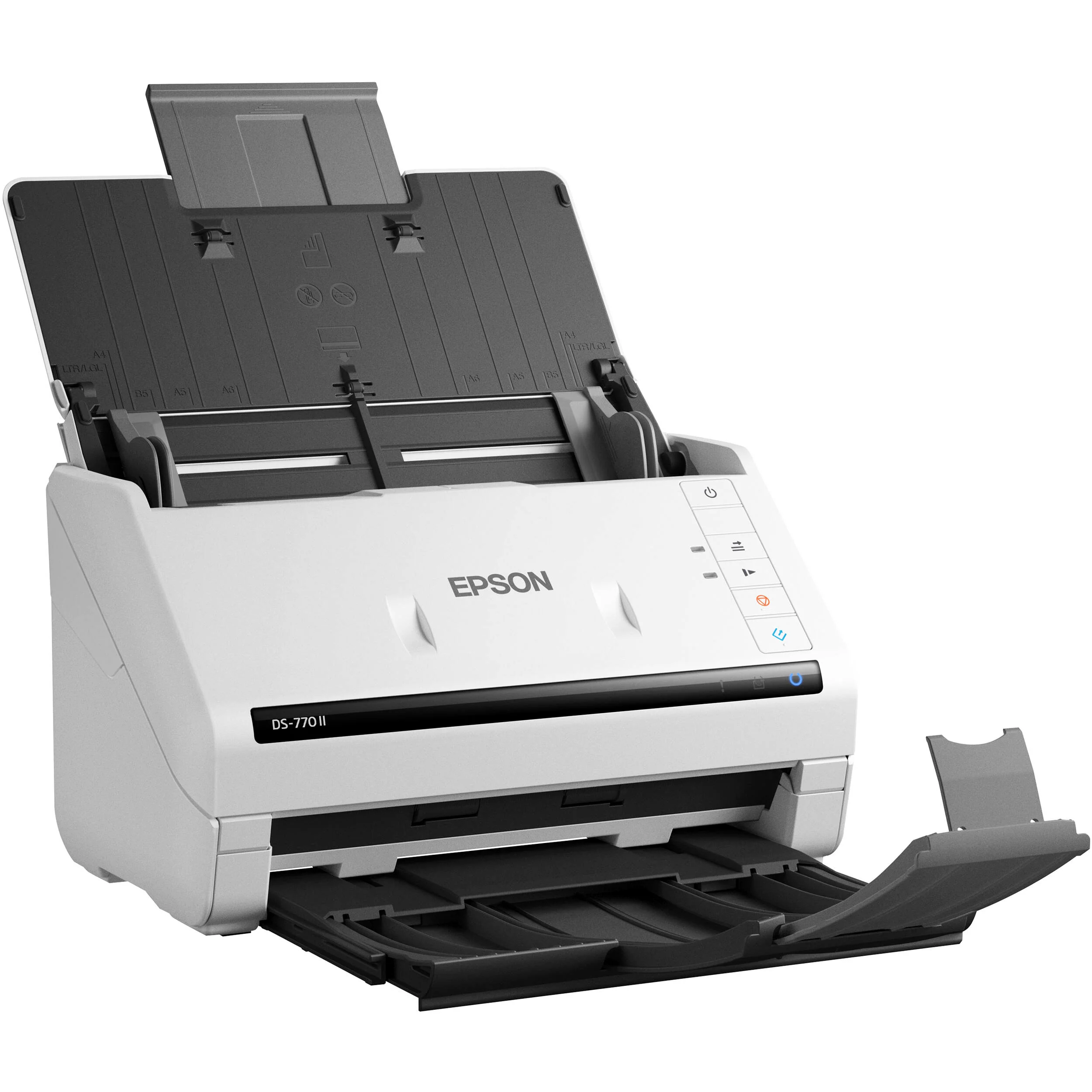

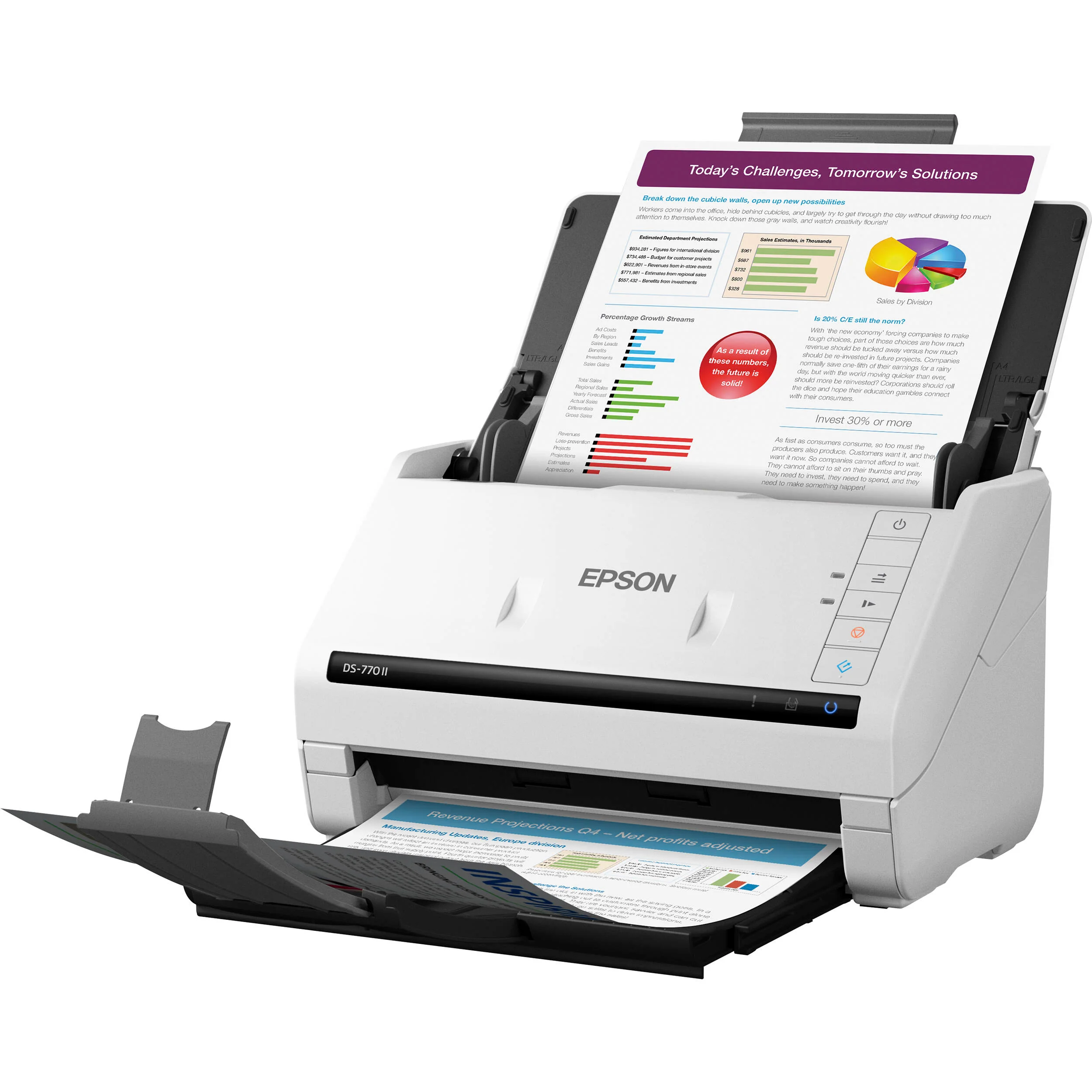

Epson DS-770 II Color Duplex Document Scanner
Epson DS-770 II Overview
Get quick and reliable scanning performance with the DS-770 II Color Duplex Document Scanner from Epson. A smart choice for business document management, the DS-770 II utilizes a 100-sheet automatic document feeder to reach simplex scan speeds up to 45 ppm and duplex scan speeds up to 90 ipm, while also offering a peak daily duty cycle of 7000 sheets. The scanner easily handles documents ranging in size from 2 x 2" up to 8.5 x 240", and the unit provides an optical resolution of 600 dpi for sharp and color-accurate scans.
The scanner lets you easily automate tasks and includes Document Capture Pro software for easily creating and managing scan jobs. Enhanced features include blank page removal, auto-rotation, auto cropping, dynamic skew correction, dirt detection, double-feed detection, and paper protection. And with the DS-770 II you can easily create searchable PDF files, as well as scan to editable Word, PowerPoint, and Excel files, and save them to Evernote, Google Drive, SharePoint, and other online storage accounts.
- 100-page automatic document feeder
- Includes Document Capture Pro software for easily creating and managing scan jobs
- TWAIN and ISIS drivers for easy integration with existing software
- Scans documents of mixed paper sizes all together
- Scans business cards, embossed cards, and ID cards
- Scans to editable Word, PowerPoint, and Excel files
- Scans to searchable PDF files
- Scans to online storage accounts including Evernote, Google Drive, and SharePoint
In the Box
- Epson DS-770 II Color Duplex Document Scanner
- USB 3.0 Cable
- AC Adapter and Power Cable
- Limited 3-Year Warranty
Epson DS-770 II Specs
| Type | Automatic Document Feeder (ADF) |
| Maximum Resolution | 600 dpi (Optical) |
| Scan Modes | Color, Grayscale, Monochrome |
| Color Depth | 30-Bit (Internal) 24-Bit (External) |
| Grayscale Depth | 30-Bit (Internal) 24-Bit (External) |
| Light Source | LED |
| Image Sensor | 1 x Contact Image Sensor (CIS) |
| Duplex Scanning | Yes |
| Single Pass Duplex | Yes |
| Scan Speed | 45 ppm at 300 dpi in Color/Grayscale/Black & White 90 ipm at 300 dpi in Color/Grayscale/Black & White |
| Automatic Image Corrections | Yes |
| Scan Sizes | Minimum: 2 x 2" / 5.1 x 5.1 cm Maximum: 8.5 x 240" / 21.6 x 609.6 cm |
| Media Thickness | ADF: Up to 47.2 mil / 1.2 mm |
| Paper Capacity | ADF: 100 x Sheet |
| Multi-Feed Detection | Yes |
| Media Weight | 27 to 413 gsm / 50 to 105 lb |
| Daily Duty Cycle | 7000 Scans |
| Special Media Support | Business Card, Check, Credit Card, Envelope, ID Card, Index Card |
| Interface | USB Type-B (USB 3.1 / USB 3.2 Gen 1) |
| Scanner Drivers | TWAIN, ISIS |
| Operating System Support | Windows, macOS/OS X |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Operating Humidity | 10 to 80% |
| Storage Temperature | -13 to 140°F / -25 to 60°C |
| Power Source | AC Adapter |
| Battery | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A |
| Power Consumption | 12 W (Maximum) 5.4 W (Ready) 1 W (Sleep) 0.1 W (Off) |
| Dimensions (W x H x D) | 11.7 x 12.5 x 7.7" / 29.7 x 31.8 x 19.6 cm |
| Weight | 8.1 lb / 3.7 kg |
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 16 x 11.3 x 9.7" |
Epson DS-770 II Reviews
