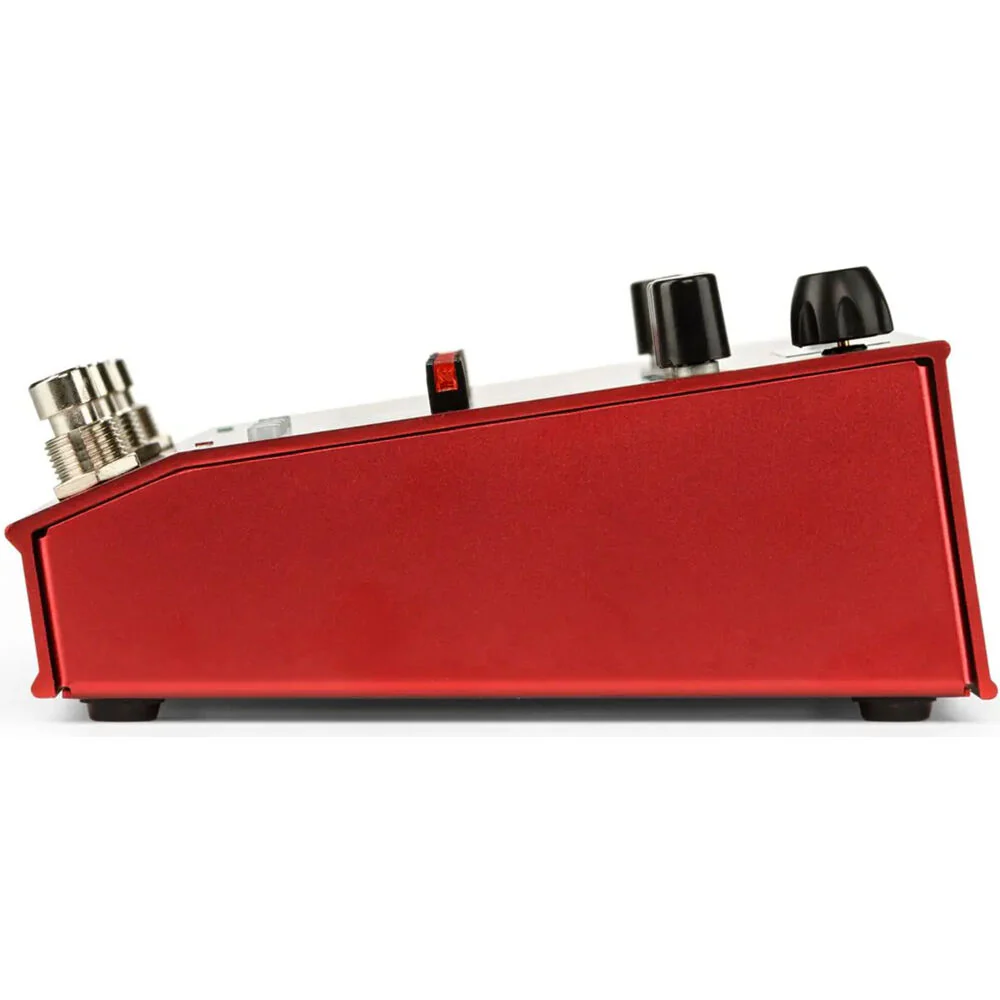

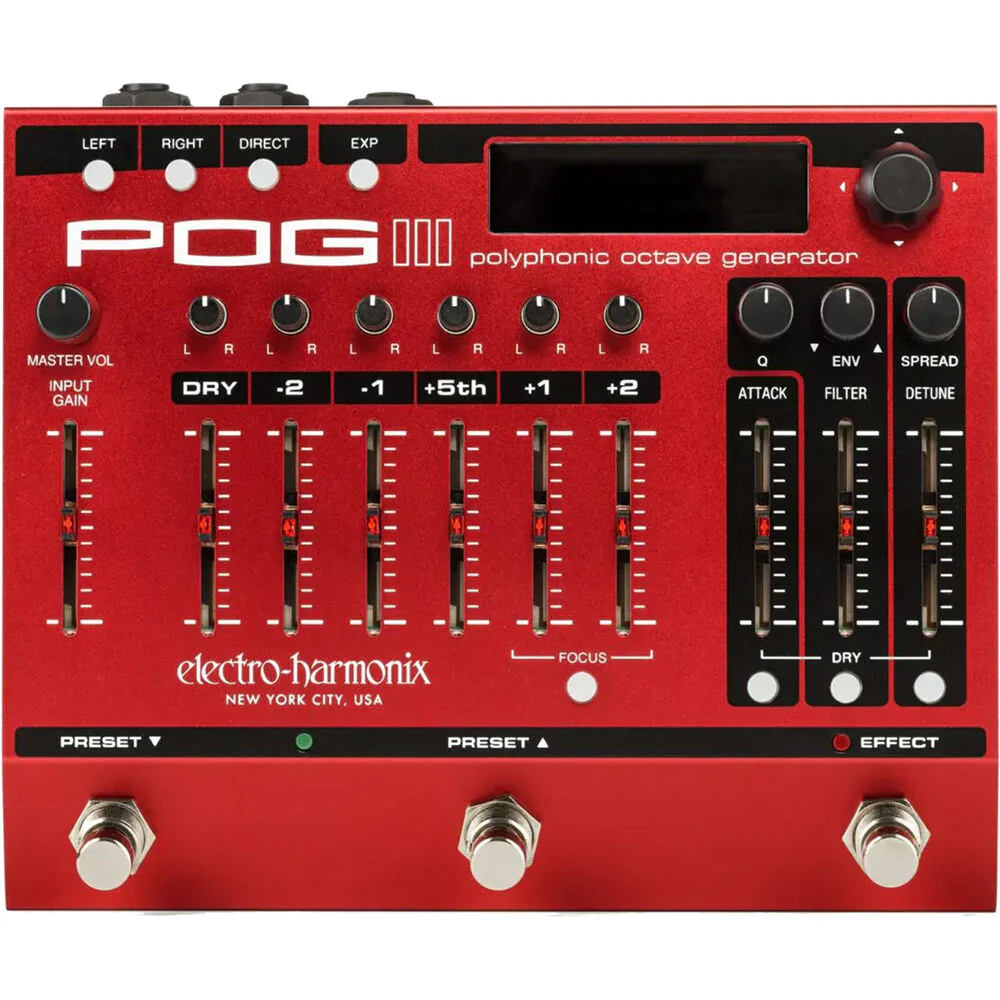

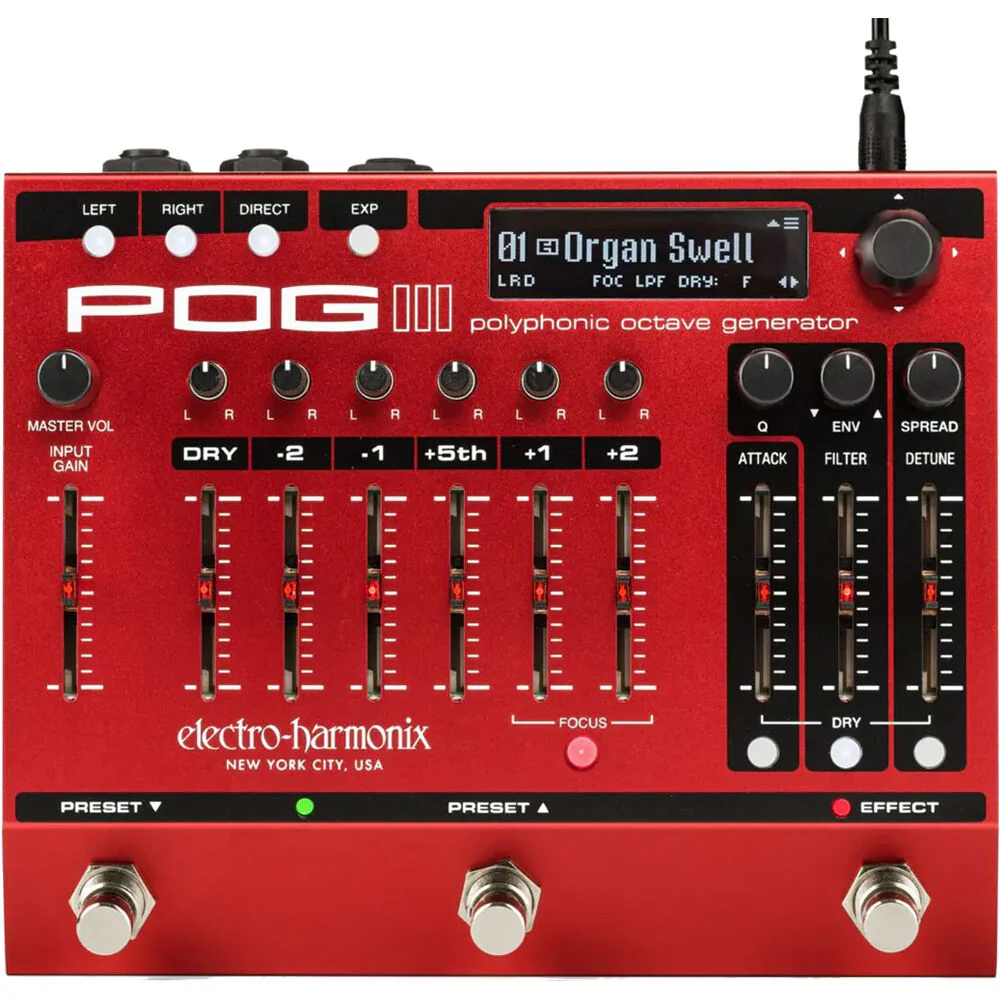

Electro-Harmonix POG3 Polyphonic Octave Generator Pedal

Third Generation Polyphonic Octave Generator

Offering improved control and a smoother tone, the POG3 from Electro-Harmonix is the third iteration of the powerful POG polyphonic octave generator, delivering lightning-fast tracking and up to four octaves of octaving. From 12-string jangle to 6-voice drawbar organ tones, POG3 provides a huge creative toolbox for shaping sounds.

The POG3 features six voices (Dry, -2, -1, +5th, +1, and +2), each of which can be fully mixed with dedicated and illuminated sliders and left/right panning knobs. The FX section has been expanded with adjustable Q and envelope sweeping on the multimode filter. The Detune section has been enhanced with a new Spread control for stereo FX. You also get an individual Dry FX section and the popular Attack slider returns for swell effects. 100 presets can be saved and rearranged via the crystal-clear OLED display, and you can organize and customize further with the EHXport app via USB-C. The POG3 includes a 9V power adapter.

All voices, effects, and additional features are now controllable via expression and MIDI for even more creative control. Unlock new expression effects including Freeze, Glissando, Volume, Filter, X-Fade, and Warp with advanced programming and performance controls. The Input Gain slider is an old friend from the original POG that can add girth and dirt to your tone mix.

Loads of Creative Potential

With all of it's fresh tone creation power on tap, additional storage and editing options in POG3 simplify workflow and sound-saving capabilities. 100 onboard presets can be saved and rearranged easily thanks to the POG3's high-visibility OLED display and NavCoder knob. The EHXport desktop app also allows for easy preset storage and organization as well as streamlined preset editing on your Windows PC or macOS computer.

Extra Features

• Master volume control
• Enhanced classic POG and POG2 Attack, Filter, and Detune controls
• Focus control for +1 Oct and +2 Oct
• Multimode filter with Q and Envelope sweep
• Illuminated slide pots and buttons
• Selectable home views for personalized user experience
• Easy-to-navigate menu system
• New NavCoder knob for rotary and directional navigation through menus

Electro-Harmonix POG3 Specs

Audio Circuit Type	Digital
Buffer	Buffered Bypass
Input Impedance	2 Megohms
Output Impedance	550 Ohms
Controls	10 x Slider (Input Gain, Dry, -2, -1, +5th, +1, +2, Attack, Filter, Detune) 10 x Rotary Knob (Master Volume, L/R Pan, Q, Envelope, Spread) 1 x NavCoder Encoder (Preset/Settings Navigation) 3 x Footswitch (Preset Down, Preset Up, Effect On/Bypass)

Panel Type	OLED
Display Size	Not Specified by Manufacturer
Touchscreen	No

USB I/O	1 x USB-C Female Input/Output

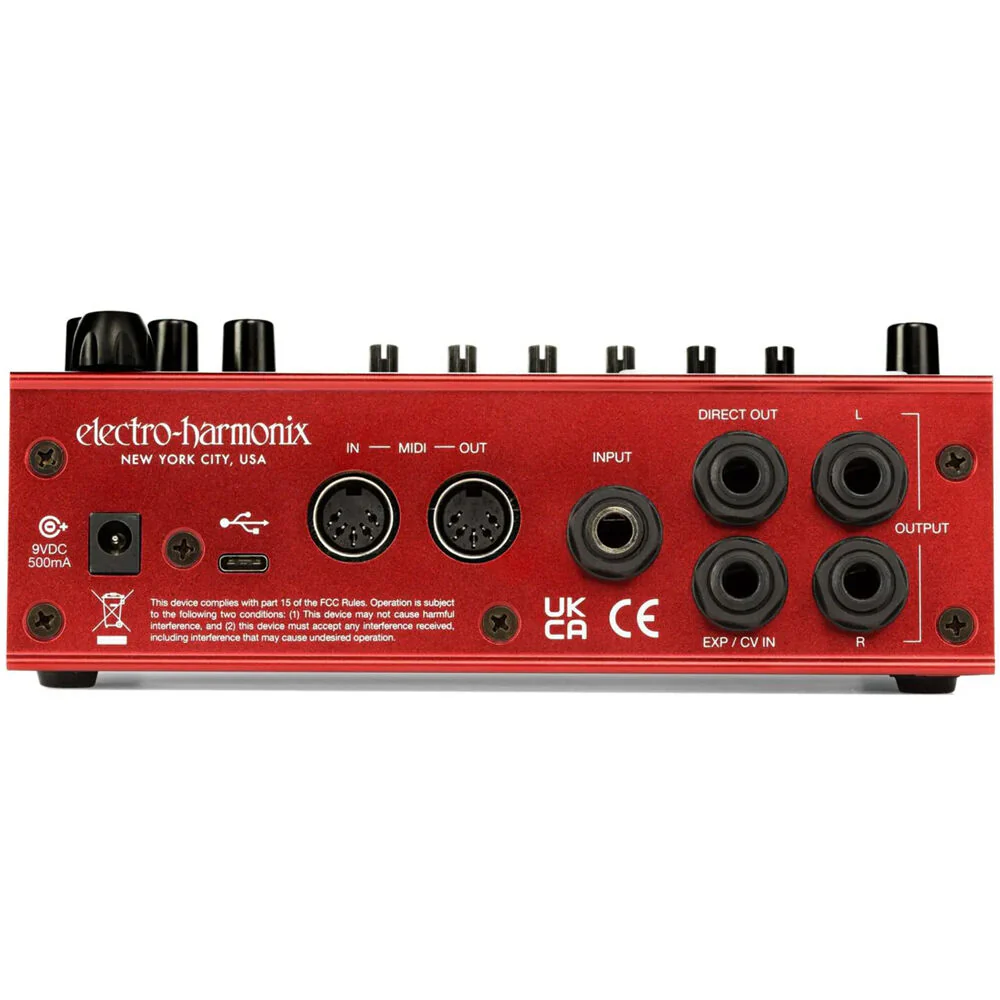

Audio I/O	2x 1/4" TS Hi-Z/Instrument Input (1 Stereo Pair) 1x 1/4" TRS Input (Expression/CV) 1x DIN 5-Pin MIDI Input 2x 1/4" TS Line Output (1 Stereo Pair) 1x DIN 5-Pin MIDI Output

Power Source	AC Adapter with Power Brick (Included)
DC Input Power	9.6 to 10.5 VDC at 300 to 500 mA
Operating Current	300 mA (Typical)

Color	Red
Material of Construction	Metal
Dimensions	7.12 x 5.75 x 2.25" / 18.08 x 14.61 x 5.71 cm

Package Weight	2.405 lb
Box Dimensions (LxWxH)	10.5 x 7.2 x 3.4"
