EAO 31-455.036 Illuminated Pushbutton Switch, 31 Series, SPST-NO, Off-On, 100 mA, 42 V

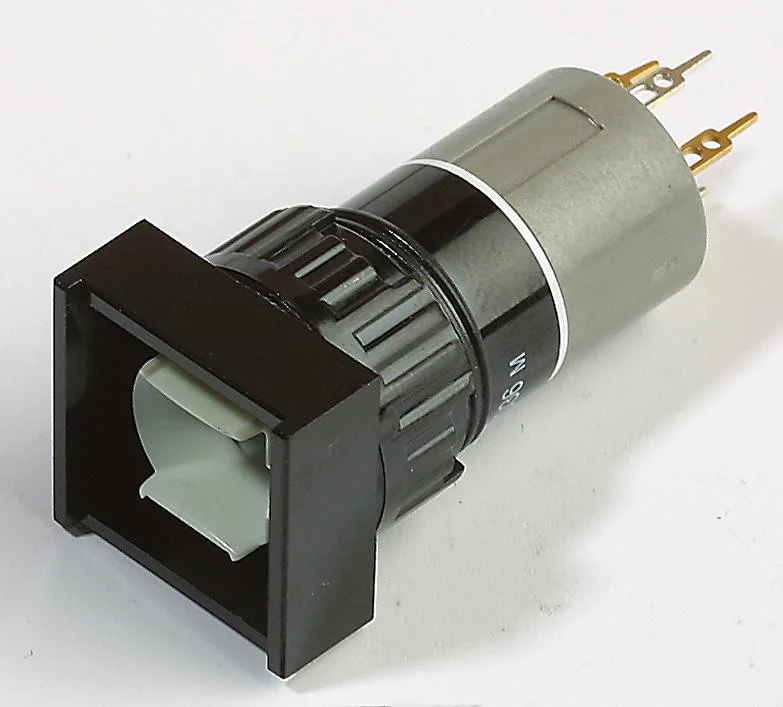

The 31-455.036 is a single-pole single-throw (SPST) illuminated Pushbutton Switch with a polyetherimide actuator and universal terminal. The 31 series switch equipped with low level switching elements, momentary function and 1NO contact. It has gold-plated contacts. The universal terminals permit these units to be mounted on printed circuit boards (PCB).

Raised mounting design
3mm Actuating travel
18 x 18mm Size
IP40 Protection rating

Applications

Motor Drive & Control, Industrial

Product details

Contact Voltage DC Nom	42V
Switch Operation	Off-On
Contact Voltage AC Nom	42V
Illumination Colour	-
Switch Terminals	Solder
Contact Configuration	SPST-NO
Product Range	31 Series
Contact Current Max	100mA

Other details

Brand	EAO
Part Number	31-455.036
Quantity	Each
Technical Data Sheet EN
