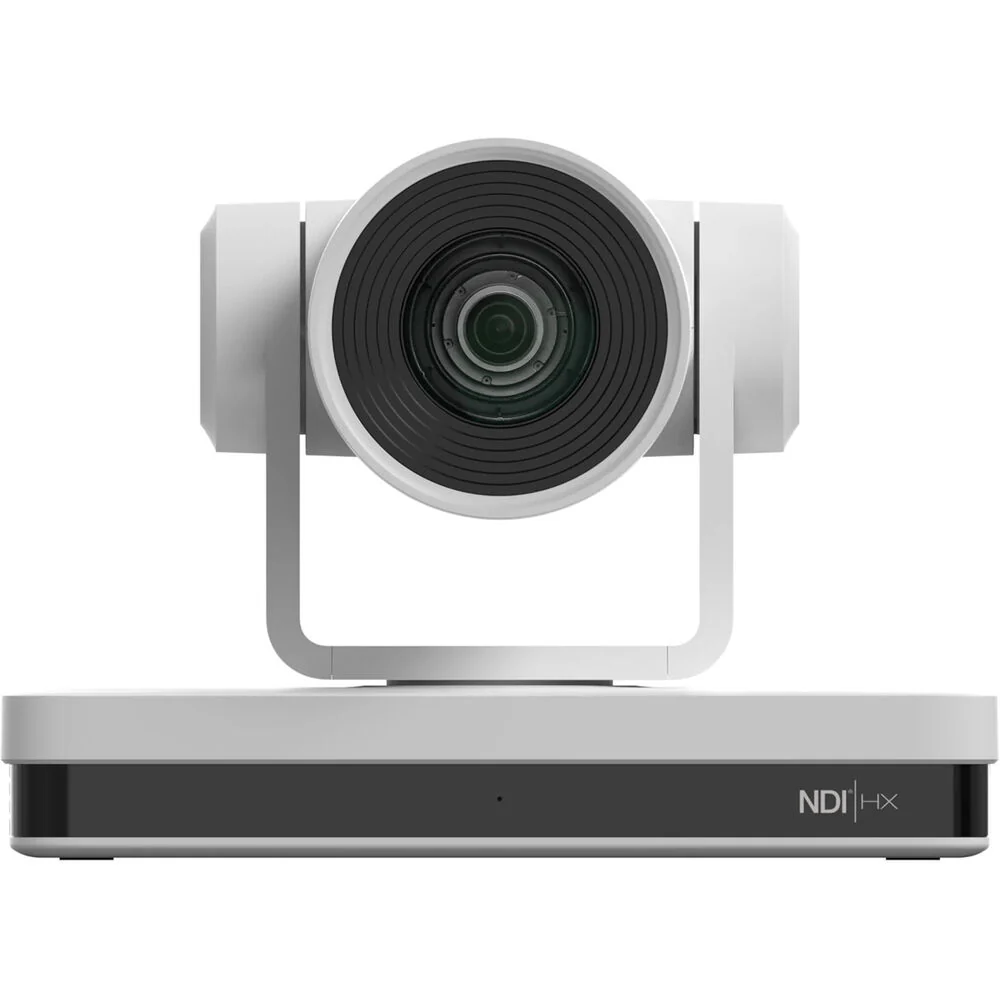

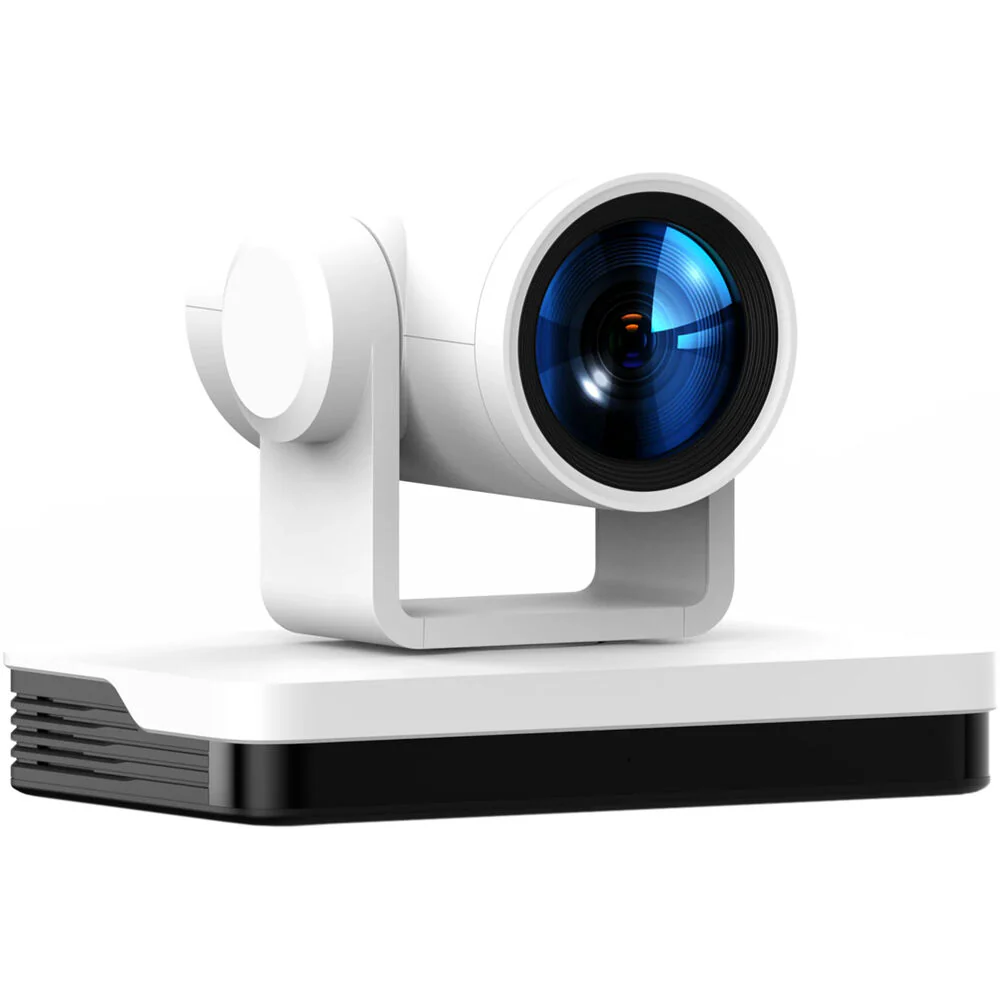

DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
DVDO C5-1 Overview
The white C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking from DVDO supports up to UHD 4K60 video and dual-stream 30p output via USB. It features a wide 59.2° 25x optical zoom and AI human detection for real-time tracking with four zones. Its interface includes HDMI, 3G-SDI, USB 2.0, and LAN ports with simultaneous outputs. A 3.5mm audio line input enables you to embed external audio. An RS-232 input supports RS-485, VISCA, Pelco-D, and Pelco-P protocols, and the output supports VISCA.
UHD 4K60 Resolution
A high-quality 1/1.8" Sony CMOS sensor supports video resolutions up to UHD 4K with frame rate up to 60 fps.
Dual-Stream Output
USB 2.0 supports the main-stream and sub-stream outputs simultaneously.
25x Optical Zoom
The integrated 25x optical zoom provides a 59.2° wide-angle view.
AI Human Detection
The built-in high-speed processor and AI technology provide advanced image processing, analysis algorithm, real-time tracking, and zone tracking modes.
Interface
Output is supported simultaneously via HDMI, SDI, USB 2.0, and LAN ports.
Auto-Focus Technology
Fast, accurate, and stable auto focusing technology ensures that your subject remains sharp.
UPC: 880802002286
Items Included
- DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)
- Power Supply
- RS-232 Control Cable
- USB 2.0 Cable
- IR Remote Control
- Ceiling Bracket
- Wall Bracket
- Limited 1-Year Manufacturer Warranty (USA & Asia)
- Limited 2-Year Manufacturer Warranty (EU & UK)
Additional Resources
DVDO C5-1 Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
25x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/MJPEG
3840 x 2160 H.264/MJPEG/H.265 320 x 240 to 1920 x 1080 at 30p NV12 432 x 240 to 640 x 480 at 30p (Simultaneous Multi-Stream) 800 x 448 at 25p (Simultaneous Multi-Stream) YUY2 800 x 448 at 25p 432 x 240 to 640 x 360 at 30p |
| Supported Control Protocols |
IR
ONVIF Profile S Pelco-D Pelco-P VISCA |
| PoE Support |
PoE 802.3af
|
| Mounting |
1x 1/4"-20 Female
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Color Temperature, Manual, One Push
|
Lens
| Focal Length |
7.1 to 171.95mm
|
| Optical Zoom Ratio |
25x
|
| Field of View |
Horizontal: 59.2 to 2.5°
Vertical: 34.6 to 1.4° |
| Maximum Aperture |
f/1.8 to 3.56
f/1.61 to 5.19 |
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/USB Output
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/MJPEG
3840 x 2160 H.264/MJPEG/H.265 320 x 240 to 1920 x 1080 at 30p NV12 432 x 240 to 640 x 480 at 30p (Simultaneous Multi-Stream) 800 x 448 at 25p (Simultaneous Multi-Stream) YUY2 800 x 448 at 25p 432 x 240 to 640 x 360 at 30p |
Control
| Presets |
255 via RS-232, VISCA
|
| Pan/Tilt |
Pan: 220° (-110 to 110°) at 0.1 to 100°/s
Tilt: 60° (-30 to 30°) at 0.1 to 70°/s |
| Tally Light |
No
|
| Supported Control Protocols |
IR
ONVIF Profile S Pelco-D Pelco-P VISCA |

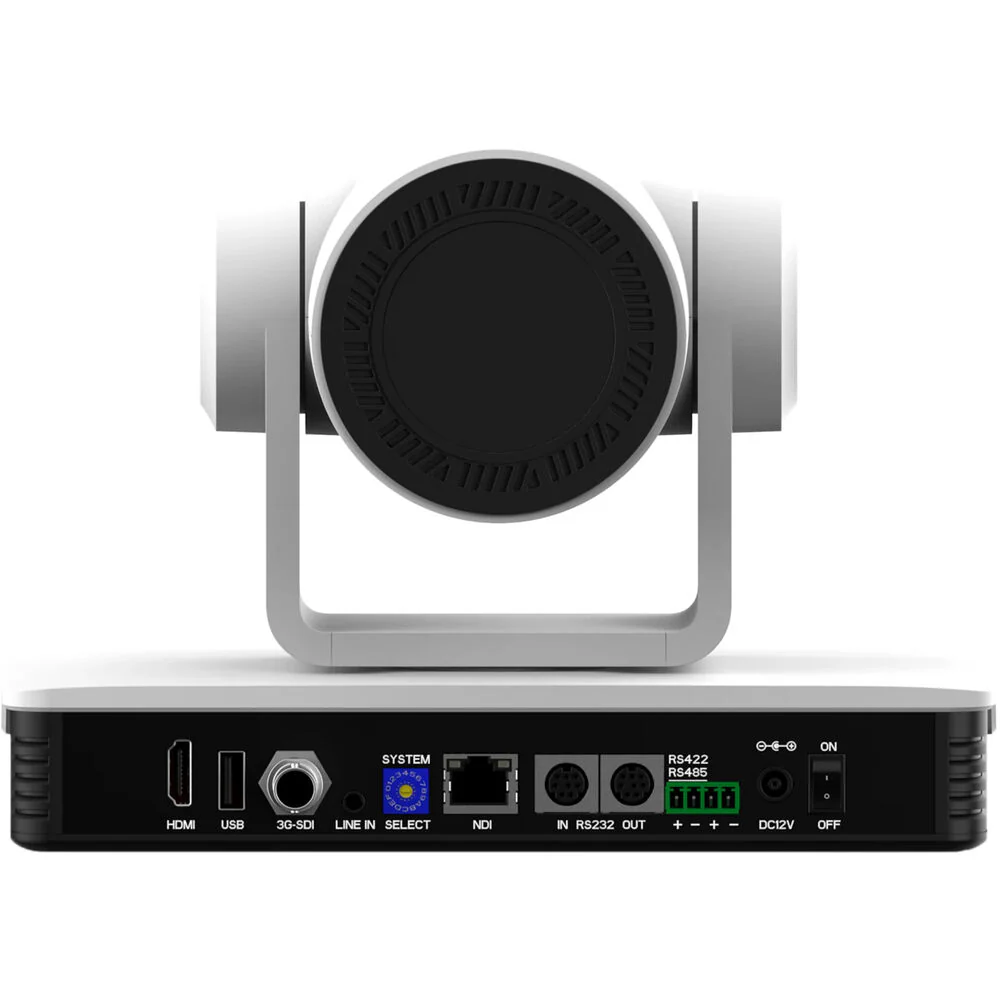

Interface
| Video I/O |
1x HDMI 1.3 Output
1x BNC (3G-SDI) Output 1x RJ45 LAN Output 1x USB-A 2.0 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 4-Pin (RS-485) Control |
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
12 W
|
Environmental
| Operating Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female
|
| Certifications |
FCC Class A
|
| Dimensions (W x H x D) |
8.7 x 6.3 x 5.7" / 220 x 159 x 144 mm
|
| Weight |
3.7 lb / 1.7 kg (Body Only)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$4,239.08
DVDO C5-1 4K HDMI/IP/3G-SDI/USB PTZ Camera with 25x Optical Zoom & AI Auto Tracking (White)—
$4,239.08
