DVDO C4-1 1080p NDI HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
DVDO C4-1 1080p NDI HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)

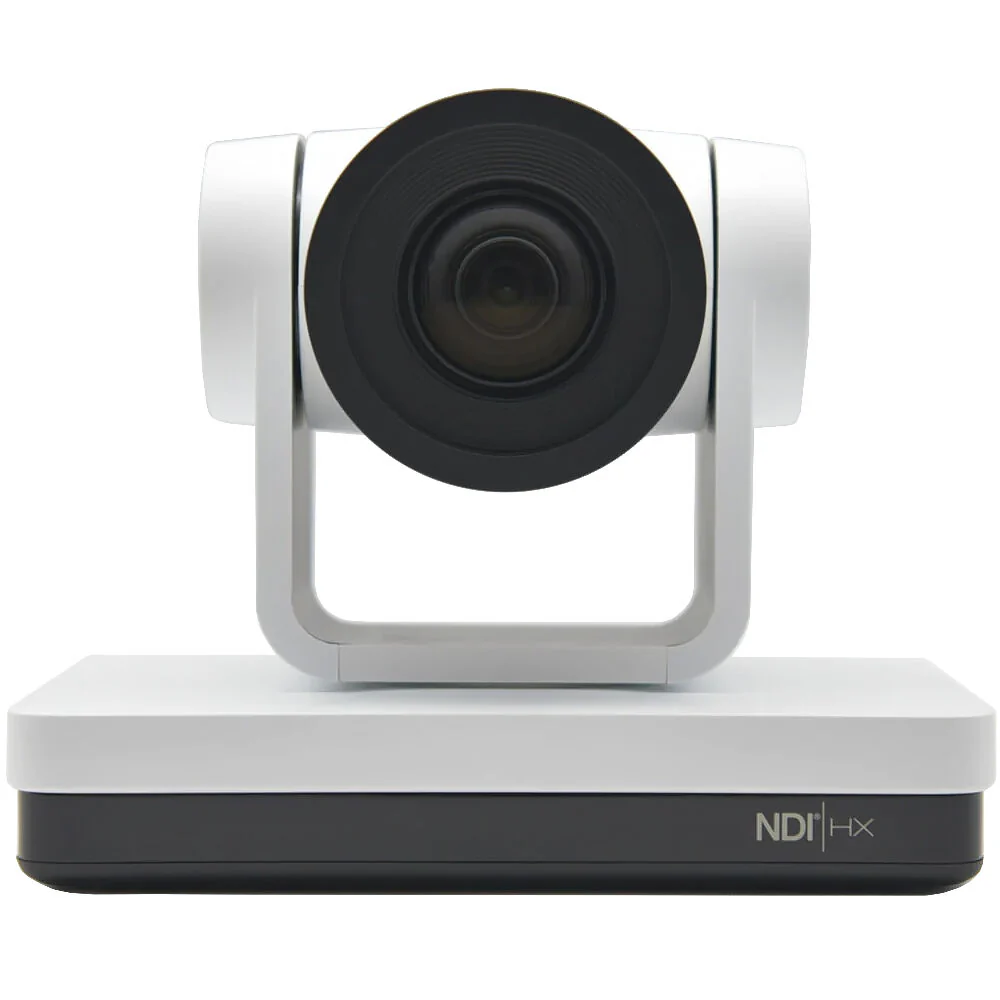

DVDO C4-1 Overview
The white C4-1 1080p NDI HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking from DVDO supports up to 1080p60 video and dual-stream 30p output via USB. It features a wide 56° 20x optical zoom and AI human detection for real-time automatic tracking. Its interface includes NDI|HX, HDMI, 3G-SDI, USB 3.0, and LAN ports with simultaneous outputs. A 3.5mm audio line input enables you to embed external audio. Control options include RS-232, RS-422, RS-485, VISCA, Pelco-D, and Pelco-P protocols.
1080p Resolution
A high quality 1/2.8" Sony CMOS sensor supports video resolutions up to 1080p with frame rate up to 60 fps.
Dual Stream Output
USB 3.0 supports the main-stream and sub-stream outputs simultaneously.
20x Optical Zoom
The integrated 20x optical zoom provides a 56° wide-angle view with 15x digital zoom available for tighter angles.
AI Human Detection
The built-in high-speed processor and AI technology provide advanced image processing, analysis algorithm, real-time tracking, and zone tracking modes.
Interface Includes NDI|HX
Output is supported simultaneously via HDMI, SDI, USB 3.0, and NDI|HX.
Auto-Focus Technology
Fast, accurate, and stable auto focusing technology ensures that your subject remains sharp.
UPC: 880802002309
Items Included
- DVDO C4-1 1080p NDI HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)
- Power Supply
- RS-232 Control Cable
- USB 2.0 Cable
- IR Remote Control
- Ceiling Bracket
- Wall Bracket
- Limited 1-Year Manufacturer Warranty (USA & Asia)
- Limited 2-Year Manufacturer Warranty (EU & UK)
Additional Resources
DVDO C4-1 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
15x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/YUY2/NV12/MJPEG/H.265 via NDI|HX
320 x 240 to 1920 x 1080 at 5.00p, 30p, 25p, 20p, 15p, 10p (Simultaneous Multi-Stream) |
| Supported Control Protocols |
IR
NDI ONVIF Profile S Pelco-D Pelco-P VISCA |
| PoE Support |
PoE 802.3af
|
| Mounting |
1x 1/4"-20 Female for Bracket
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Color Temperature, One Push, Manual, Auto
|
Lens
| Focal Length |
5.2 to 98mm
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
15x
|
| Field of View |
Horizontal: 59 to 3.2°
|
| Maximum Aperture |
f/1.5 to 3
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/NDI/USB Output
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/YUY2/NV12/MJPEG/H.265 via NDI|HX
320 x 240 to 1920 x 1080 at 5.00p, 30p, 25p, 20p, 15p, 10p (Simultaneous Multi-Stream) |
Control
| Presets |
255 via RS-232, VISCA
|
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-30 to 90°) at 0.1 to 45°/s |
| Tally Light |
No
|
| Supported Control Protocols |
IR
NDI ONVIF Profile S Pelco-D Pelco-P VISCA |

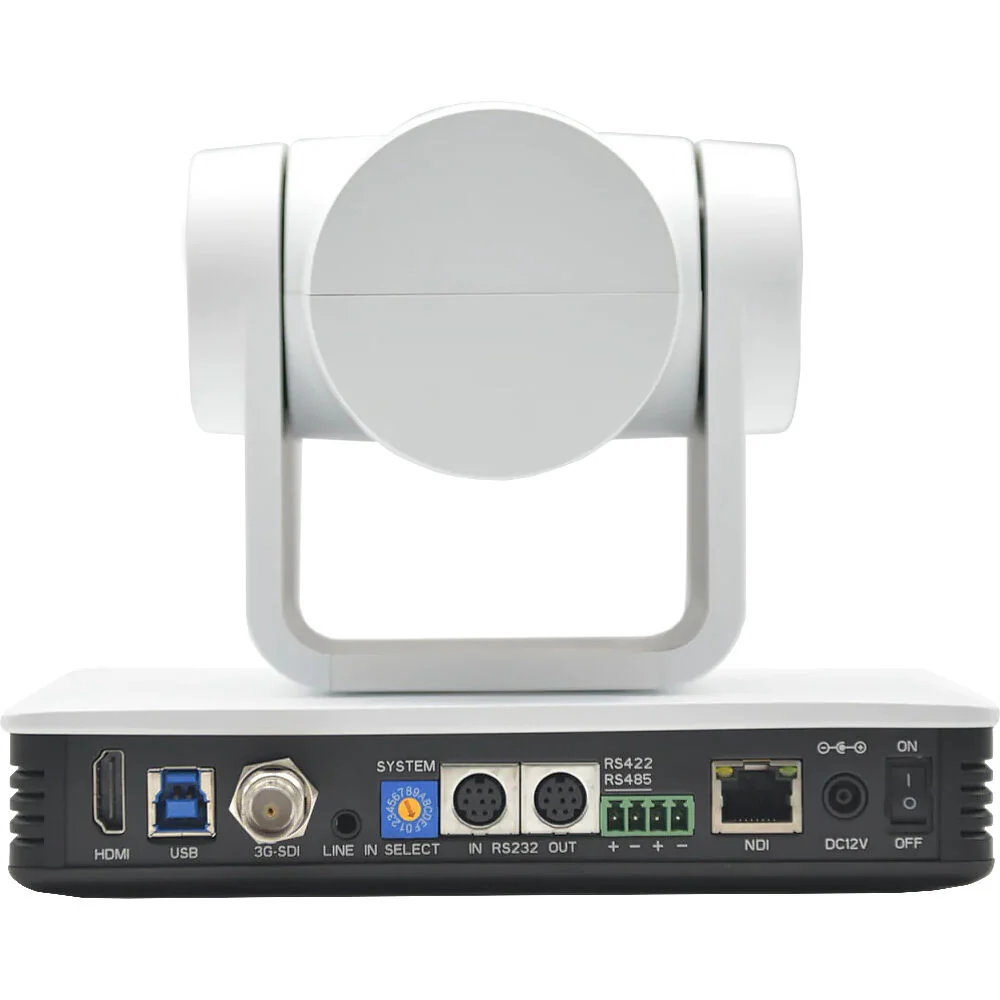

Interface
| Video I/O |
1x HDMI 1.3 Output
1x BNC (HD-SDI) Output 1x RJ45 (NDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Block 4-Pin (Pelco-D, Pelco-P, RS-232, RS-485) Control Input/Output
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Input 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232) Control Output |
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
12 W
|
Environmental
| Operating Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female for Bracket
|
| Certifications |
FCC Class A
|
| Dimensions (W x H x D) |
7.1 x 5.9 x 4.5" / 181 x 149 x 115 mm
|
| Weight |
2.54 lb / 1.15 kg (Body Only)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$2,912.30
DVDO C4-1 1080p NDI HDMI/IP/3G-SDI/USB3.0 PTZ Camera with 20x Zoom & AI Auto Tracking (White)—
$2,912.30
