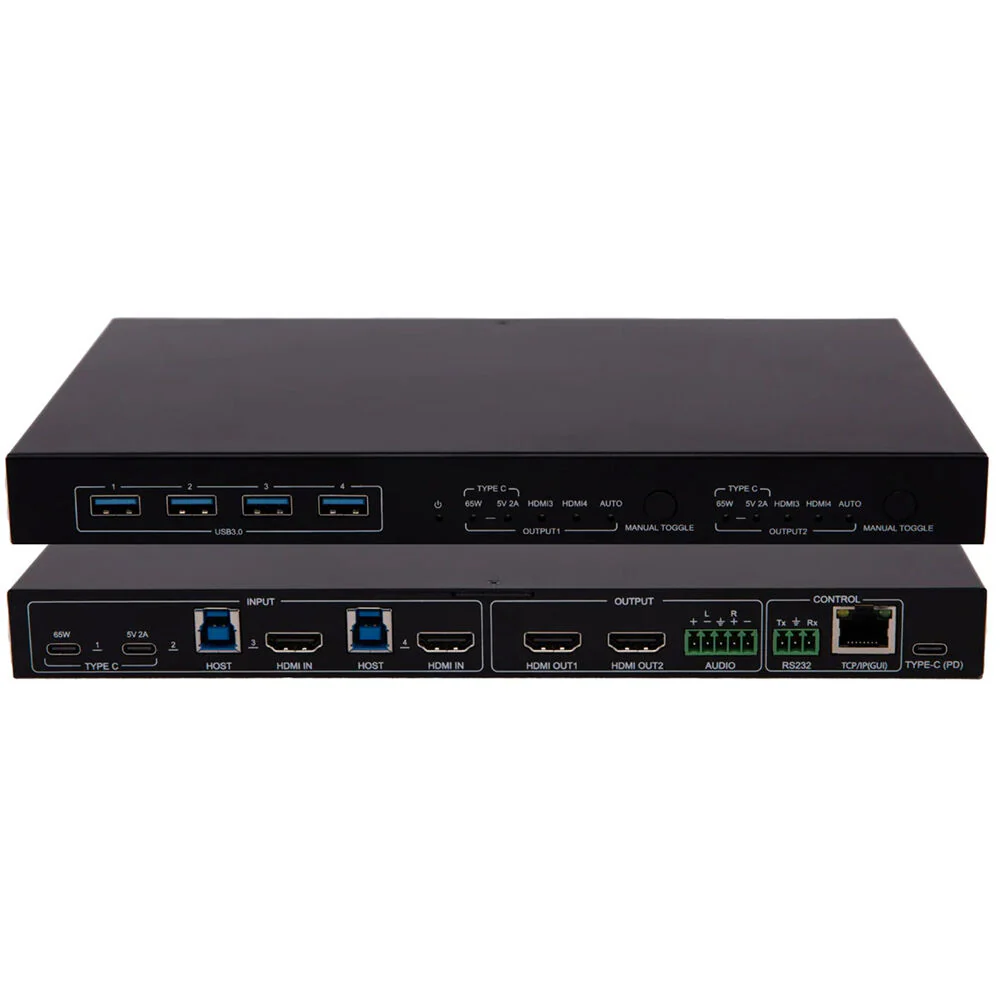

DVDO 4K 4x2 Presentation Switcher with USB-C and HDMI Inputs
DVDO USBC-HDMI-PS-42 Overview

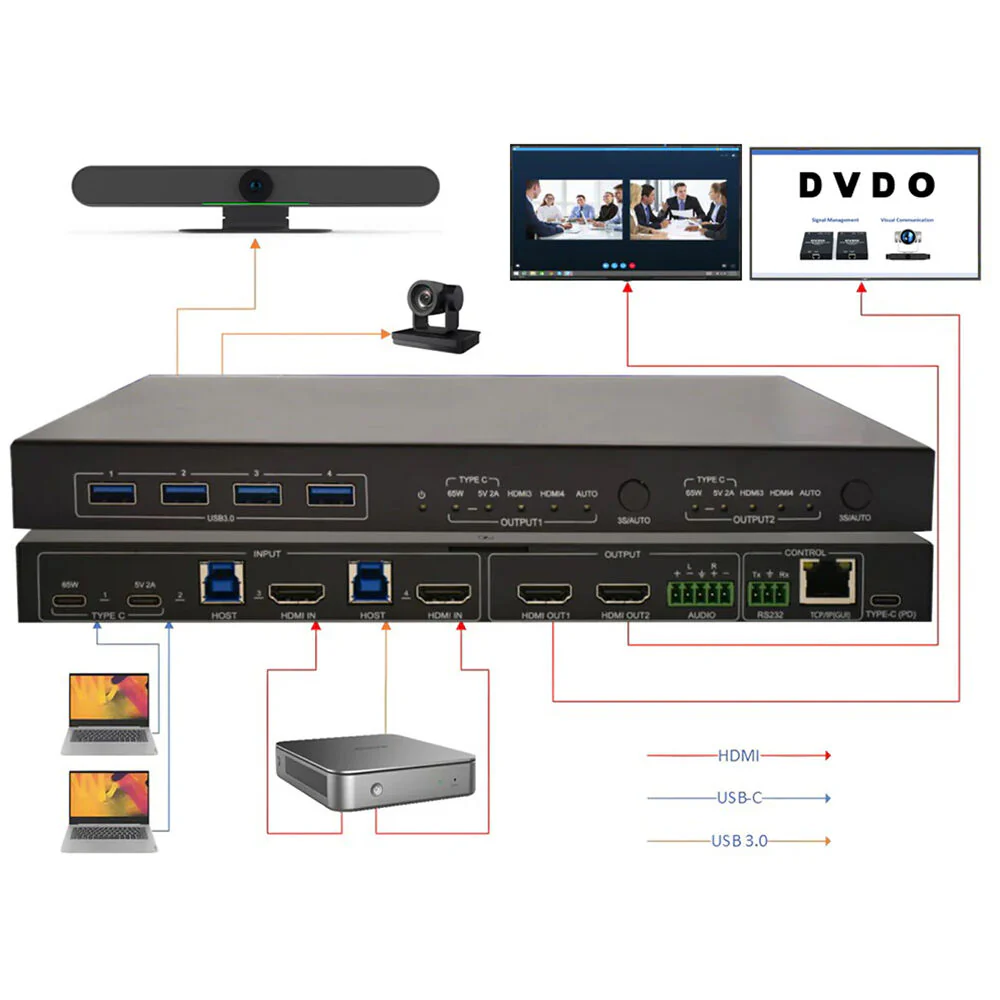

The 4K 4x2 Presentation Switcher with USB-C and HDMI Inputs from DVDO lets you easily switch between two HDMI and two USB-C inputs to two HDMI outputs. This switcher supports up to 18 Gb/s video bandwidth for output resolutions up to DCI 4K60. Powered via its USB-C 100W PD port, it provides 10 and 65W accessory charging via two USB-C ports and incorporates both USB-A and USB-B peripheral ports. This unit supports audio de-embedding and is controlled via the front-panel buttons, the included IR remote, OSD menu navigation, controller software, or RS-232 commands.
Items Included
- DVDO 4K 4x2 Presentation Switcher with USB-C and HDMI Inputs
- 2 x Mounting Ear
- 4 x Screw
- 4 x Rubber Foot
- 3-Pin to DB9 RS-232 Cable
- 5-Pin Euroblock Connector
- 20 VDC, 2A, 100W USB Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
DVDO USBC-HDMI-PS-42 Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 50/60
|
| Color Processing |
8-Bit 4:4:4
8-Bit 4:2:0 |
| Video Inputs |
2x HDMI (2.0)
2x USB-C |
| Input Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K up to 60 fps USB-C DCI 4K up to 30 fps |
| Embedded Audio Input |
HDMI
USB-C |
| Video Outputs |
2x HDMI (2.0)
|
| Output Video Format |
HDMI (4:4:4)
DCI 4K up to 60 fps 1080p |
| Audio Outputs |
1x Block 5-Pin Stereo
|
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
USB-C |
| Other I/O |
1x Block 3-Pin RS-232 Input/Output
1x RJ45 LAN Input 2x USB-B 4x USB-A |
| Digital Audio Decoding |
Dolby Digital Plus, DTS-HD High Resolution, LPCM, Dolby TrueHD
|
| HDCP Support |
Yes, Version 2.2
|
| HDR Support |
Yes
|
| DTS Compatibility |
DTS-HD High Resolution
|
| Dolby Compatibility |
Dolby Digital Plus, Dolby TrueHD
|
| Wireless |
Bluetooth / Wi-Fi
|
| Power I/O |
1x USB-C Input
2x USB-C Output |
| Power Consumption |
Device: 85 W
|
| Operating Conditions |
41 to 131°F / 5 to 55°C at 10 to 90% Humidity
|
| Storage Conditions |
-13 to 158°F / -25 to 70°C
|
| Dimensions |
10.2 x 6.1 x 1" / 260 x 155 x 25 mm
|
| Weight |
2.1 lb / 950 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
