Desmond DAC-50CAM Bi-Directional 50mm QR Clamp for Arca-Type QR Plates with Removable Arca-Type and Manfrotto Base Mounting Plate
Desmond DAC-50CAM Bi-Directional 50mm QR Clamp for Arca-Type QR Plates with Removable Arca-Type and Manfrotto Base Mounting Plate
Desmond DAC-50CAM Overview

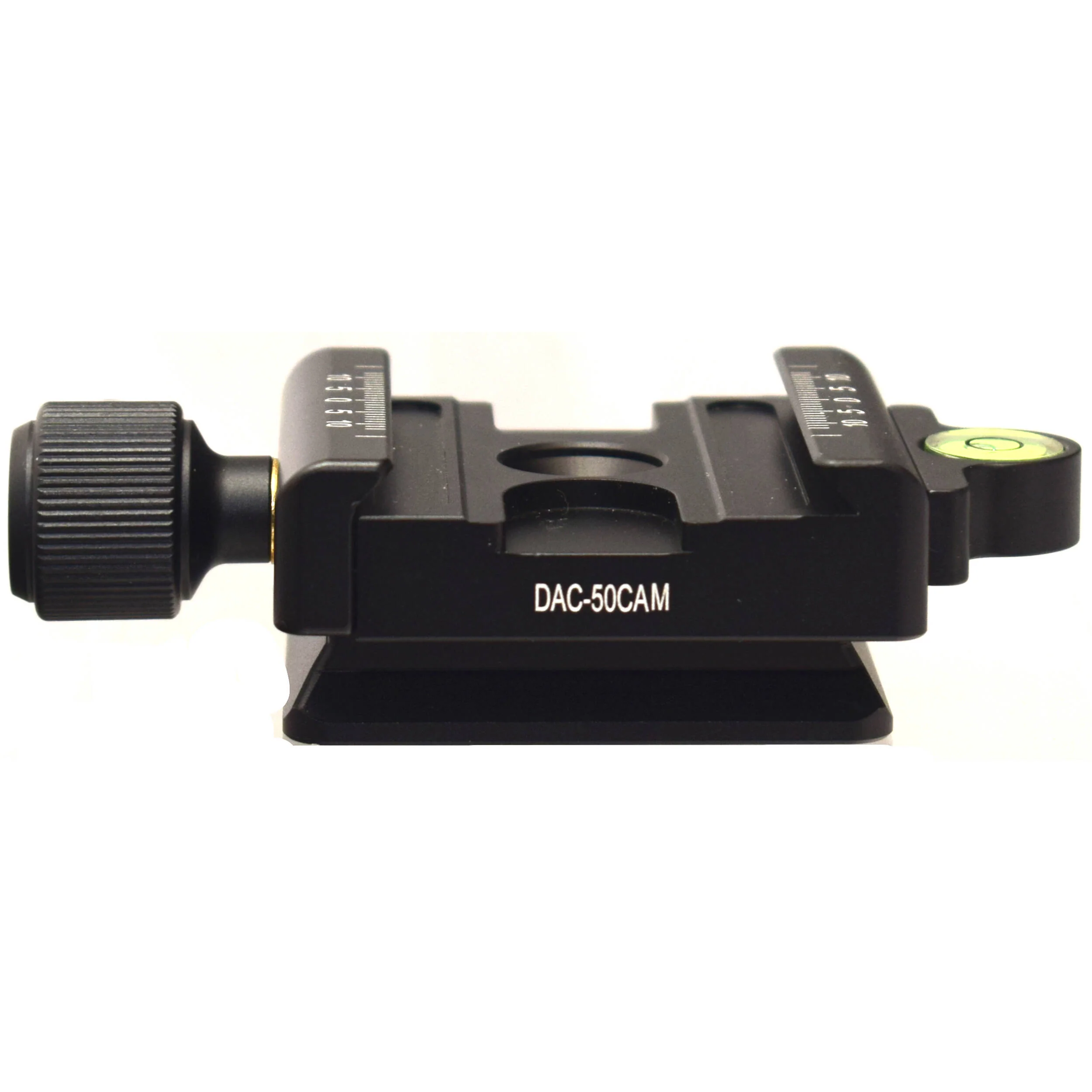

This DAC-50CAM Bi-Directional 50mm QR Clamp for Arca-Type Quick Release Plates from Desmond is a square quick release clamp that allows a 50mm square Arca-type quick release plate to have a 90° orientation shift for quickly repositioning a camera.

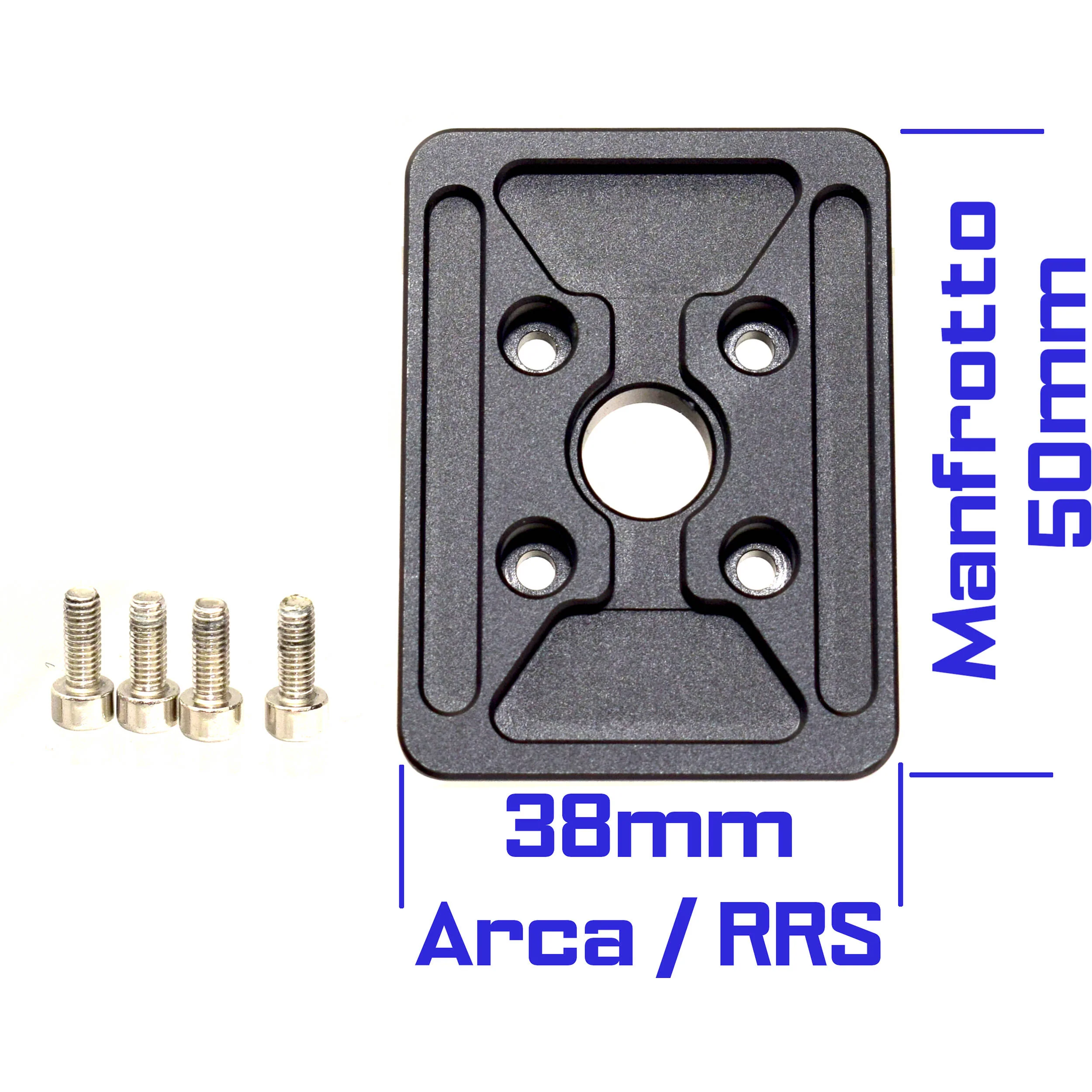

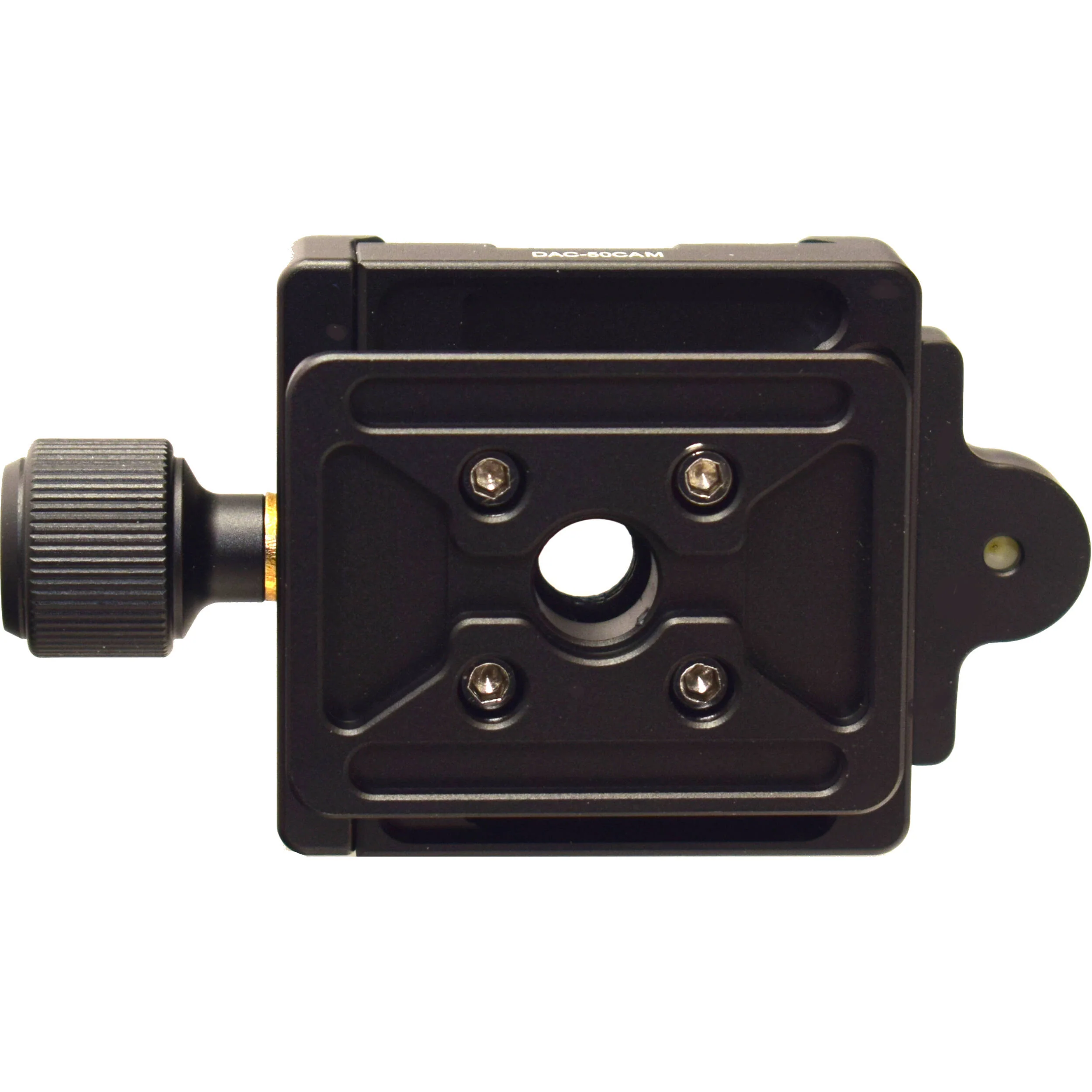

The base of this clamp features a removable 38 x 50mm dovetailed baseplate that is compatible with Arca-type and Manfrotto quick release clamps, allowing it to be quickly added to an existing quick release configuration. The 38 x 50mm plate can be removed, allowing the clamp to mounted directly using the threaded 3/8"-16 mount.
NOTE: This quick release clamp DOES NOT include a quick release plate.
In the Box
- Desmond DAC-50CAM Bi-Directional 50mm QR Clamp for Arca-Type QR Plates with Removable Arca-Type and Manfrotto Base Mounting Plate
- Removable QR Base Plate
- 4 x Allen Screws
- Allen Wrench
- 1/4"-20 to 3/8"-16 Adapter Bushing
- Mini Screwdriver
- Limited 1-Year Manufacturer Warranty
Desmond DAC-50CAM Specs
| Locking Method |
Screw Knob
|
| Assembly Dimensions |
L: 2.1 x W: 2.0" / L: 53.0 x W: 50.0 mm
|
| Quick Release Type |
Arca-Type
|
| Tripod Mounting Thread |
1 x 3/8"-16 Female
|
| Leveler |
1 x Bubble Level
|
| Material |
Aluminum
|
| Weight |
3.4 oz / 96 g
|
| Package Weight |
0.335 lb
|
| Box Dimensions (LxWxH) |
5.7 x 4.9 x 1.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
