- Compatible with 1" Sensors up to 20MP
- C Mount
- 12mm Fixed Focal Length
- 56.7 x 44.1° H/V Field of View

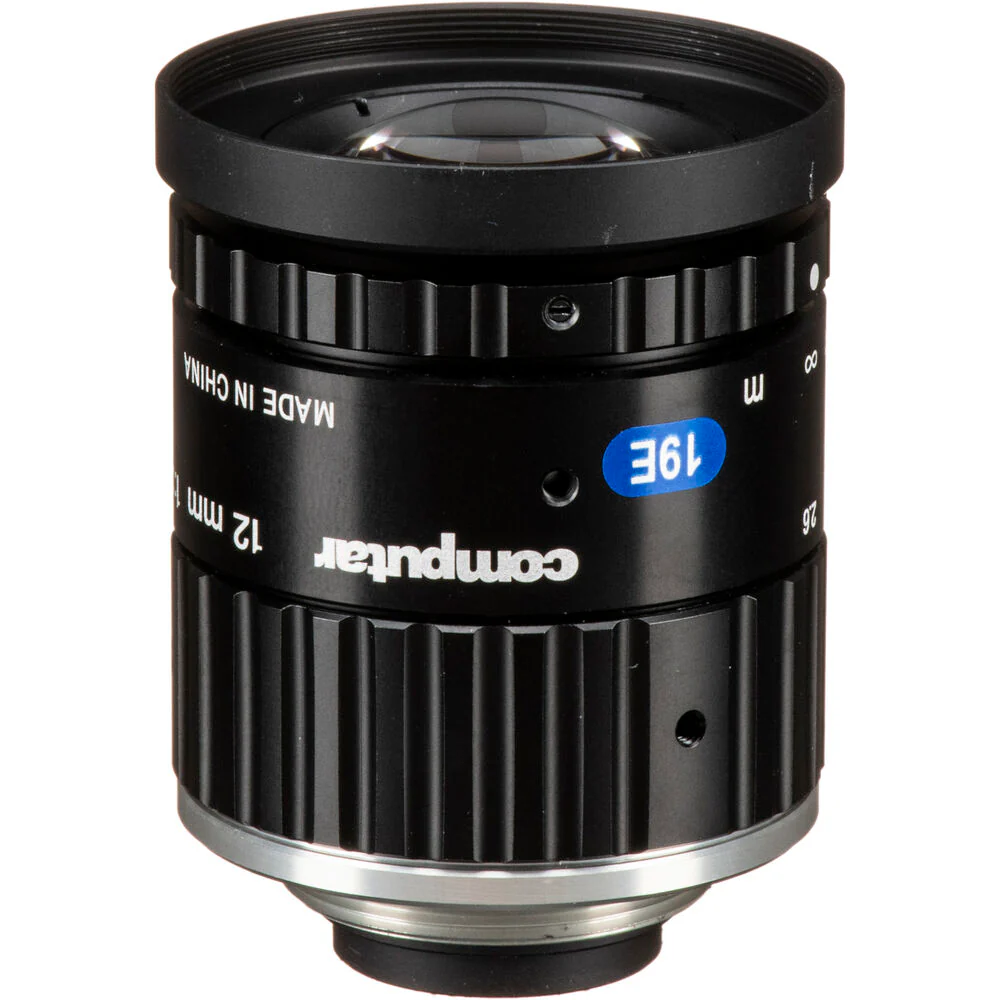

computar V1226-MPZ Overview
Minimize image aberrations from vibration in factory automation with the V1226-MPZ C-Mount 12mm Machine Vision Lens from computar. Compatible with 1" camera sensors up to 20MP, this compact lens has a focal length of 12mm and an f/2.6-16 manual iris that delivers a field of view of 56.7 x 44.1°. Focus control is manual. An integrated M37.5 filter thread enables you to mount an optional filter in front of the lens.
- For machine vision applications
- Vibration resistance up to 5 g
- 12mm fixed lens
- Compatible with sensors up 20MP
- C mount
- Allows for short working distances
- Ultra-low distortion
- Corner brightness
In the Box
- computar V1226-MPZ C-Mount 12mm Machine Vision Lens
- Limited 3-Year Warranty
Computar V1226-MPZ Specs
| Lens Mount |
C |
| Sensor Compatibility |
1", 2/3", 1/1.8" |
| Focal Length |
12mm |
| Back Focal Length |
10.6mm |
| Aperture |
f/2.6 to 16.0 |
| Angle of View |
1" Sensor
Diagonal: 67.4°
Horizontal: 56.7°
Vertical: 44.1°
2/3" Sensor
Diagonal: 49.8°
Horizontal: 40.7°
Vertical: 31°
1/1.8" Sensor
Diagonal: 41.5°
Horizontal: 33.7°
Vertical: 25.5° |
| Minimum Focus Distance |
0.33' / 0.1 m |
| Focus Type |
Manual Focus |
| Iris Type |
Manual |
| Distortion |
1": 0%
2/3": -1.1%
1/1.8": -1% |
| Effective Diameter |
Front: 0.89" / 22.6 mm
Rear: 0.59" / 15.1 mm |
| Operating Temperature |
14 to 122°F / -10 to 50°C |
| Flange Back Length |
0.69" / 17.526 mm |
| Filter Thread |
M37.5 x 0.5 mm |
| Certifications |
CE, as per Manufacturer |
| Dimensions (ø x L) |
1.54 x 1.71" / 39 x 43.5 mm |
| Weight |
3.47 oz / 98.4 g |
Packaging Info
| Package Weight |
0.26 lb |
| Box Dimensions (LxWxH) |
2.8 x 2 x 1.9" |
