Comprehensive USB 2.0 Extender with 4 Port-Hub up to 230'
Comprehensive CUE-104FE Overview
The USB 2.0 Extender with 4 Port-Hub up to 230' from Comprehensive is designed to extend four USB devices up to 230' from the location of your computer over a CAT5/5e/6 UTP cable. It eliminates the 16' distance limitation of standard USB cables. It is optimized for applications for digital signage, home network integration, industrial control, security USB camera, USB device-sharing, and KVM extension.
Items Included
- Comprehensive USB 2.0 Extender with 4 Port-Hub up to 230'
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Comprehensive CUE-104FE Specs
| Input Transmitter |
1x USB type A male
|
| Output Receiver |
4 x USB type A female
|
| Link Connector |
RJ-45 female
|
| Working Distance |
CAT5e: 164.0' (49.9 m)
CAT6: 230.0' (70.1 m) |
| USB Device Support |
Hi-Speed: 480 Mb/s
Full-Speed: 12 Mb/s Low-Speed: 1.5 Mb/s |
| Power Consumption |
4 port USB device can supply a total of 1500 mA
|
| Power Adapter |
5 VDC 2 A regulated
|
| Temperature |
Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20° to +85°C) Humidity: Up to 95% |
| Dimensions |
Transmitter: 1.00 x 1.00 x 2.76" (25.40 x 25.40 x 70.10 mm)
USB cable: 7.50" (190.50 mm) Receiver: 2.36 x 2.76 x 1.06" (59.94 x 70.10 x 26.92 mm) |
| Weight |
6.00 lb (2.72 kg)
|
| Package Weight |
1.25 lb
|
| Box Dimensions (LxWxH) |
4.6 x 4.4 x 3.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

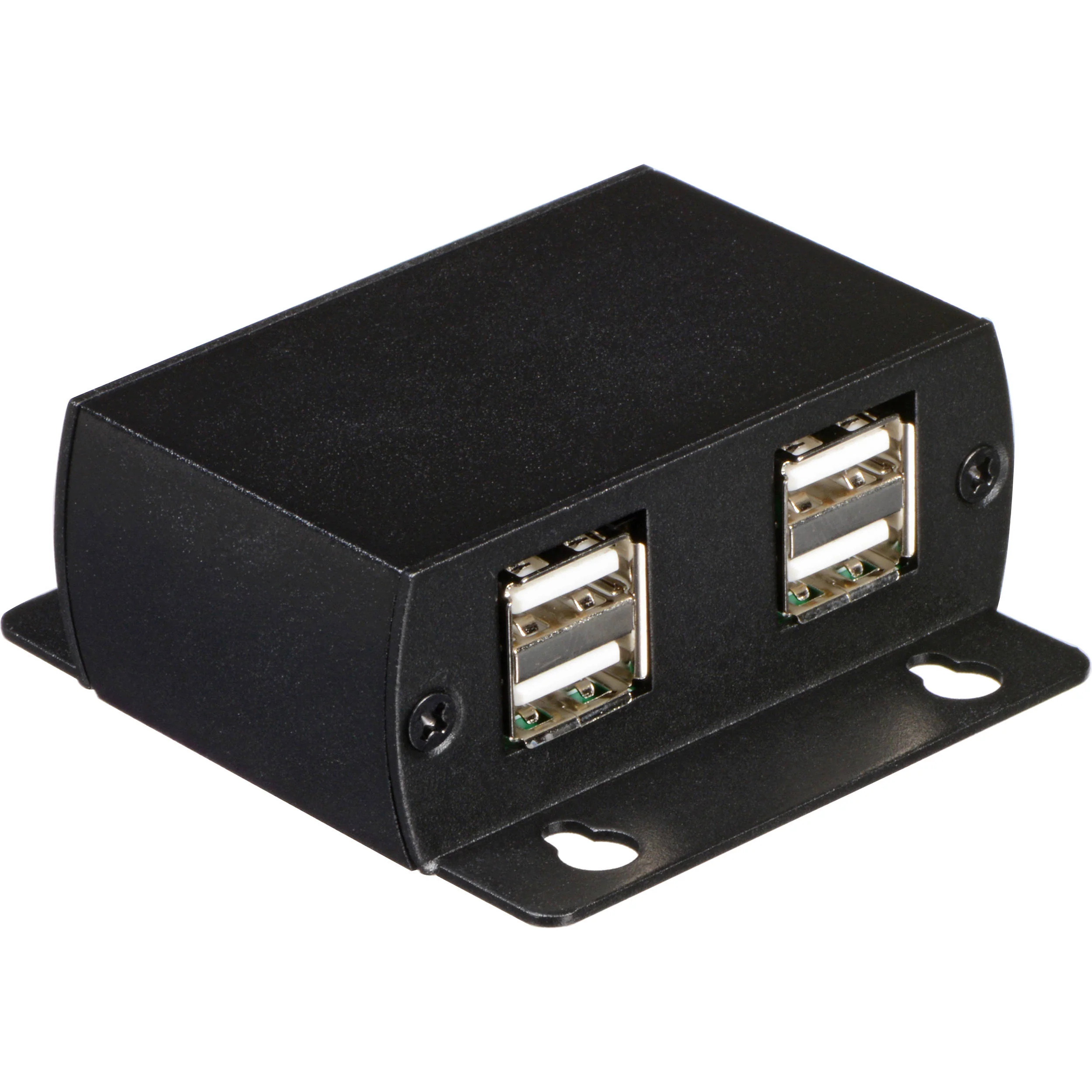

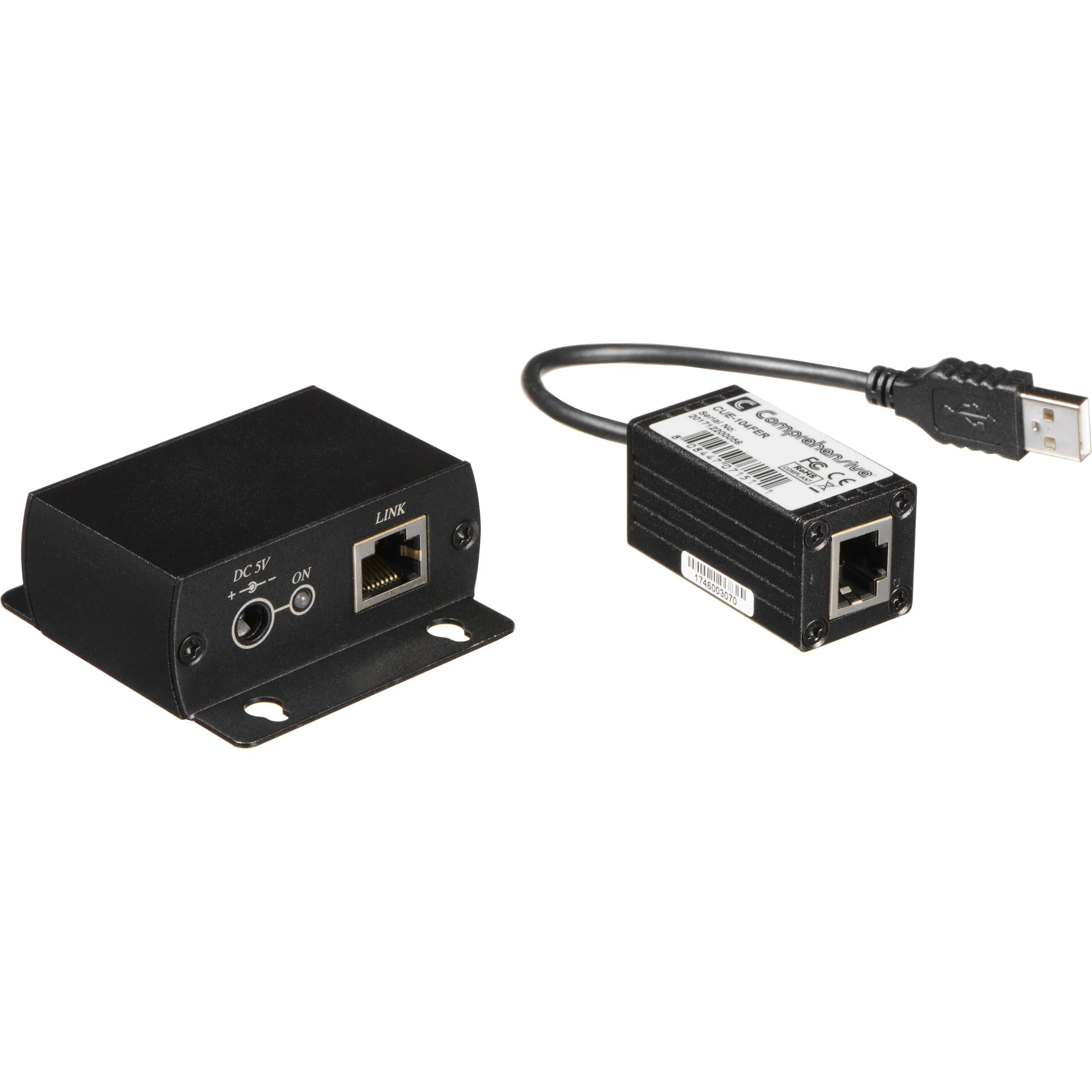

More Images
