CHAUVET PROFESSIONAL Rogue R2X Wash Color Wash Moving Head (RGBW)
CHAUVET PROFESSIONAL Rogue R2X Wash Overview
Rogue R1X Wash, R2X Wash & R3X Wash Sneak Peek by CHAUVET Professional

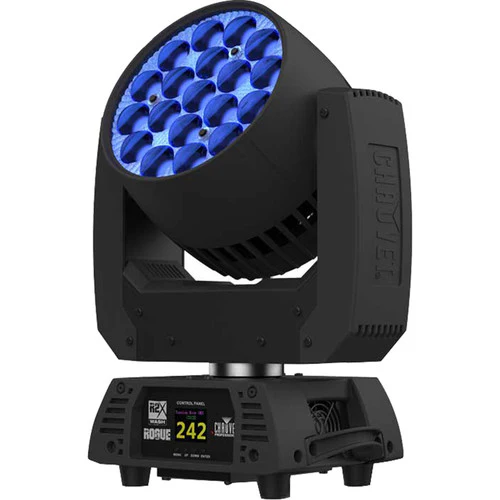

The CHAUVET Professional Rogue R2X Wash is the moving wash workhorse of the Rogue series fixtures, boasting an intense output from its 19 quad-color (RGBW) 25W LEDs. It can be used for theatrical productions and live events to create a broad spectrum of color washes and effects including motorized zoom, which offers a beam angle of 8 to 30° and a zoom angle of 12 to 49°. Other notable features include smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out, allowing for multiple units to be daisy-chained. The Rogue R2X ships with an Omega bracket and a powerCON power cord.
- Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- 19 RGBW LEDs, 25 W each
- 3- and 5-pin DMX input/output connections
- 5 zones of LED control for pixel mapping
- Unique lens design for excellent color blending
- Fast, smooth pan and tilt movement
- RDM-enabled for remote addressing and trouble shooting
- Selectable LED maximum output to match legacy Rogue R2 Washes
- 6 distinct dimming modes for advanced control
- Omega mounting bracket fits all Rogue and Maverick fixtures
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
UPC: 781462219383
In the Box
- CHAUVET PROFESSIONAL Rogue R2X Wash Color Wash Moving Head (RGBW)
- Neutrik powerCON Power Cord
- 2 x Omega Bracket with Mounting Hardware
- Limited 2-Year Warranty
CHAUVET PROFESSIONAL Rogue R2X Wash Specs
| Optical | Light Source: 19 LEDs (Quad-Color RGBW) 25 W, (1.5 A), 50,000 Hours Life Expectancy Color Temperature (Range): 2800 to 10000 K Beam Angle: 8 to 30° Field Angle: 12 to 49° Zoom Angle: 12 to 49° Lumens - Source: 10,300 Lumens - Output: 7300 Illuminance (12°): 10,000 Lux at 16.4' / 5 m Illuminance (49°): 840 Lux at 16.4' / 5 m PWM Frequency: 1200 Hz |
| Dynamic Effects | Pan and Tilt: 540/230° Pan and Tilt Ranges: Pan 180, 360, 540°; Tilt 90, 180, 230° Dimmer: Electronic Shutter/Strobe: Electronic Zoom: Motorized Strobe Rate: 0 to 20 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Curves: 4 Built-in Automated Programs: Yes Customizable Programs: No Recall Custom Programs: No |

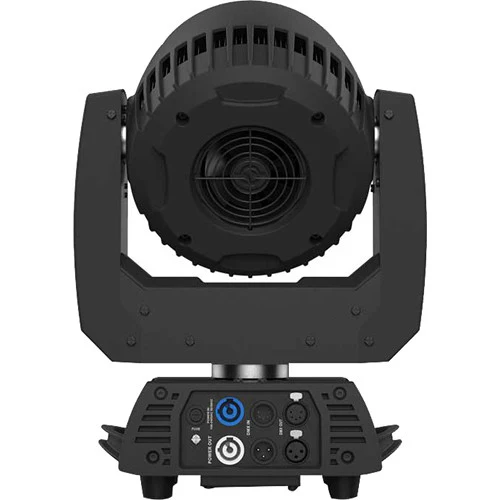

| Connections | Power Connection: Edison (Local) Plug to Neutrik powerCON Power Input: Neutrik powerCON Power Output: Neutrik powerCON Data Connectors: 3-and 5-pin XLR Cable Length Power: 4.9' / 1.5 m |
| Control | Control Protocol: DMX, RDM DMX Channels: 15, 17, 22, 33, 54, or 56 Modes/Personalities: Eight Personalities (15, 17, 22, 33, 33, 54, or 56) |
| Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging) Power Linking: 4 Units at 120 V; 8 Units at 208 V; 9 Units at 230 V Power and Current: 346 W, 2.8 A at 120 V, 60 Hz 337 W, 1.6 A at 208 V, 60 Hz 342 W, 1.4 A at 230 V, 50 Hz |
| Certifications | CE, MET IP Rating: IP20, Dry Location |
| Material of Construction | Housing Material: High-Impact Flame-Retardant Polymer |
| Dimensions (L x W x H) | 8.6 x 12.1 x 15.7" / 21.8 x 30.6 x 39.8 cm |
| Weight | 22.8 lb / 10.3 kg |
Packaging Info
| Package Weight | 26.865 lb |
| Box Dimensions (LxWxH) | 19.1 x 14.6 x 10.8" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
