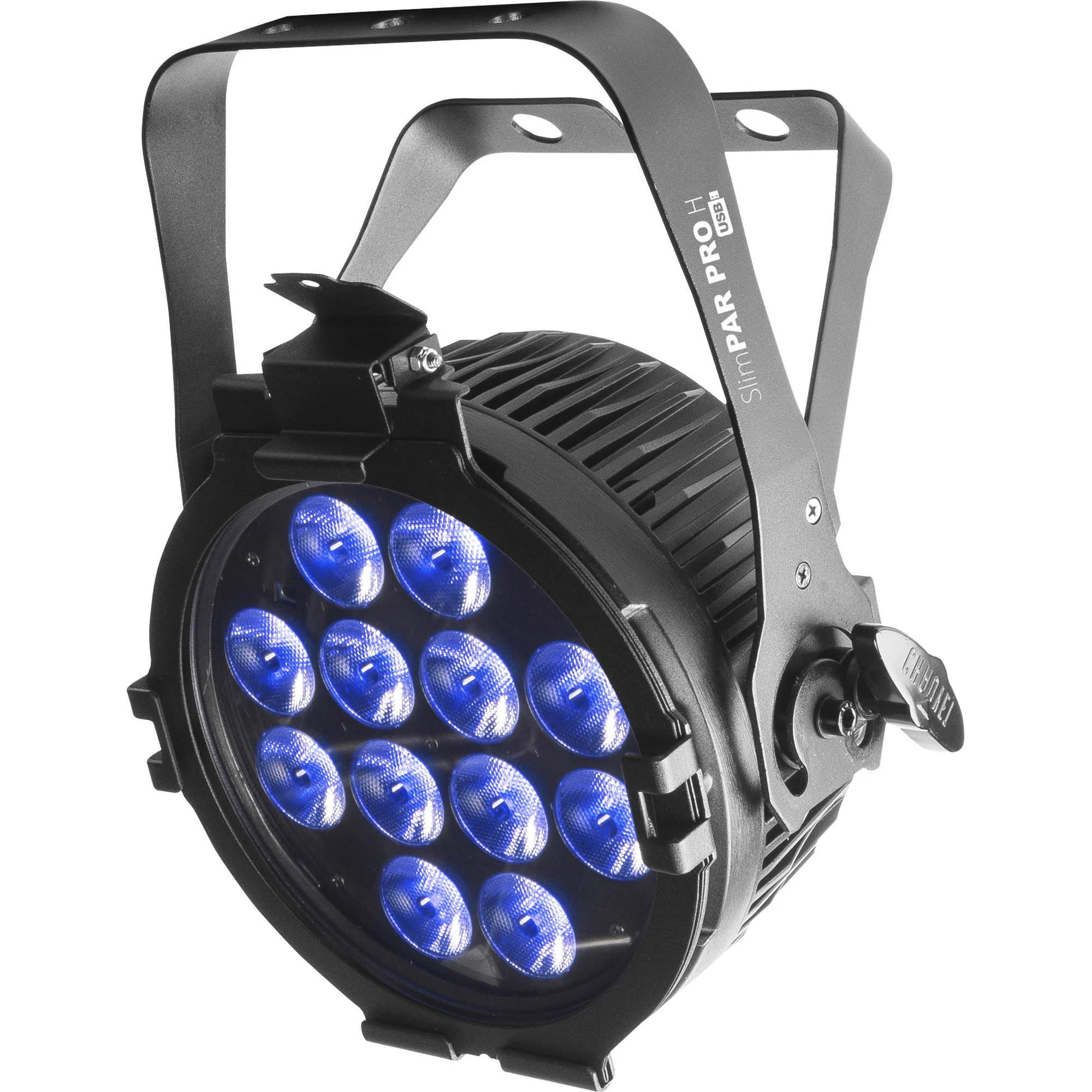

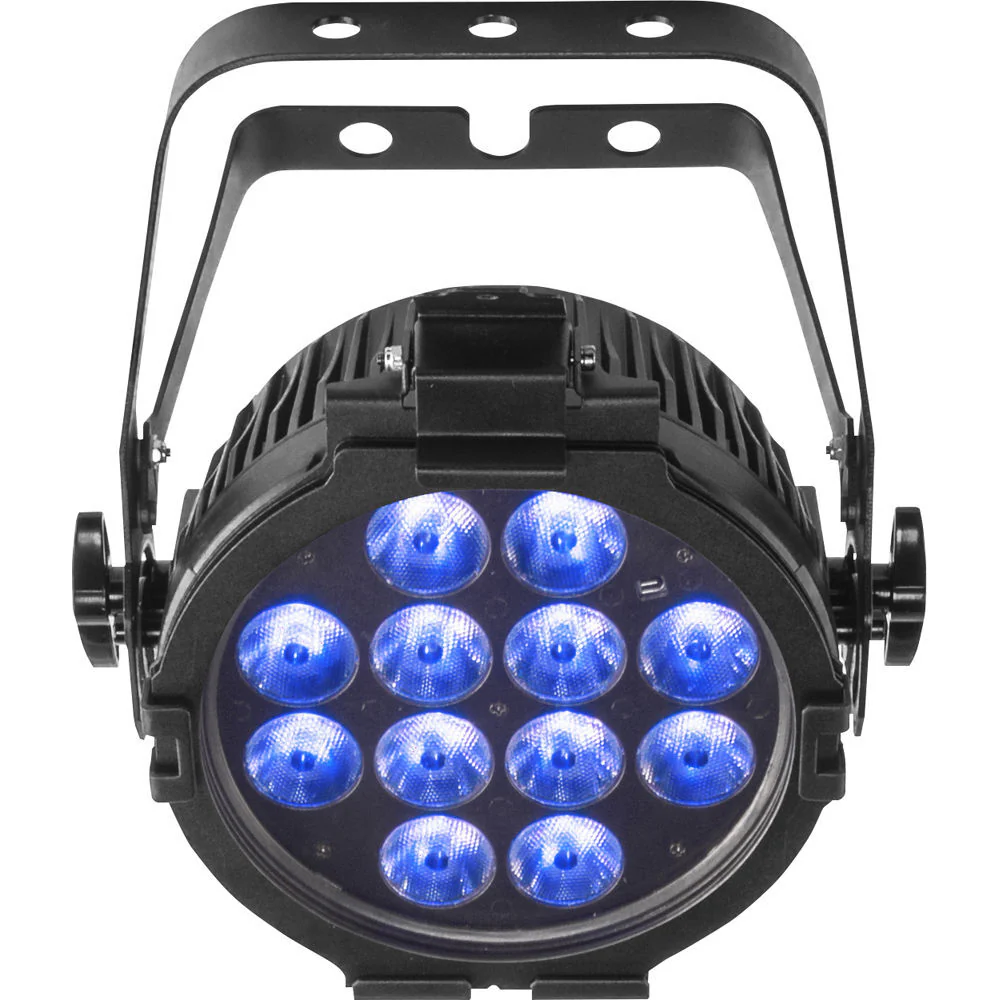

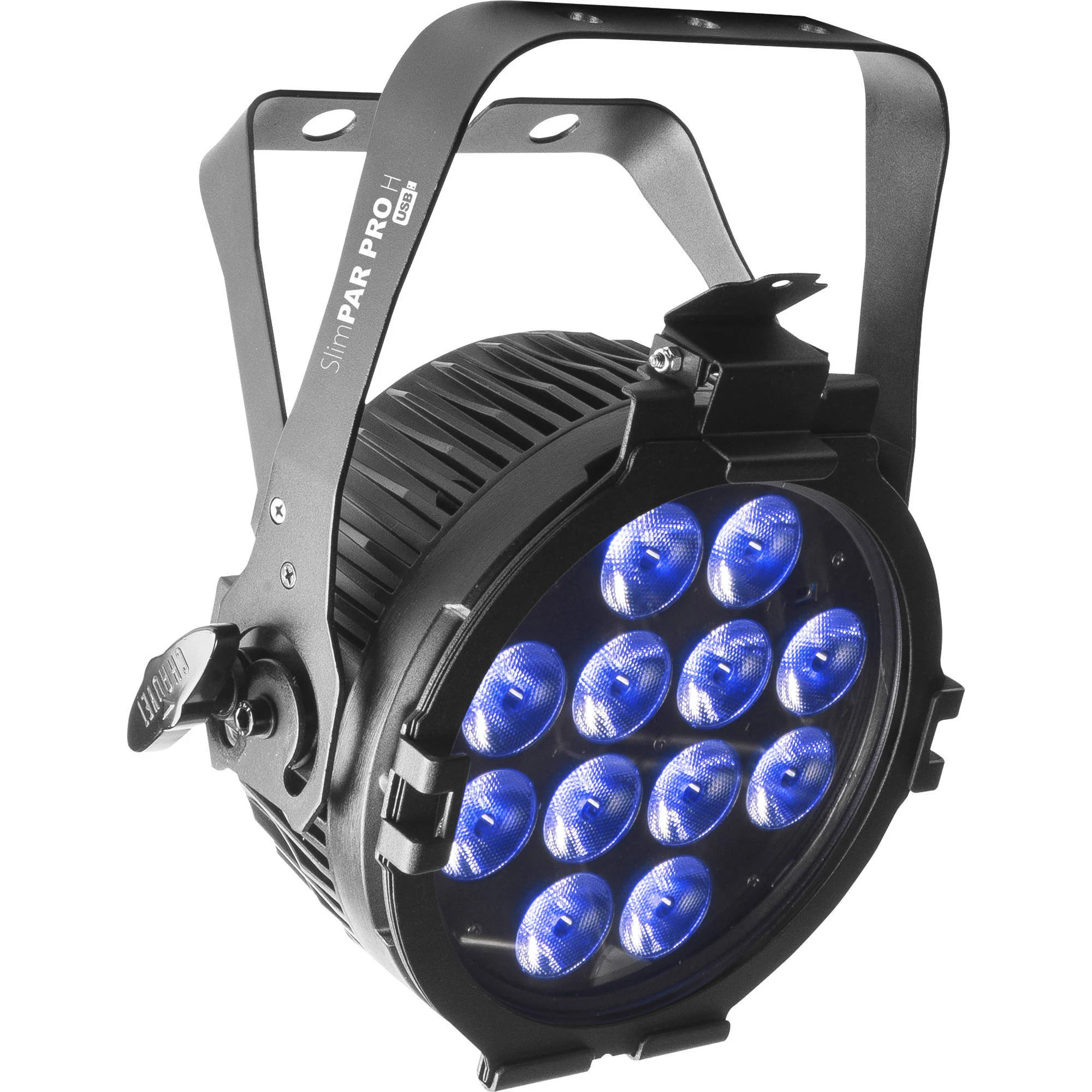

CHAUVET DJ SlimPAR Pro H USB Low-Profile RGBAW+UV LED PAR (Black, 4-Pack)
CHAUVET DJ Pro H USB Overview
Lighting designers in search of a quality wash fixture should check out this Kit which combines four black CHAUVET DJ SlimPAR Pro H USB Light Fixtures, a 4-pack of high-powered RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixtures designed to produce UV-infused color washes with a broad spectrum of colors and natural-looking color temperatures well suited for clubs, bars, mobile entertainers, rental houses, touring companies, and more. Each light features twelve 10W (6-in-1) hex-color LEDs that have a beam angle of 24? and a field angle of 41?. It provides wide washes for venue uplighting and heat-free illumination to performers onstage.
The SlimPAR Pro H USB is equipped with a USB port that accepts the D-Fi USB transceiver (available separately), enabling wireless DMX control and eliminates the need for DMX cables. The unit can also be wirelessly controlled via the IRC-6 remote (available separately). Easy to operate, the SlimPAR Pro H USB offers a standalone mode with automated programs such as Sound-Active, RGBAW+UV Dimmer, Strobe, and DMX mode for in-depth control. You can daisy-chain power for up to 5 units at 120V, or 10 units at 230V. The SlimPAR Pro H USB comes equipped with a dual-yoke bracket, which can be used for conventional mounting to a truss or lighting stand, or used to create a variable-angle floor stand. The fixture ships with a gel-frame holder and gel frame.
- 12 x 10W hex-color RGBAW + UV LEDs (red, green, blue, amber, white + ultraviolet) for high-power color washes
- Generates a broad spectrum of colors and achieves natural-looking color temperatures with 6-in-1 LED technology
- USB port lets you plug in the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- Low-profile design easily fits inside most trussing
- 24? beam angle, 41? field angle
- 3 x DMX channel modes (6, 7, or 12)
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs, sound-activated
- LED strobe effect
- Standalone or Master/Slave configuration
- Flicker-free operation suitable for on-camera use
- Ideal for quiet applications due to silent operation and no moving parts
- Daisy-chain power for up to 5 units at 120V, or 10 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- LED display with 4-button menu for easy navigation
- Compatible with IRC-6 wireless remote
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Compatible with most 7.5" barn doors (available separately) for added light control
- Includes a gel-frame holder and gel frame
Items Included
- 4 x CHAUVET DJ SlimPAR Pro H USB Low-Profile RGBAW+UV LED PAR (Black)
- Power Cord
- Gel Frame
- Gel Frame Holder
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ Pro H USB Specs
| Fixture Type |
PAR
|
| Light Source |
12x Color/UV LED - 10 W / 2.4 A
|
| Colors |
Amber, Blue, Green, Red, Ultraviolet, White
|
| Beam Angle |
24?
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 99 W / 1.4 A
230 VAC, 50 Hz: 96 W / 0.8 A |
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
PAR
|
| Light Source |
12x Color/UV LED - 10 W / 2.4 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Red, Ultraviolet, White
|
| Photometrics |
299 fc / 3218 Lux at 6.6' / 2 m
|
| Beam Angle |
24?
|
| Field Angle |
41?
|
| Shutter / Strobe |
Electronic
|
| Dimming |
Electronic, 0 to 100%
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
|
| Strobe Rate |
0 to 31 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
3 Mode(s):
6 / 7 / 12-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
D-Fi USB (with Optional Equipment)
IR Remote (with Optional Equipment) |
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
Proprietary Wireless
*Via Optional Adapter IR *Built-In |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse |
F 2 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 99 W / 1.4 A
230 VAC, 50 Hz: 96 W / 0.8 A |
| Power Linking |
5 Units at 120 VAC
10 Units at 230 VAC Total Current: 8 A |
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Gel Frame
1x Power Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Max Housing Temperature |
104?F / 40?C
|
| Cooling |
Convection
|
| Certifications |
CE, MET
|
| Dimensions |
10 x 3.9 x 11.4" / 253 x 98 x 290 mm
|
| Weight |
7.3 lb / 3.3 kg
|
| Package Weight |
9.5 lb
|
| Box Dimensions (LxWxH) |
13.4 x 11.7 x 5.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
