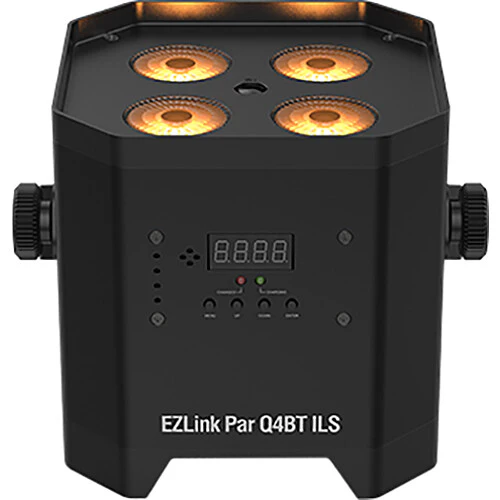

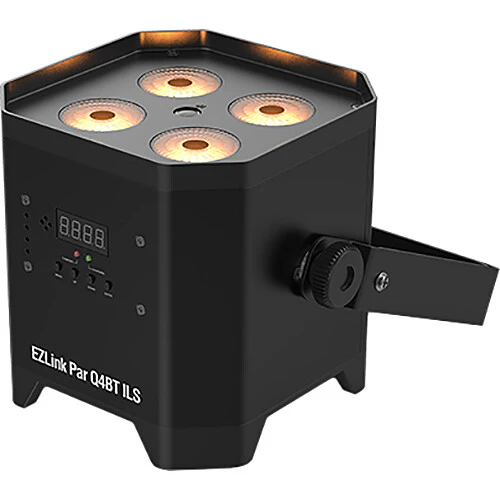

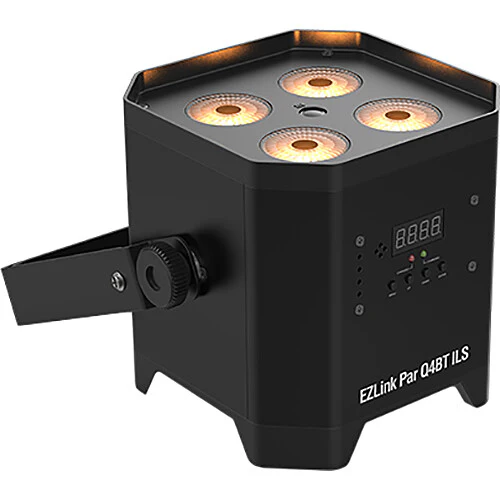

CHAUVET DJ EZLink Par Q4BT ILS TRUE Wireless RGBA LED Par with Bluetooth
CHAUVET DJ PAR Q4 BT ILS Overview
Enjoy total freedom with the CHAUVET DJ EZLink Par Q4BT ILS, a battery-powered true wireless RGBA (red, green, blue, amber) LED PAR fixture with automated color mixing, full DMX control, and an integrated Bluetooth receiver. Designed to produce rich color washes for venue up-lighting or dance-floors, mobile DJs can quickly position the fixture anywhere in the venue without running DMX or power cables. The innovative ILS technology allows this powerful par to be used with the ILS ecosystem, which makes creating coordinated light shows across an unlimited number of different fixture types fast and easy.
The built-in battery lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the built-in kickstand, which lets you adjust the direction of the uplight. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead. Operate as a standalone device with dynamic effects, including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX (4 or 8 channels) or used in a primary/secondary configuration to coordinate multiple fixtures without the need for a controller. Additionally, the fixture is compatible with the free BTAir application for smartphones and tablets, which allows you to control the fixture from up to 150' away. The EZLink Par Q4 BT is compatible with the optional IRC-6 remote control and ships with a power cord.
- 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in Bluetooth wireless technology
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless master/slave or DMX control
- Control directly from a smartphone or tablet without any additional hardware
- Convenient wireless non-DMX control using the IRC-6 remote
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Generate eye-catching effects with sound-activated and automated programs
- Fits best in the CHS-40 VIP gear bag
Items Included
- CHAUVET DJ EZLink Par Q4BT ILS TRUE Wireless RGBA LED Par with Bluetooth
- Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ PAR Q4 BT ILS Specs
| Fixture Type |
PAR
|
| Light Source |
4x Color LED - 6 W / 3 A
|
| Colors |
Amber, Blue, Green, Red
|
| Beam Angle |
15°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 35 W / 0.5 A
230 VAC, 50 Hz: 34 W / 0.3 A |
| Mounting |
Ceiling Scissor Clips
|
| Fixture Type |
PAR
|
| Light Source |
4x Color LED - 6 W / 3 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Red
|
| Photometrics |
169 fc / 1829 Lux at 6.6' / 2 m
|
| Beam Angle |
15°
|
| Field Angle |
34°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Sound-Active, Standalone, Static Color
|
| Macros / Programs |
Auto-Program
Sound-Active |
| Effects |
Strobe
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Max Coverage Distance |
150' / 45.7 m
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
4 / 8-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
IR Remote (with Optional Equipment)
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: BTAir Functionality: Remote Control |
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x USB-A Network Input |
| Wireless |
Proprietary Wireless
*Via Optional Adapter Bluetooth 4.2 / IR |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x Edison |
| Fuse |
1 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 35 W / 0.5 A
230 VAC, 50 Hz: 34 W / 0.3 A |
| Power Linking |
16 Units at 120 VAC
29 Units at 230 VAC Total Current: 8 A |
| Battery Type |
Lithium
|
| Approximate Battery Life |
Single Color: Up to 20 Hours
All On: Up to 8 Hours |
| Battery Charging Time |
4 Hours
|
| Environmental Resistance |
No
|
| Operating Conditions |
Up to 104°F / 40.0°C
|
| Mounting |
Ceiling Scissor Clips
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, UKCA, RoHS, FCC
|
| Dimensions |
7.2 x 5.7 x 5.7" / 18.3 x 14.5 x 14.5 cm
|
| Weight |
3.2 lb / 1.5 kg
|
| Package Weight |
4.645 lb
|
| Box Dimensions (LxWxH) |
10.6 x 8 x 7.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
