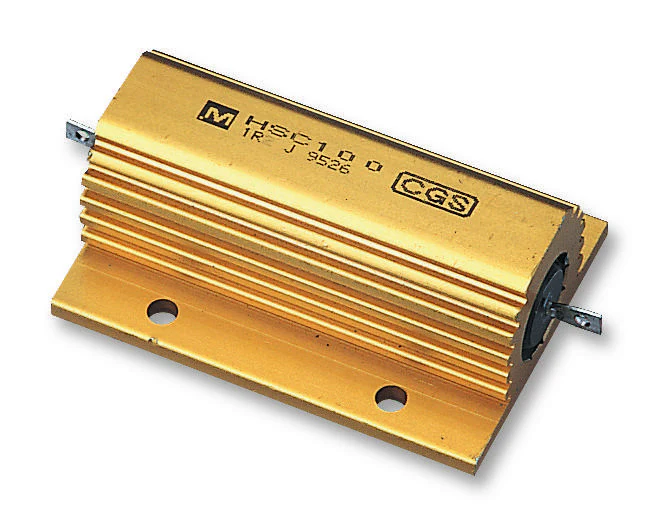

CGS - TE CONNECTIVITY HSC10010RJ Resistor, Solder Lug, 10 ohm, 100 W, 1.9 kV, � 5%, HSC Series, Wirewound
CGS - TE CONNECTIVITY HSC10010RJ Resistor, Solder Lug, 10 ohm, 100 W, 1.9 kV, � 5%, HSC Series, Wirewound
- High power dissipation of 100W (with heat sink)
- Resistance value ranges from 0.05ohm to 100Kohm
- Working voltage is 1900V
- Low inductance
- �10%, �5%, �3%, �2%, �0.5% & �0.25% tolerance
- Temperature coefficient is 50ppm/�C(below 100R), 30ppm/�C( above 100R)
- Dimensions is H= 26mm, W= 47.5mm, L= 65.5mm with 35mm x 37mm fixing centres
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 50ppm/�C |
| Power Rating | 100W |
| Resistance | 10ohm |
| Resistance Tolerance | � 5% |
| Resistor Element Type | Wirewound |
| Product Range | HSC Series |
| Resistor Terminals | Solder Lug |
| Voltage Rating | 1.9kV |
Other details
| Brand | CGS - TE CONNECTIVITY |
| Part Number | HSC10010RJ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $24.34
-70%$24.34
$7.30CGS - TE CONNECTIVITY HSC10010RJ Resistor, Solder Lug, 10 ohm, 100 W, 1.9 kV, � 5%, HSC Series, Wirewound
