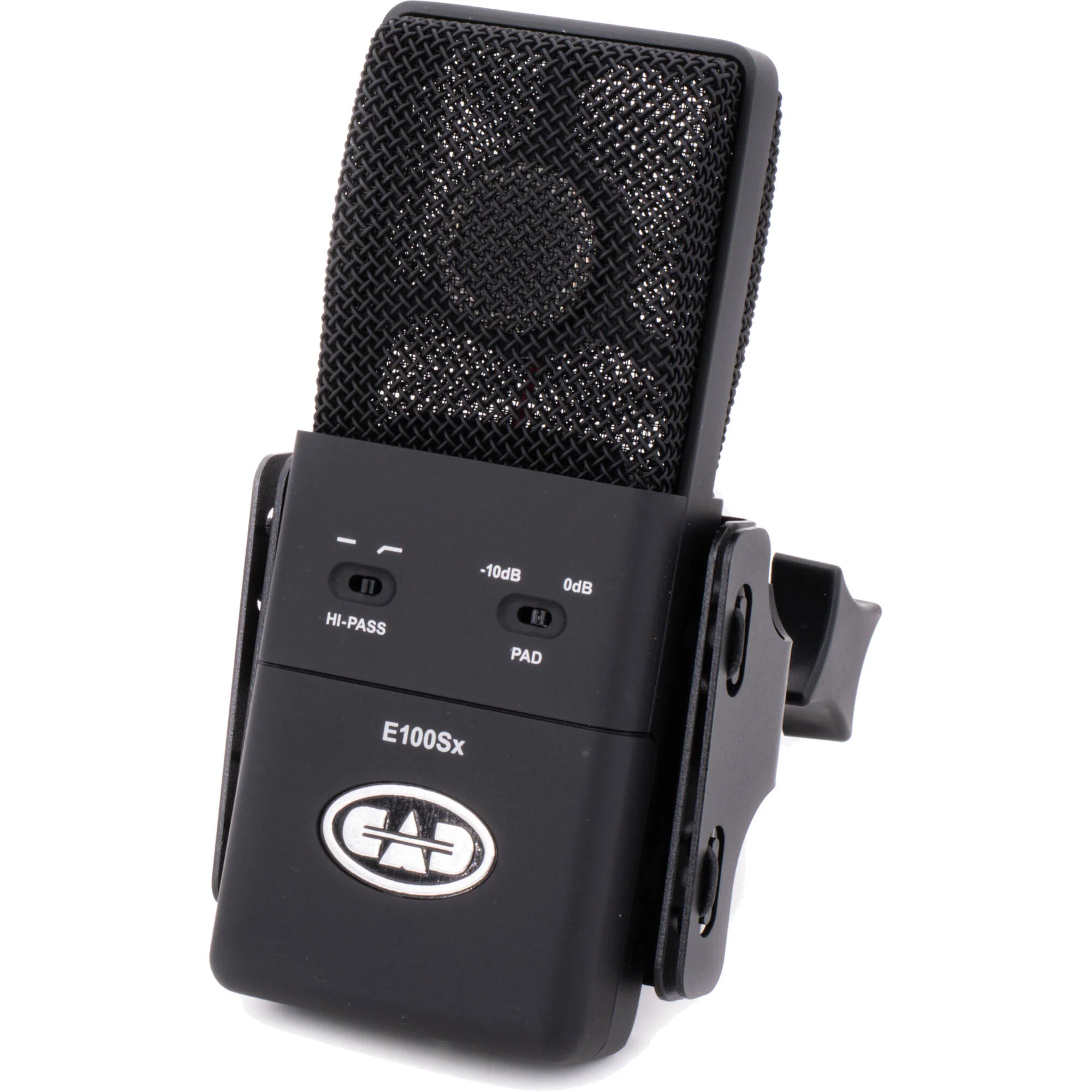

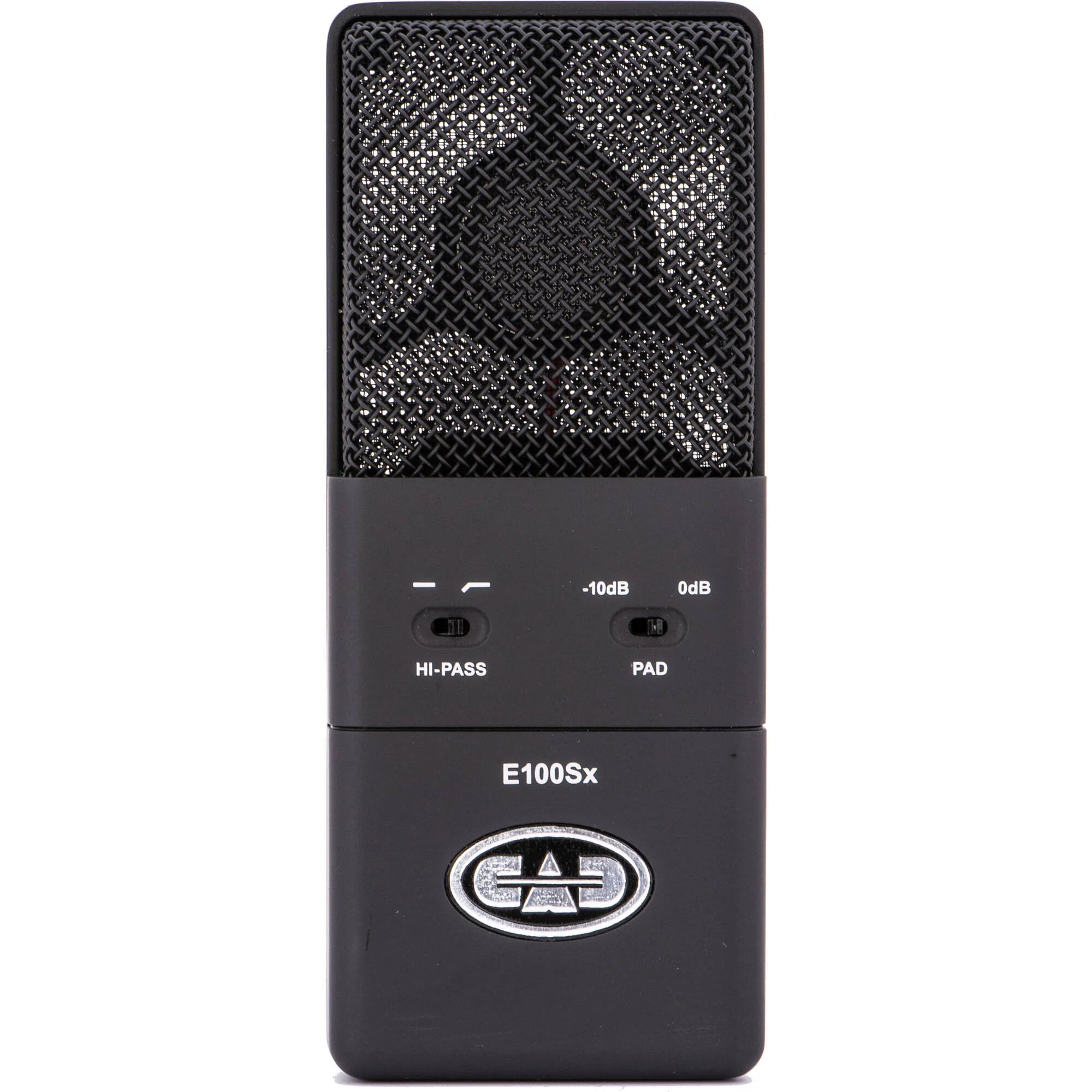

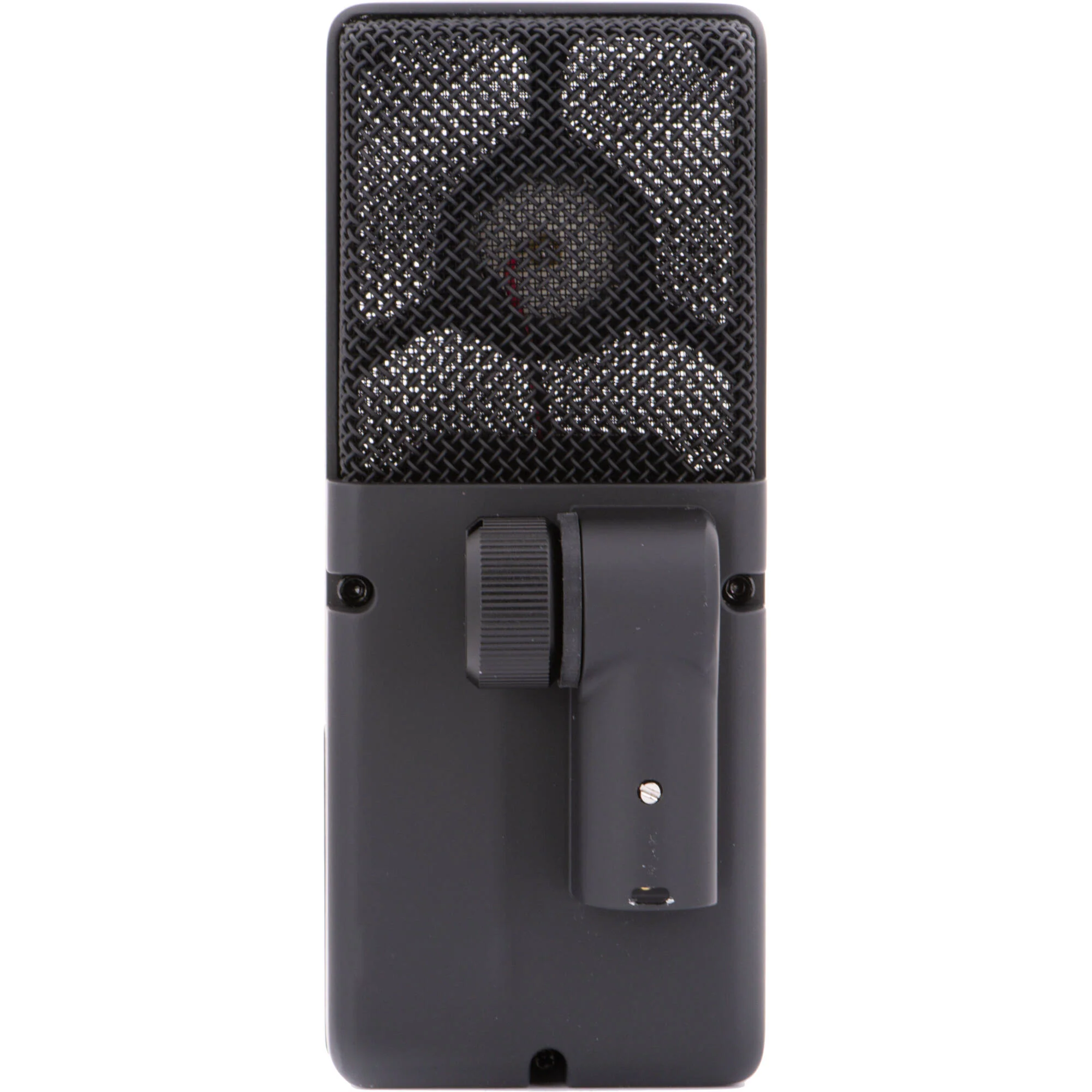

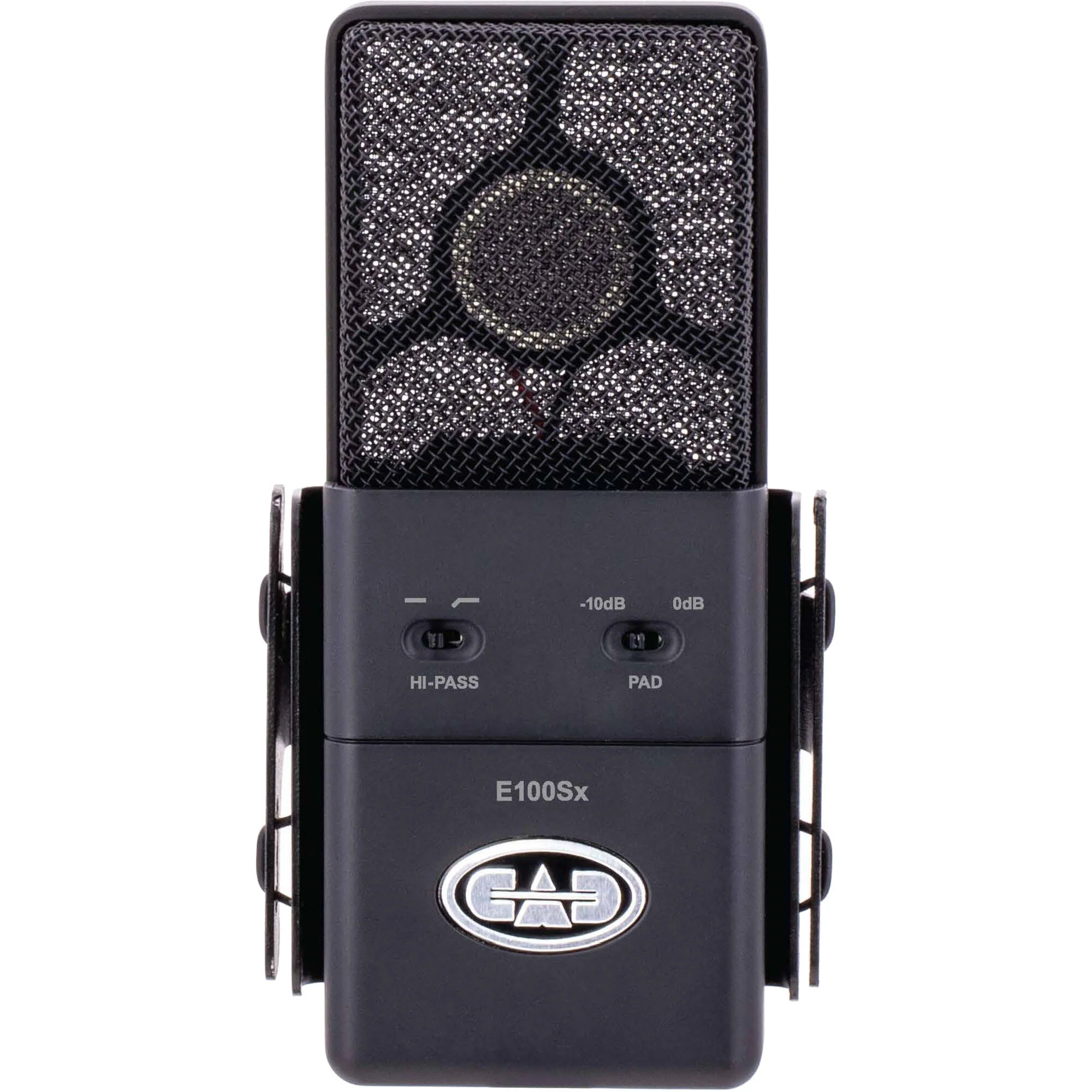

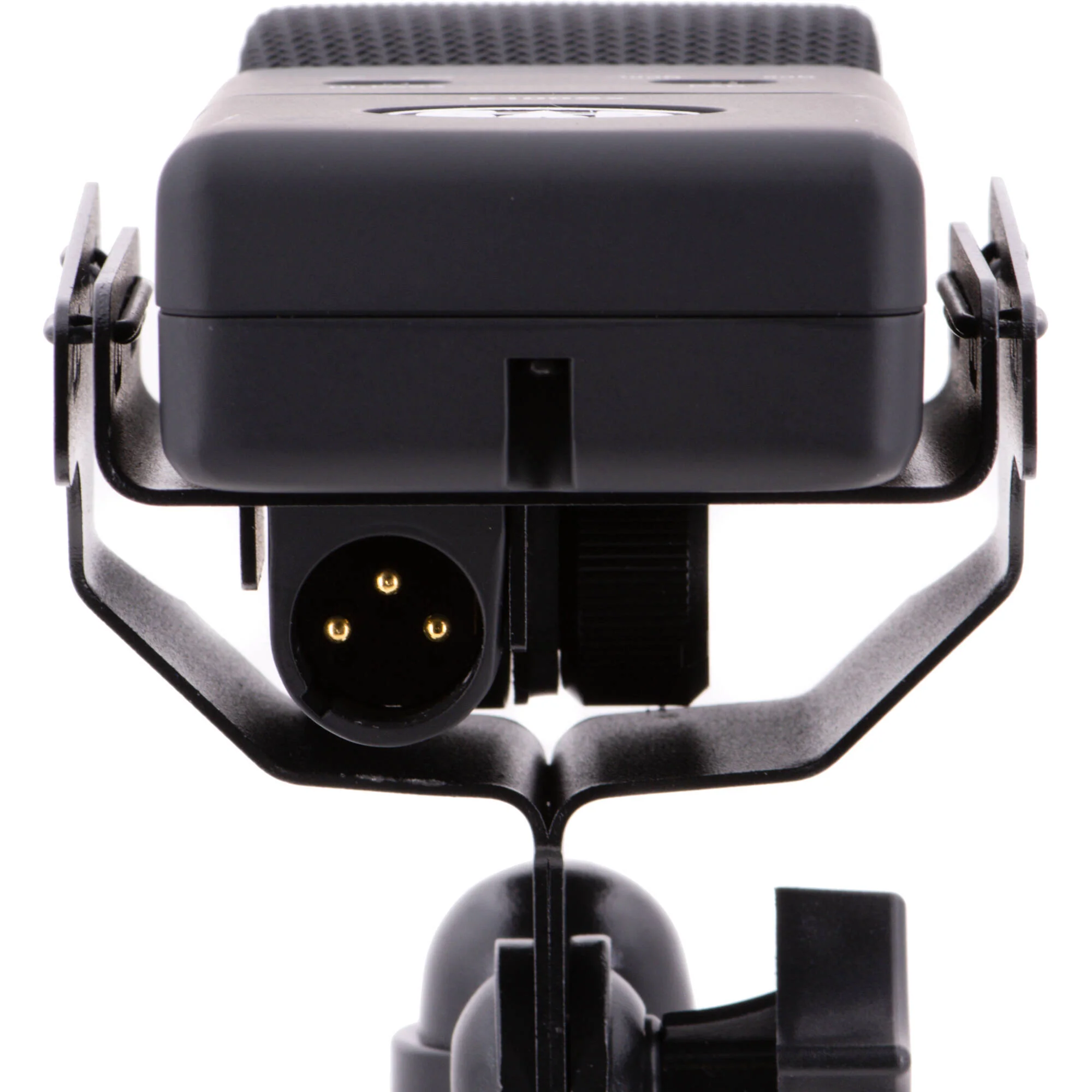

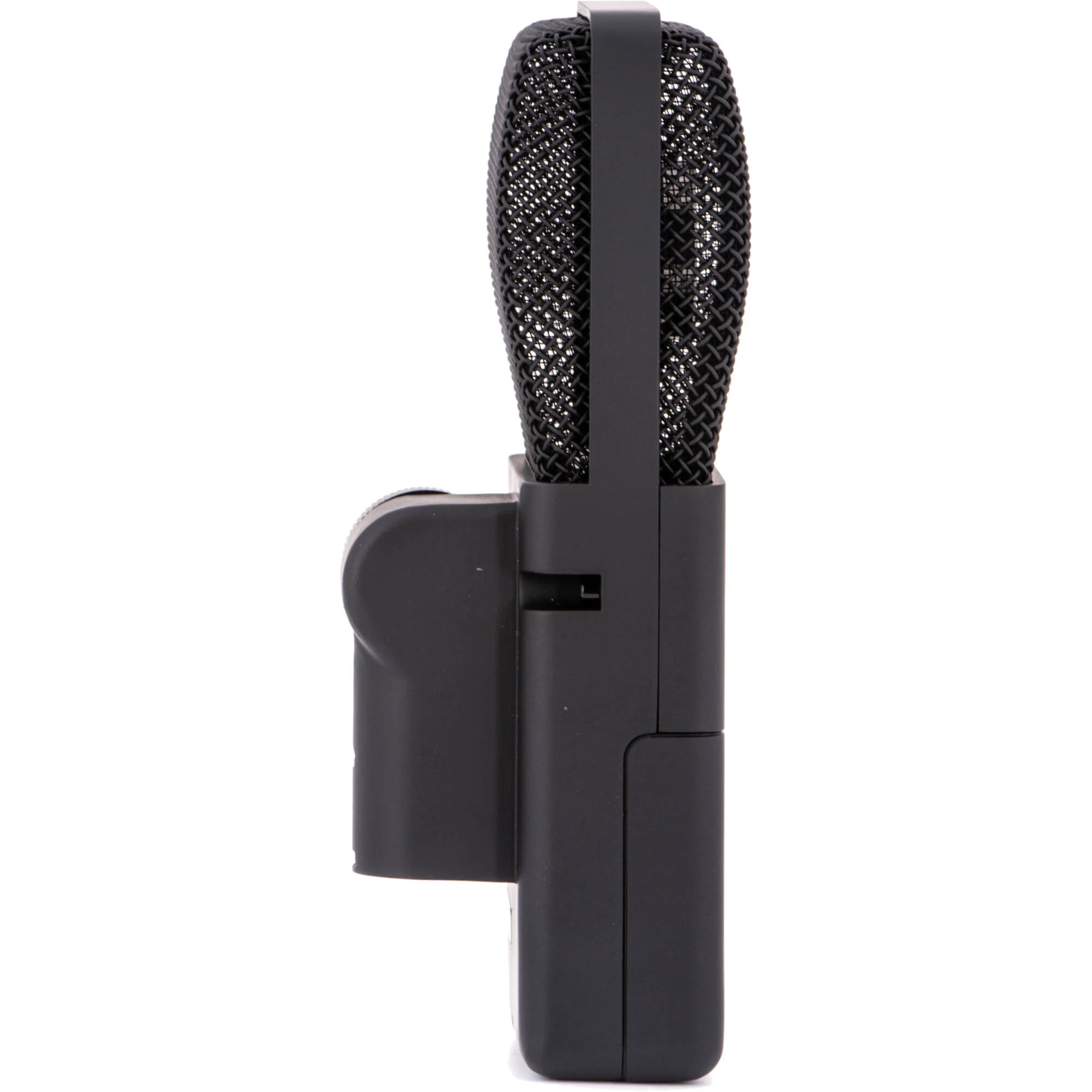

CAD E100Sx Large-Diaphragm Supercardioid Condenser Microphone
CAD E100SX Overview
The CAD E100Sx is a versatile microphone with a large-diaphragm condenser element that can be used to record a wide variety of sources including vocals, percussion, and acoustic instruments. This fourth-generation version of the E100 features a narrow supercardioid pickup pattern that focuses audio capture tightly in front of the mic, helping to reject unwanted background sounds and making it well suited to studio, voice-over, and podcasting applications.
The mic's sensitive 1" nickle-plated diaphragm has been engineered to provide accurate phasing for a full, rich vocal sound with a hint of vintage coloration and extended low-end response. An optional 100 Hz high-pass filter with a 6 dB per octave slope can be engaged to filter out those low frequencies, if you prefer. The E100Sx offers a 10 dB pad switch for use on louder audio sources, allowing the mic to handle up to 136 dB SPL.
The included shockmount offers a low-profile appearance and absorbs vibrations to reduce rumbling noise, helping the sensitive, low-noise capsule to deliver detailed, nuanced recordings. A 48V phantom power source is required to power the condenser microphone element.
In the Box
- CAD E100Sx Large-Diaphragm Supercardioid Condenser Microphone
- Shockmount
CAD E100SX Specs
| Primary Applications | Studio Recording, Podcast |
| Form Factor | Large Diaphragm Mic / Stand/Boom Mount |
| Intended Sound Sources | Vocals, Speech/Voice Over, Instrument |
| Sound Field | Mono |
| Capsule | 1 x Condenser |
| Diaphragm | 1" / 25.4 mm (Condenser) |
| Polar Pattern | Supercardioid |
| Orientation | Side Address |
| Circuitry | Solid-State |
| Pad | -10 dB |
| High-Pass Filter | 100 Hz, 6 dB/Octave |
| Tone Adjustment | None |
| Gain Adjustment | None |
| On-Board Controls | High-Pass Filter, Pad |
| Frequency Range | 20 Hz to 18 kHz |
| Maximum SPL | 136 dB SPL |
| Impedance | 150 Ohms |
| Sensitivity | -32 dBV |
| Equivalent Noise Level | 9.5 dB A-Weighted |
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector | None |
| Operating Voltage | 48 V (Phantom Power) |
| Operating Current Consumption | 1.6 mA (Phantom Power) |
| Mounting | Shockmount (with Included Hardware) |
| Mounting Thread Size | 5/8"-27 Female |
| Included Case | None |
| Included Filters | None |
| Certifications | RoHS *as per Manufacturer |
| Dimensions | H: 6.1 x W: 2.9 x L: 5.44" / H: 15.4 x W: 7.37 x L: 13.81 cm (Microphone, with Mount) |
| Weight | 1.98 lb / 0.9 kg |
| Package Weight | 2.05 lb |
| Box Dimensions (LxWxH) | 7.6 x 5.2 x 4.8" |
