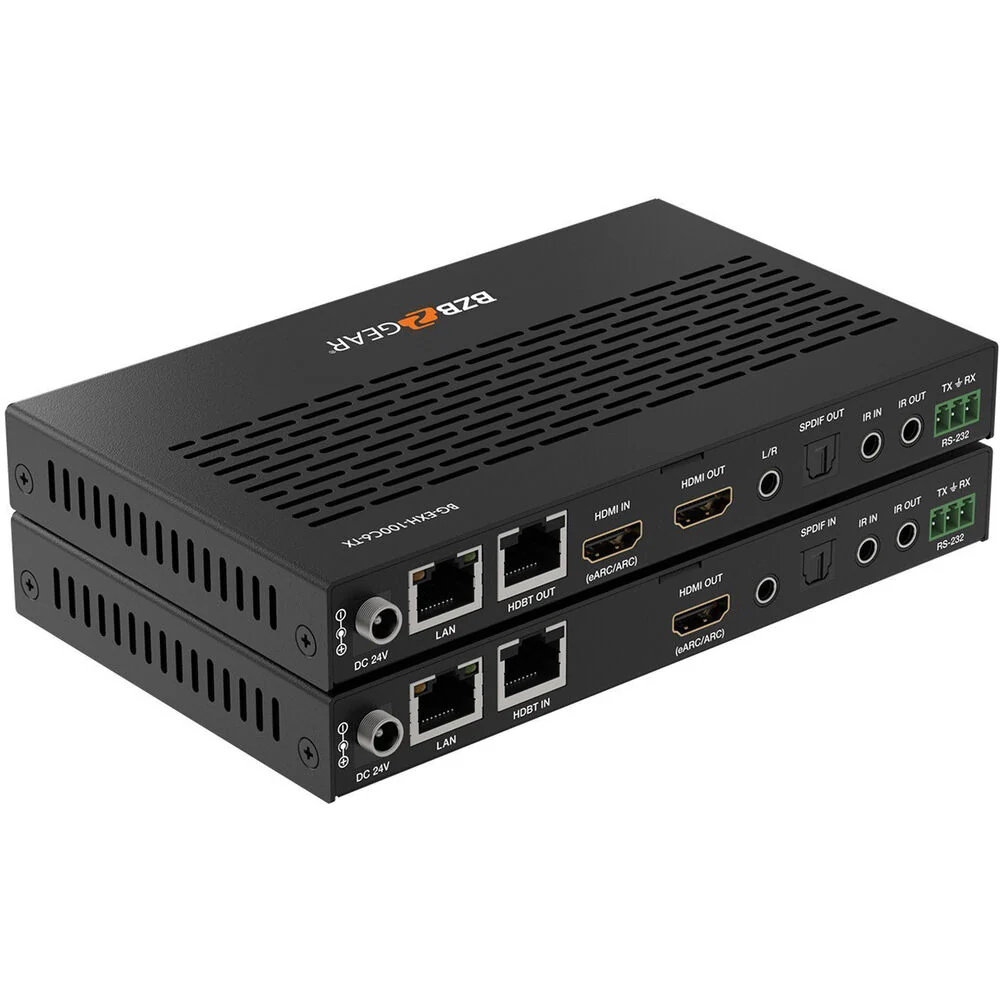

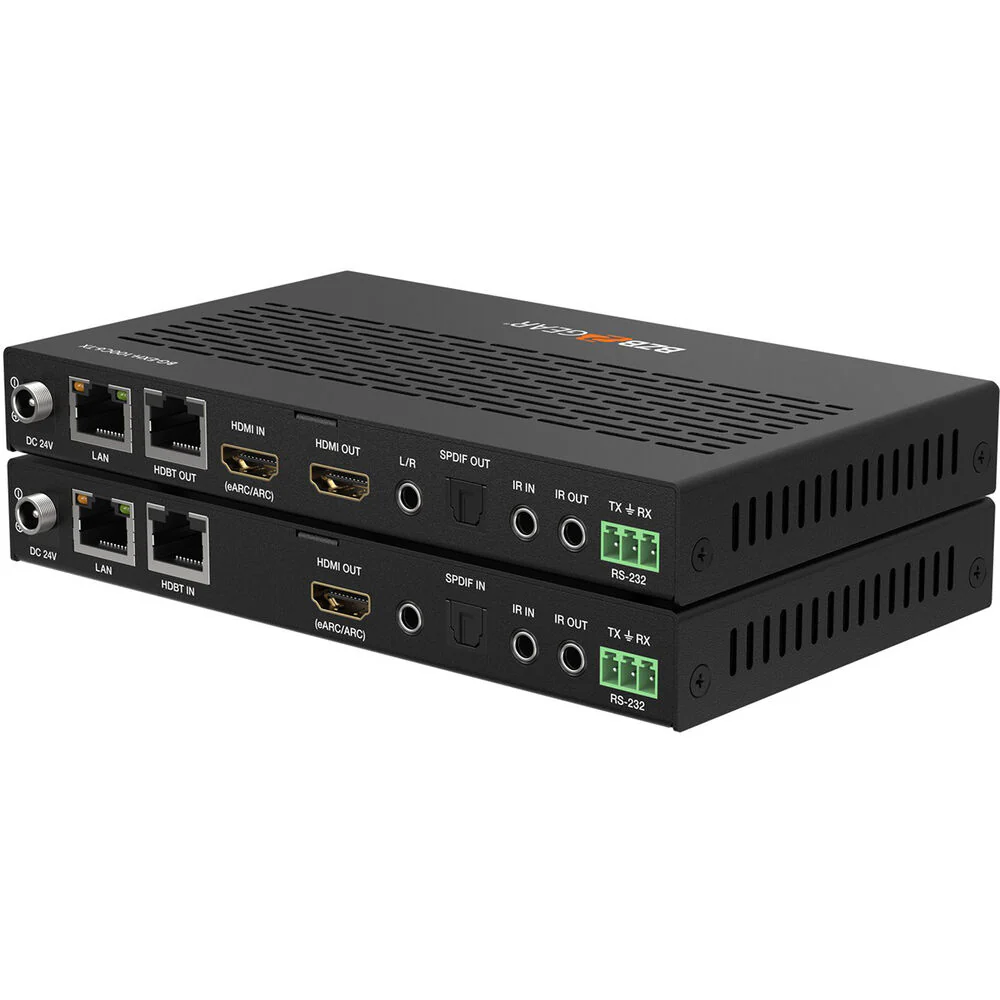

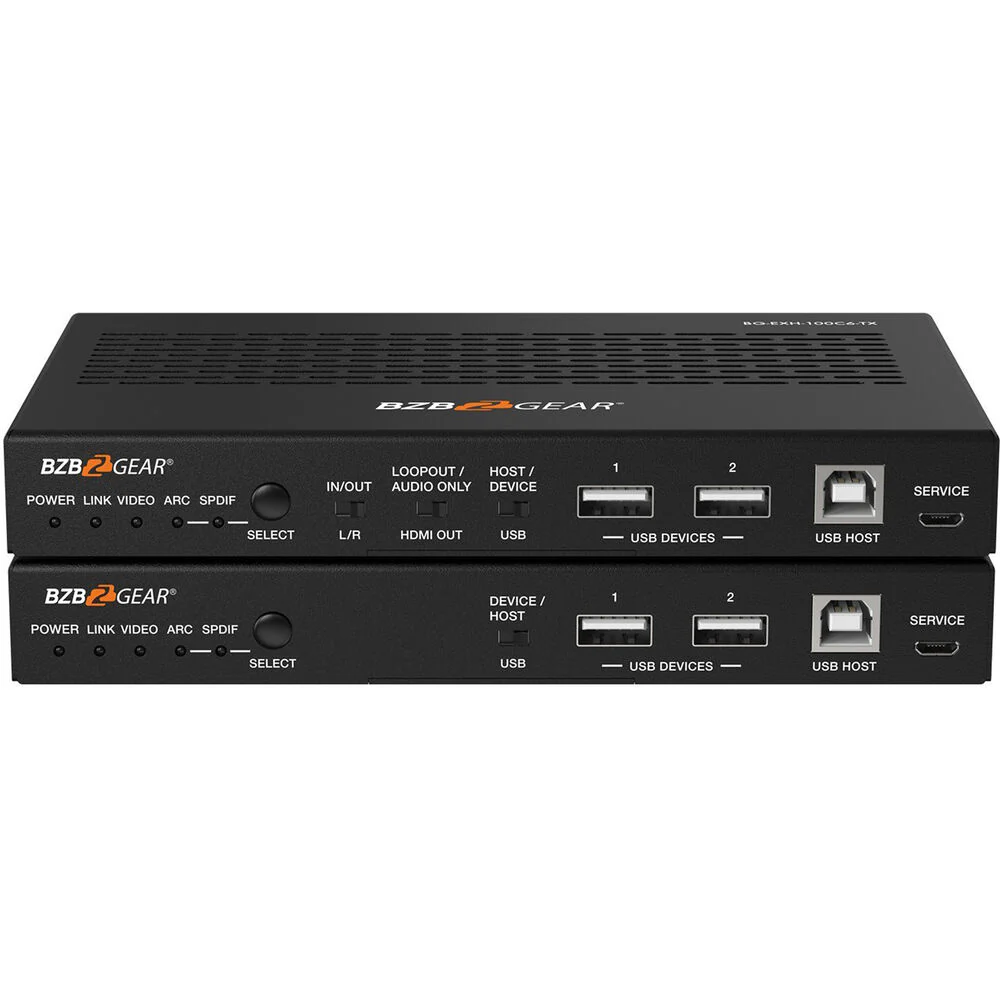

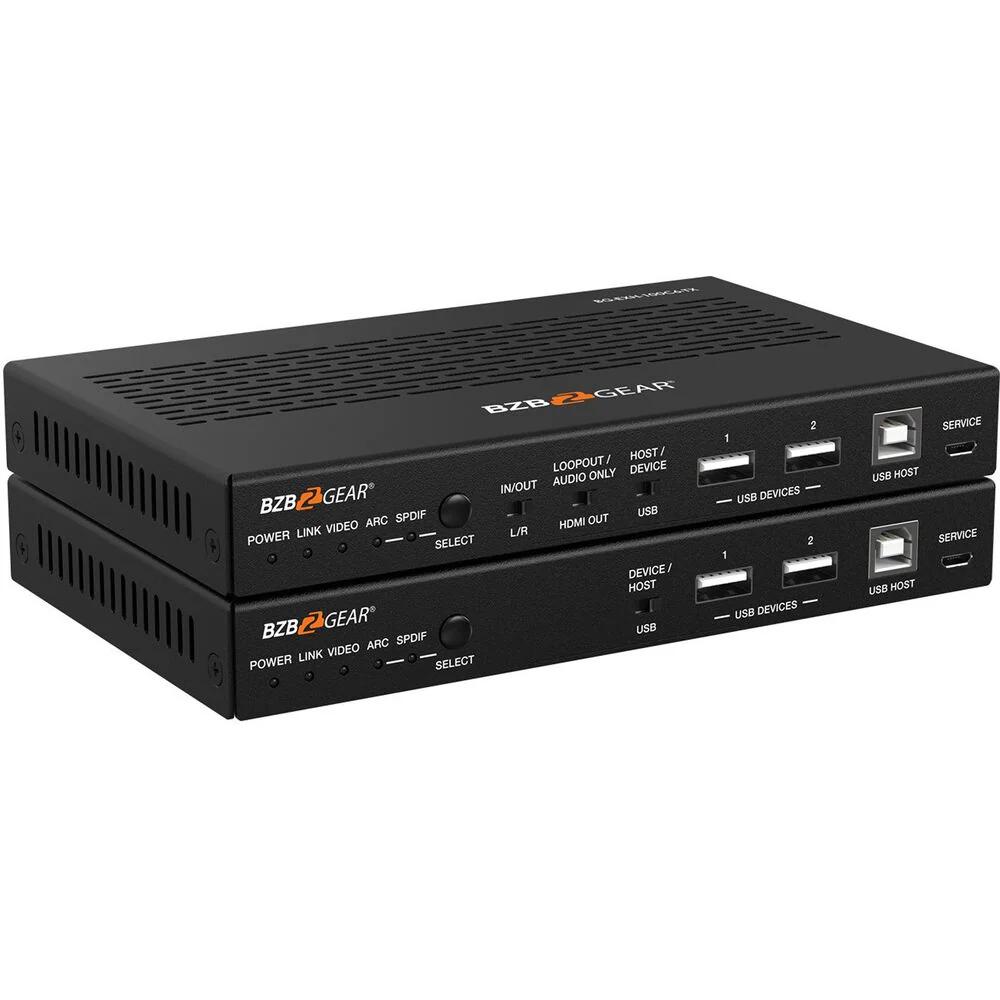

BZBGEAR 4K 18Gbps HDMI HDBaseT 3.0 Extender with IR/EARC/ARC/POC/RS-232/Ethernet/USB and Audio Embedding/De-
BZBGEAR 4K 18Gbps HDMI HDBaseT 3.0 Extender with IR/EARC/ARC/POC/RS-232/Ethernet/USB and Audio Embedding/De-
BZBGEAR EXH-100C6 Overview
Guides & Manuals
BZBGEAR EXH-100C6 Specs
Transmitter Interfaces
| Inputs |
1 x HDMI (HDMI 2.0b)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1 x HDMI (HDMI 2.0b)
1 x RJ45 (HDBaseT) 1 x TOSLINK (S/PDIF) 1 x 1/8" / 3.5 mm TRS (Stereo Audio) |
| Transmitter Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 1 x Mini-USB Update 2 x USB-A Device 1 x RJ45 10/100/1000 Ethernet |
Receiver Interfaces
| Inputs |
1 x RJ45 (HDBaseT)
1 x TOSLINK (S/PDIF) |
| Outputs |
1 x HDMI (HDMI 2.0b)
1 x 1/8" / 3.5 mm TRS (Stereo Audio) |
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 1 x Mini-USB Update 1 x USB-B Host 2 x USB-A Device 1 x RJ45 10/100/1000 Ethernet |
Standards
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
No
|
Transmission
| Max Transmission Distance |
328.1' / 100 m (via Cat 6a/7)
|
| Video Format |
HDMI (4:4:4/4:2:2/4:2:0 RGB, YCC)
UHD 4K: 60 fps |
| Audio Format |
S/PDIF
Analog |
| DTS Compatibility |
DTS, DTS 96/24, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 6a/7
|
Power
| Transmitter Power Connector |
1 x Barrel (24 VDC) Input
|
| Receiver Power Connector |
1 x Barrel (24 VDC) Input
|
| PoE Support |
PoE Proprietary
|
| Transmitter Power Consumption |
Power Supply: 100 to 240 VAC
Device: 24 VDC at 1 A (15.36 W) |
| Receiver Power Consumption |
Power Supply: 100 to 240 VAC
Device: 24 VDC at 1 A (15.36 W) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
24 to 284°F / -4 to 140°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
General
| Transmitter Dimensions |
6.7 x 4 x 0.9" / 170 x 102 x 22 mm
|
| Receiver Dimensions |
6.7 x 4 x 0.9" / 170 x 102 x 22 mm
|
| Transmitter Weight |
0.9 lb / 425 g
|
| Receiver Weight |
1 lb / 437 g
|
Packaging Info
| Package Weight |
3 lb
|
| Box Dimensions (LxWxH) |
11.5 x 9.4 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$1,352.60
