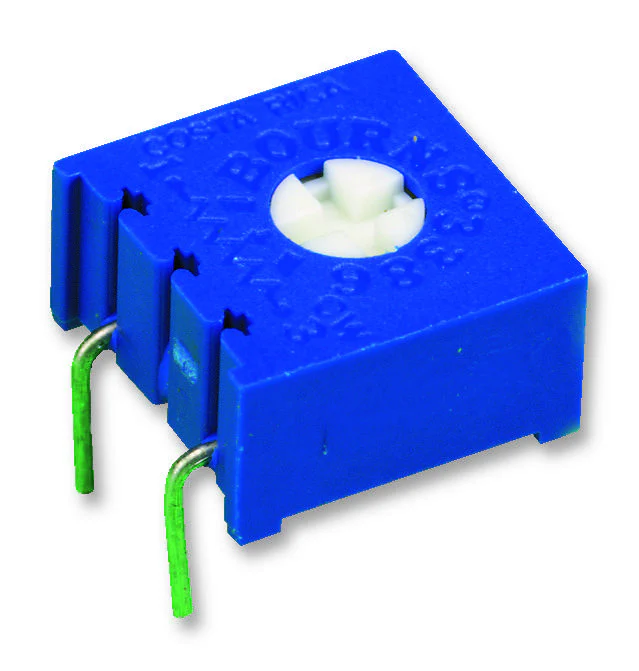

BOURNS 3386G-1-201LF Trimmer Potentiometer, 200 ohm, 500 mW, � 10%, 3386G Series, 1 Turns, Through Hole
BOURNS 3386G-1-201LF Trimmer Potentiometer, 200 ohm, 500 mW, � 10%, 3386G Series, 1 Turns, Through Hole
- 3/8inch square potentiometer
- Top adjust type (F,G,K,P,R,U,V,Y) or side adjust type (B,C,J,X,H,S,W)
- Resistance value ranges from 10 ohm to 2Mohm
- �10% tolerance
- Temperature coefficient TCR of �100ppm/�C
- Operating temperature range -55�C to +125�C
- Power rating is 0.5W
- Rotational life of 200 cycles
- Available with a knob for finger adjust
- Available with extended shaft and cross slot rotor
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 500mW |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | 3386G Series |
| Track Resistance | 200ohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3386G-1-201LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
