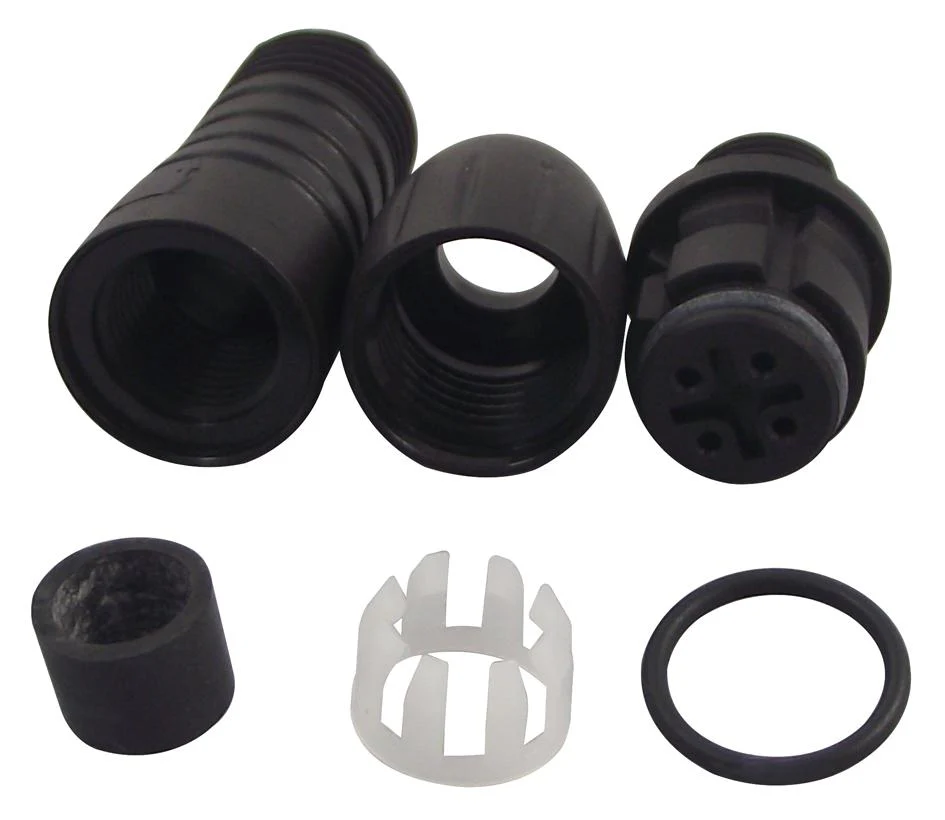

Binder 99-9210-00-04 99-9210-00-04 Circular Connector 620 Series Cable Mount Receptacle 4 Contacts Solder Socket

The 99-9210-00-04 is a 4-contact 125V/2.5A unshielded female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and housing. The 620 series receptacle with snap locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 5mm cable outlet.

• 1500V Rated impulse voltage
• <=3mR Volume resistivity
• >500 mating cycles Mechanical operation
• IP67 Protection rating

Applications

Medical, Consumer Electronics, Commercial, Portable Devices

Other details

Brand	BINDER
Part Number	99-9210-00-04
Quantity	Each
Technical Data Sheet EN
Drawing EN
