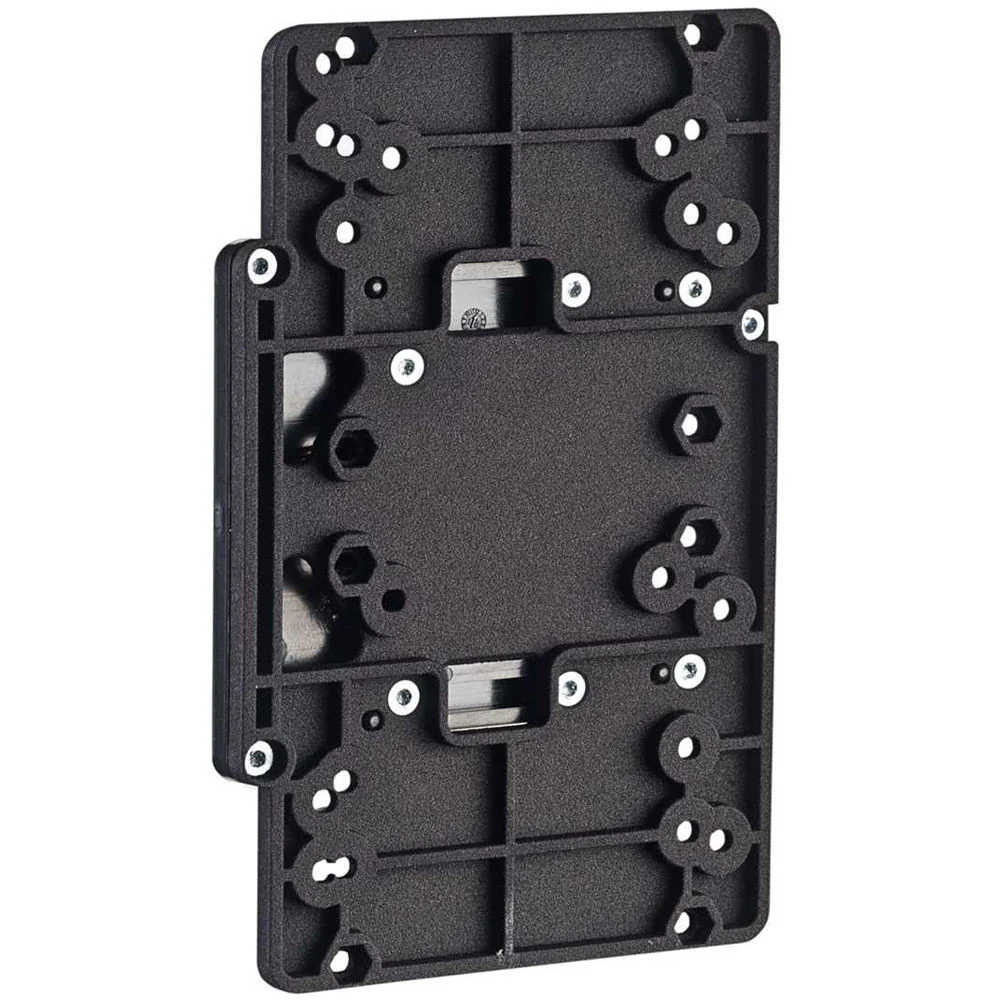

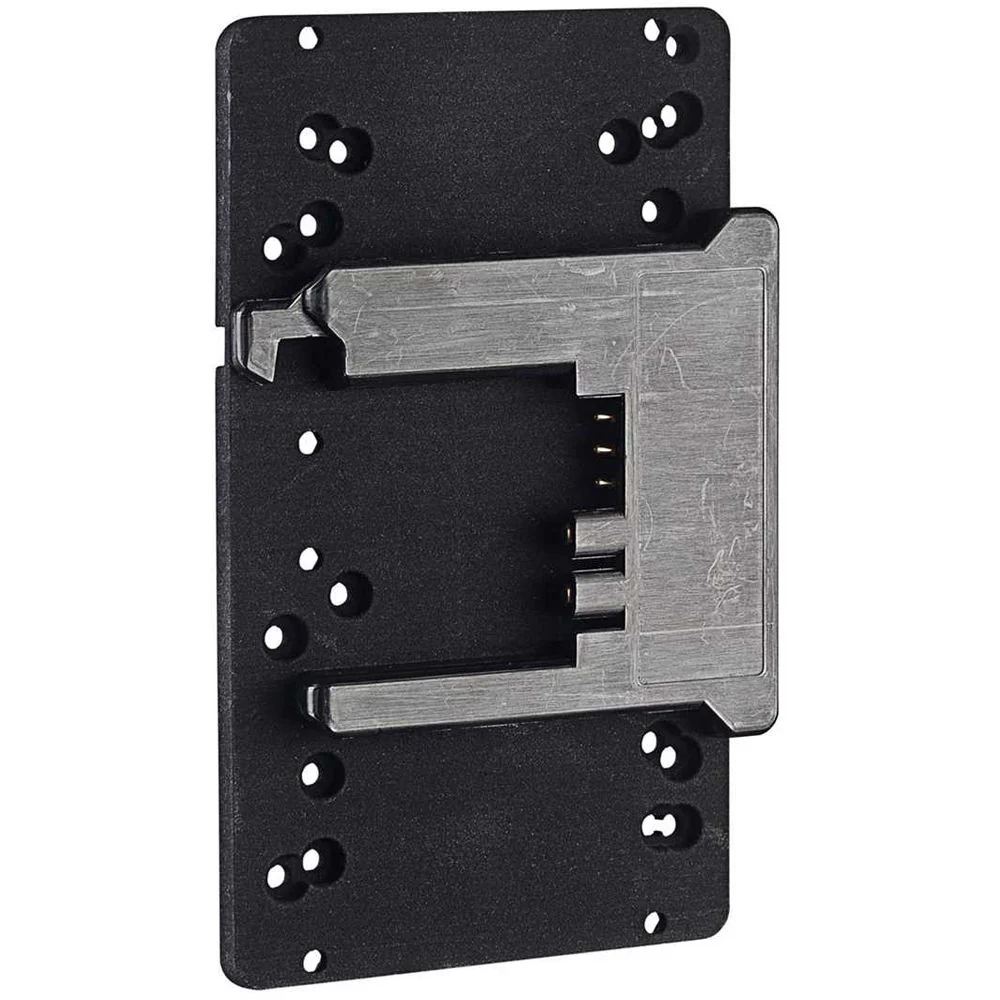

bebob Male B-Mount Plate 28.8V (Camera Side)
bebob BMM-24 Overview

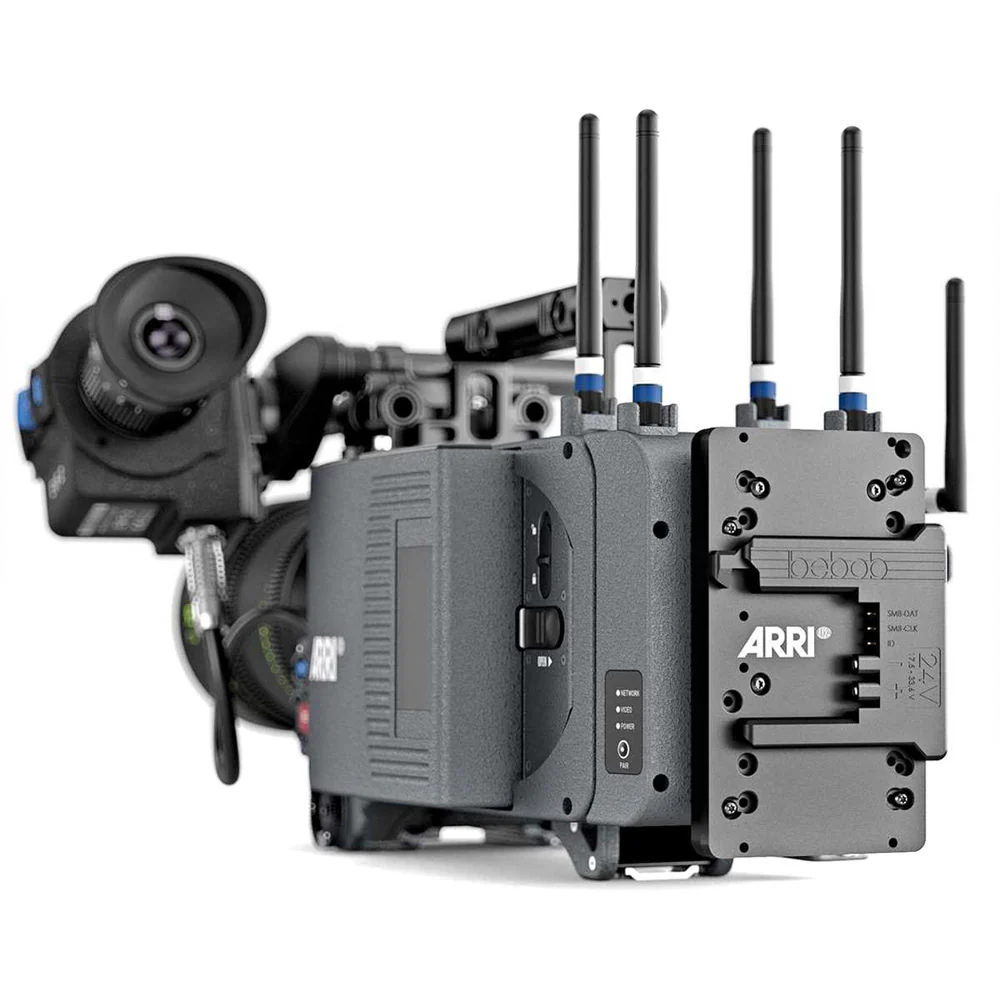

Power your camera or accessory using a B-mount battery with this Male B-Mount Plate 28.8V from bebob. The plate is designed to mount directly onto your camera or device using screws and provides power via 3-wire bare connectors. It allows you to power the camera using a bebob B-mount battery such as the B90CINE, B155CINE, B290CINE, or B90 CINEHS.
The plate supports 20.5 to 33.6 VDC pass-through power and supports up to 20A maximum draw. It is made from lightweight, durable plastic material.
- Cameras and gear with a 3-wire connection
- bebob B90CINE, B155CINE, B290CINE, and B90 CINEHS B-mount batteries
In the Box
- bebob Male B-Mount Plate 28.8V (Camera Side)
- Limited 2-Year Manufacturer Warranty
bebob BMM-24 Specs
| Power Input | 20.5 to 33.6 VDC |
| Maximum Load | 20 A (Peak) |
| Camera Power Method | Bare Leads |
| Plate Front / Battery Mount | B-Mount |
| Plate Rear Mount | Proprietary Battery Plate |
| Number of Battery Bays | 1 |
| Material of Construction | ABS Plastic |
| Dimensions | 5.7 x 3.3 x 0.3" / 144 x 85 x 8 mm |
| Weight | 2.5 oz / 70 g |
| Package Weight | 0.385 lb |
| Box Dimensions (LxWxH) | 7.1 x 4.3 x 2.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
