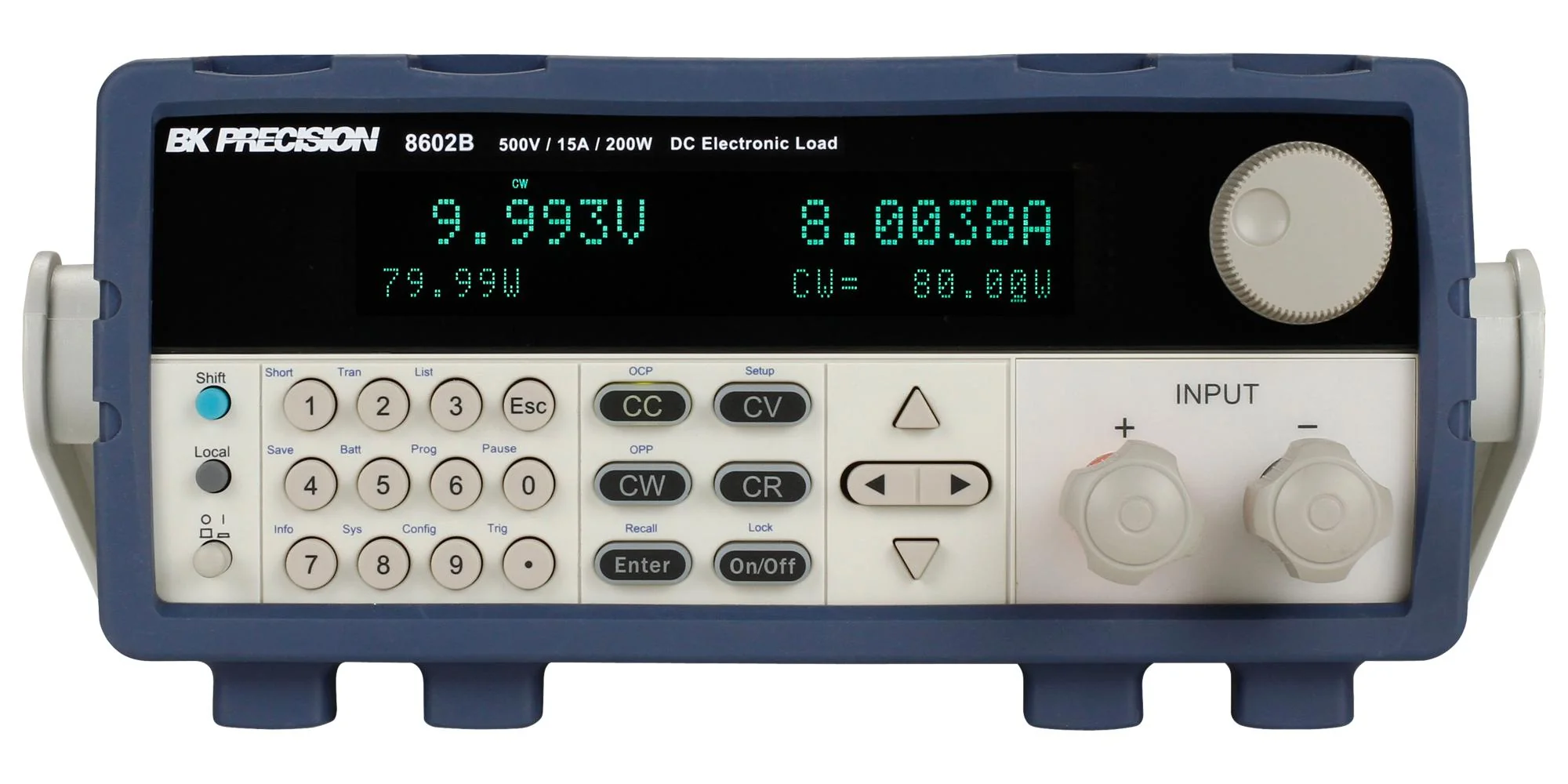

B&K Precision BK8602B DC Electronic Load 8600 200 W Programmable 0 V 500 15 A
8600B series programmable DC electronic load provide the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds and high 16bit measurement resolution, this standalone DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers and photovoltaic arrays. It provides a built-in battery test mode to measure the ampere-hour (Ah) characteristic of a battery and a unique CR-LED mode to simulate the loading behaviour of a typical LED.
- 0 to 500V operating voltage, 0 to 15A rated current and 200W power
- CC/CV/CR/CW operating modes and adjustable slew rate in CC mode
- Store and recall up to 100 setups
- Flexible triggering options via front panel, external input, timer or bus
- Built-in battery test function with voltage level, capacity level and timer stop conditions
- Test modes to validate the OCP/OPP protection functions of a power supply
- CR-LED mode to simulate the loading behaviour of typical LEDs
- Remote sense, analogue current control and monitoring
- Thermostatically controlled fan

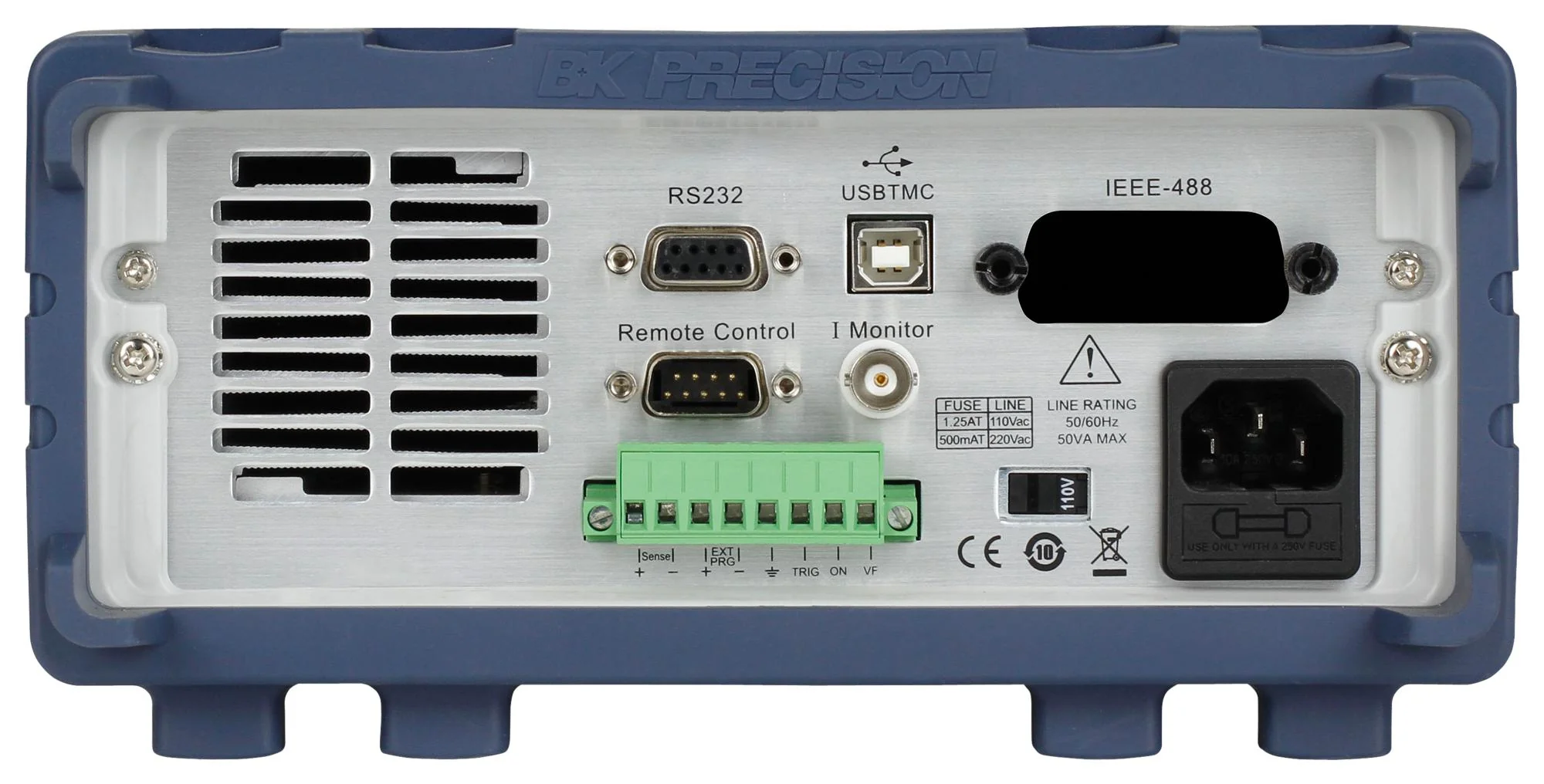

- Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
DC electronic load, User manual, Power cord, Certificate of calibration.
Other details
| Brand | B&K PRECISION |
| Part Number | BK8602B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
