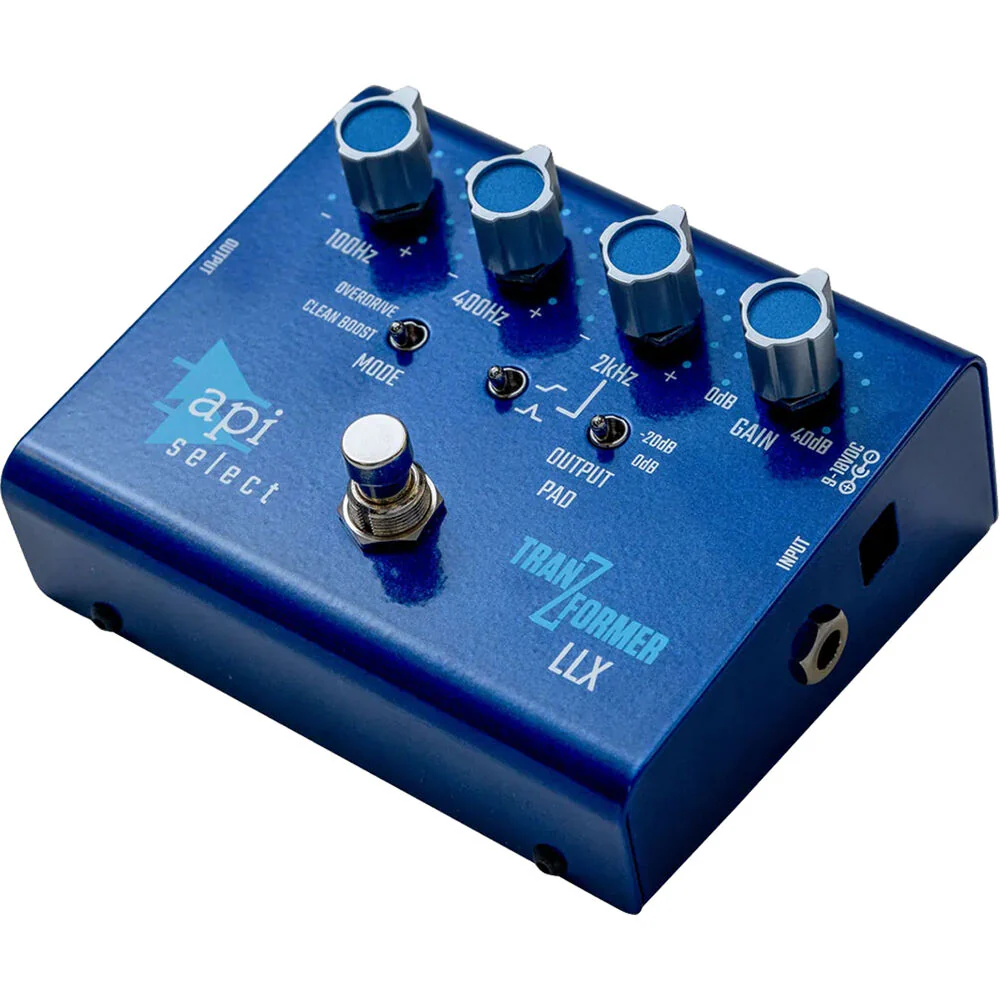

API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass
HomeStore

API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass

API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass

API AUDIO TRNZFR Overview

Stuffing a 525 feedback-style compressor and a 553-inspired inductor EQ into a compact pedal, the API Audio TranZformer LLX is an FX pedal for bass guitars that can replace your bass amp head. Sporting 3-band EQ control, six levels of compression intensity, and the ability to switch from an up to 40 dB clean boost to full overdrive mode, this pedal offers killer bass tone.

The pedal allows you to flip the high band (2.5 kHz) to either peak or shelf mode. The output level control is continuously variable. Three dedicated footswitches are on hand (Tone, Bypass, and Comp) for switching on or off each section of the pedal. The front panel features a switch for engaging a -20 dB pad on the output. Outputs include an unbalanced 1/4" Hi-Z and balanced XLR output (the XLR output cannot be bypassed). Each output sports a selectable phase inversion function and the XLR output includes selectable ground lift for eliminating ground issues that can induce hum and noise. The pedal accepts 9 to 18 VDC power input from standard power supplies, with 18 VDC offering increased headroom.

Ultimate Bass Sculpting Box
The API TranZformer LLX provides unsurpassed sonic sculpting by combining a legendary API 525 feedback type compressor circuit with an inductor-based tone control, inspired by the vintage API 553 program equalizer in a versatile and robust bass pedal/direct box, with balanced and unbalanced outputs. Features include independent tone and compression in/out footswitches, phase inverters on each output, ground lift, clip indicator, transformer output, true hardwire bypass, and of course the classic API sound.

Items Included

  • API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass
  • Limited 5-Year Manufacturer Warranty

Not Included

Additional Resources

    API AUDIO TRNZFR Specs

    General
    Audio Circuit Type
    Analog (Solid-State)
    Input Impedance
    1 Megohm
    Output Impedance
    <1 Kilohm
    Maximum Output Level
    9 VDC: +15 dBu
    18 VDC: +22 dBu
    Frequency Response
    20 Hz to 20 kHz
    Controls
    4 x Rotary Knob (EQ Band Gain, Preamp Gain)
    3 x 2-Way Switch (Boost Mode, 2 kHz Peak/Shelf Mode, -20 dB Pad On/Off)
    3 x Push Button (1/4" Out Phase, XLR Out Phase, XLR Out Ground Lift)
    1 x Footswitch (On/Bypass)
    Inputs/Outputs
    Audio I/O
    1x 1/4" TS Hi-Z/Instrument Input
    1x XLR 3-Pin Line Output (Balanced)
    1x 1/4" TS Hi-Z/Instrument Output
    Power
    Power Source
    AC Adapter with Power Brick
    DC Input Power
    9 to 19 VDC at 100 mA
    Operating Current
    100 mA
    Physical
    Color
    Blue
    Material of Construction
    Metal
    Dimensions
    4.6 x 3.8 x 3" / 11.7 x 9.7 x 7.6 cm
    Weight
    1.5 lb / 0.7 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $530.84
    API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass—
    $530.84

    More Images

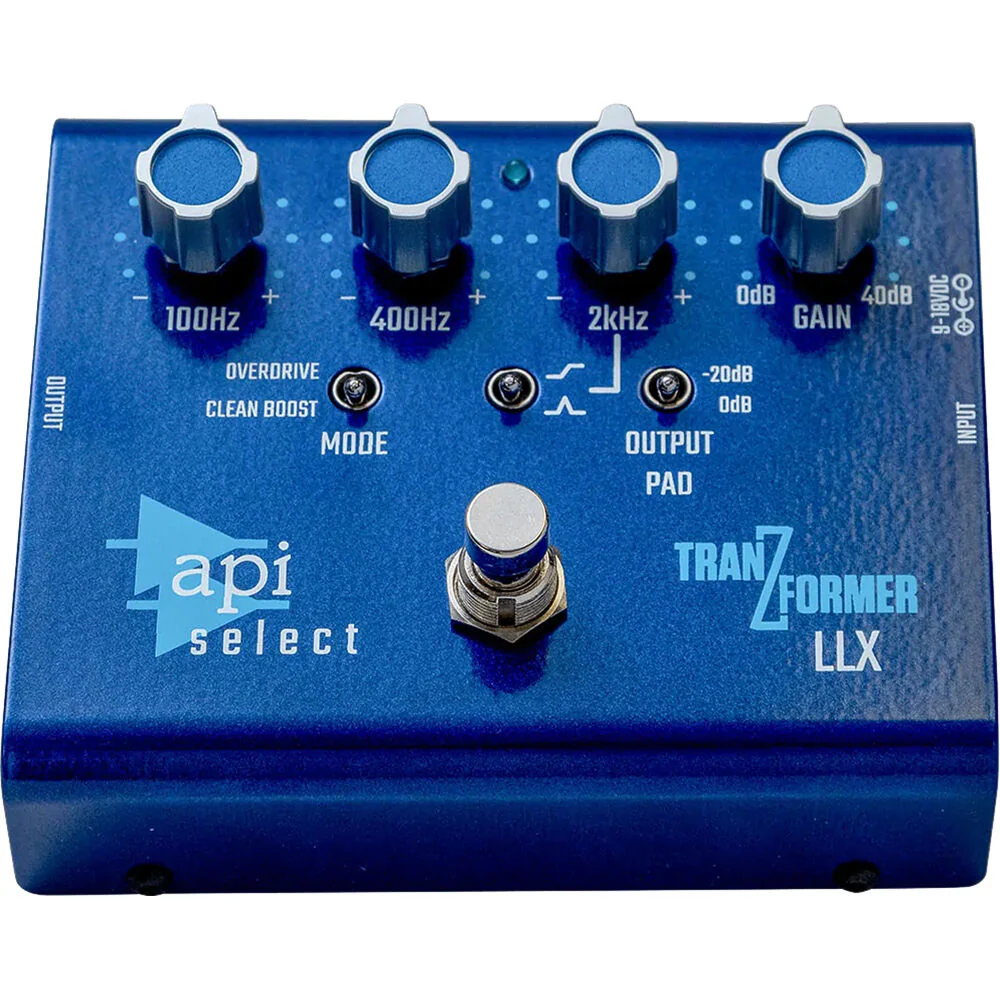

    API AUDIO TranZformer LLX EQ, Boost, and Overdrive Pedal for Bass - Image 2
