API AUDIO SR22 Dual-Channel Compressor
HomeStore

API AUDIO SR22 Dual-Channel Compressor

API AUDIO SR22 Dual-Channel Compressor

API AUDIO SR22 Overview

Based on the celebrated dynamics section of the classic ATI Paragon live mixing consoles, the API Audio SR22 is a dual-channel compressor with optional stereo link support and API's patented THRUST circuit for enhanced low-end punch. Sporting variable threshold, ratio, and makeup gain controls, this compressor is fast, easy to use, and delivers professional results.

The SR22 features an automatic timing circuit that sets the attack and release times based on the audio signal, resulting in pleasing compression that avoids the clicks and pops of hard-edged attack and ultrafast release times. You can also switch between hard- or soft-knee compression modes. The SR22 includes two classic illuminated analog VU meters, with the option to switch between monitoring output level or gain reduction. You also get a peak LED indicator. This compressor provides fully balanced I/O via either XLR or 1/4" connections.

A Paragon of Compression
This is the same compressor circuit originally included in all ATI Paragon mixing consoles. ATI was founded in 1988 to manufacture audio equipment for live sound reinforcement. Paragon mixing consoles could be found on many of the top tours of the past 20 years. One of the most distinctive features of these consoles were the onboard dynamics processing, favorites of many top engineers on the road.

ATI was able to acquire API in 1999, and today, the engineering approach and manufacturing processes of ATI have been incorporated into API. The SR22 is a faithful reproduction of this classic compression circuity.

Simple Control
Each channel includes the patented THRUST circuit, which protects the sensitive high-frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Items Included

  • API AUDIO SR22 Dual-Channel Compressor
  • Limited 5-Year Manufacturer Warranty

Additional Resources

    API AUDIO SR22 Specs

    General
    Input Impedance
    15 Kilohms
    Frequency Range
    20 Hz to 50 kHz
    THD + N
    <0.005%
    Maximum Input Level
    +19 dBu
    Signal-to-Noise Ratio
    -88 dBu (Compressor In)
    Crosstalk
    <84 dB
    Inputs/Outputs
    Audio I/O
    2x XLR 3-Pin Line Input
    2x 1/4" TRS Line Input
    2x XLR 3-Pin Line Output
    2x 1/4" TRS Line Output
    Power
    Power Source
    AC Input
    AC Input Power
    Changing Voltage Requires Manual Switching
    115 to 230 VAC, 50 / 60 Hz
    Power Consumption
    12 W
    Physical
    Mounting
    Front: 4x Standard Rack Screw
    Color
    Blue
    Material of Construction
    Metal
    Dimensions
    19 x 10 x 3.5" / 48.3 x 25.4 x 8.9 cm (2 RU)
    Weight
    12 lb / 5.4 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $2,282.92
    API AUDIO SR22 Dual-Channel Compressor—
    $2,282.92

    More Images

    API AUDIO SR22 Dual-Channel Compressor - Image 2

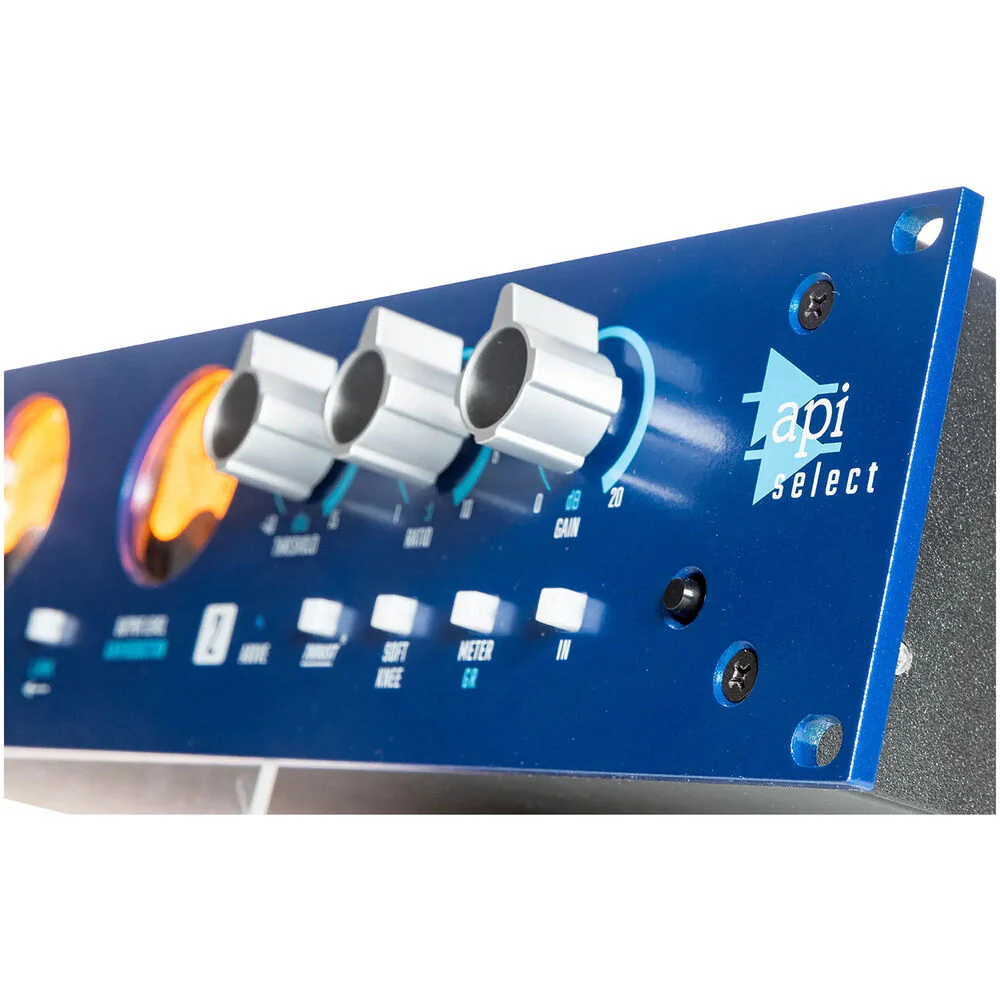

    API AUDIO SR22 Dual-Channel Compressor - Image 3

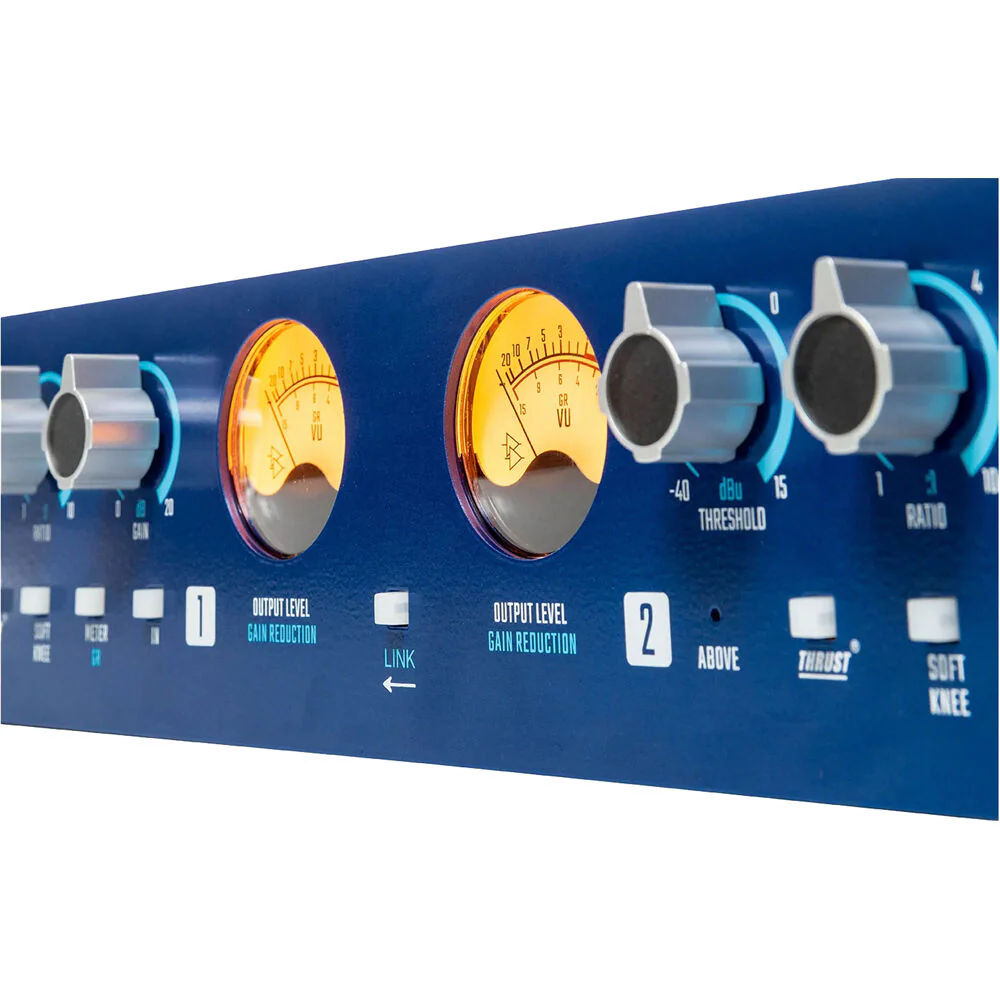

    API AUDIO SR22 Dual-Channel Compressor - Image 4
