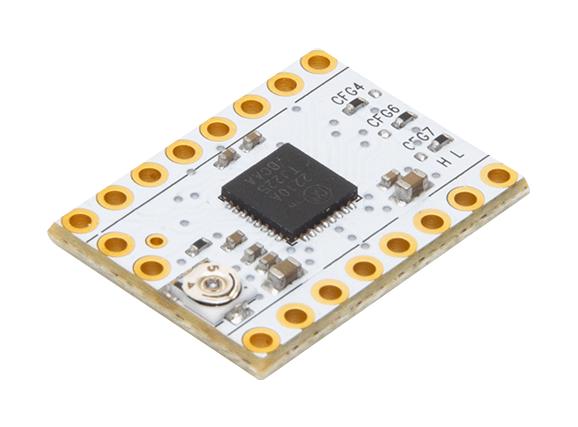

ANALOG DEVICES TMC2210STEPSTICK Development Board, TMC2210, Stepper Motor Driver
Product Overview
TMC2210STEPSTICK is a TMC2210 stepper motor development board.
- Supply voltage range from 4.5V to 36V
- Iphase up to 2.0ARMS
- 1...256 microsteps
- StealthChop2 silent PWM mode
- StallGuard4 sensorless motor load detection
- Control through STEP&DIR interface
- Board width is 0.6", board height is 0.8"
- 2 x 8 pin 0.1" header rows for pins/connectors
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | TMC2210STEPSTICK |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
