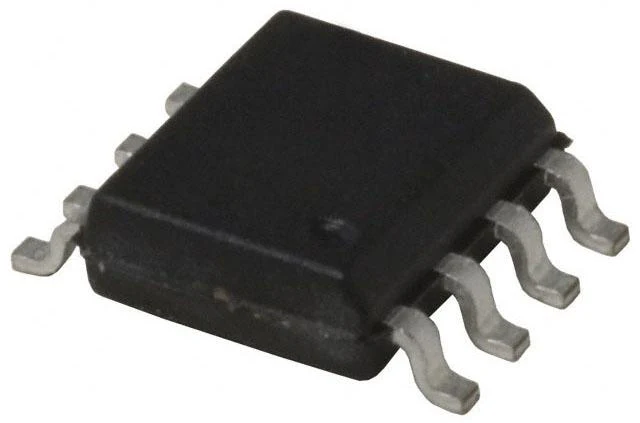

ANALOG DEVICES MAX22501EAUA+ Transceiver, RS422, RS485, 1 Driver, 1 Receiver, 3 to 5.5 V, µMAX-8, 125 °C

ANALOG DEVICES MAX22501EAUA+ Transceiver, RS422, RS485, 1 Driver, 1 Receiver, 3 to 5.5 V, µMAX-8, 125 °C

ANALOG DEVICES MAX22501EAUA+ Transceiver, RS422, RS485, 1 Driver, 1 Receiver, 3 to 5.5 V, µMAX-8, 125 °C

Product Overview

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party

Product details

Technical Specifications

IC Type

RS422 / RS485 Transceiver

No. of Transmitters

1

Data Rate Max

100Mbps

Supply Voltage Max

5.5V

No. of Pins

8Pins

ESD Protection

±6 kV (Contact), ±7 kV (Air Gap), ±15 kV (HBM)

Operating Temperature Min

-40°C

Product Range

-

MSL

MSL 1 - Unlimited

No. of Receivers

1Receivers

Communication Mode

Half Duplex

Supply Voltage Min

3V

IC Case / Package

µMAX

No. of Nodes

-

Fail Safe

Open, Short

Operating Temperature Max

125°C

Qualification

-

SVHC

No SVHC (21-Jan-2025)

Other details

Brand	ANALOG DEVICES
Part Number	MAX22501EAUA+
Quantity	Tube of 1
Technical Data Sheet EN

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

$9.33
