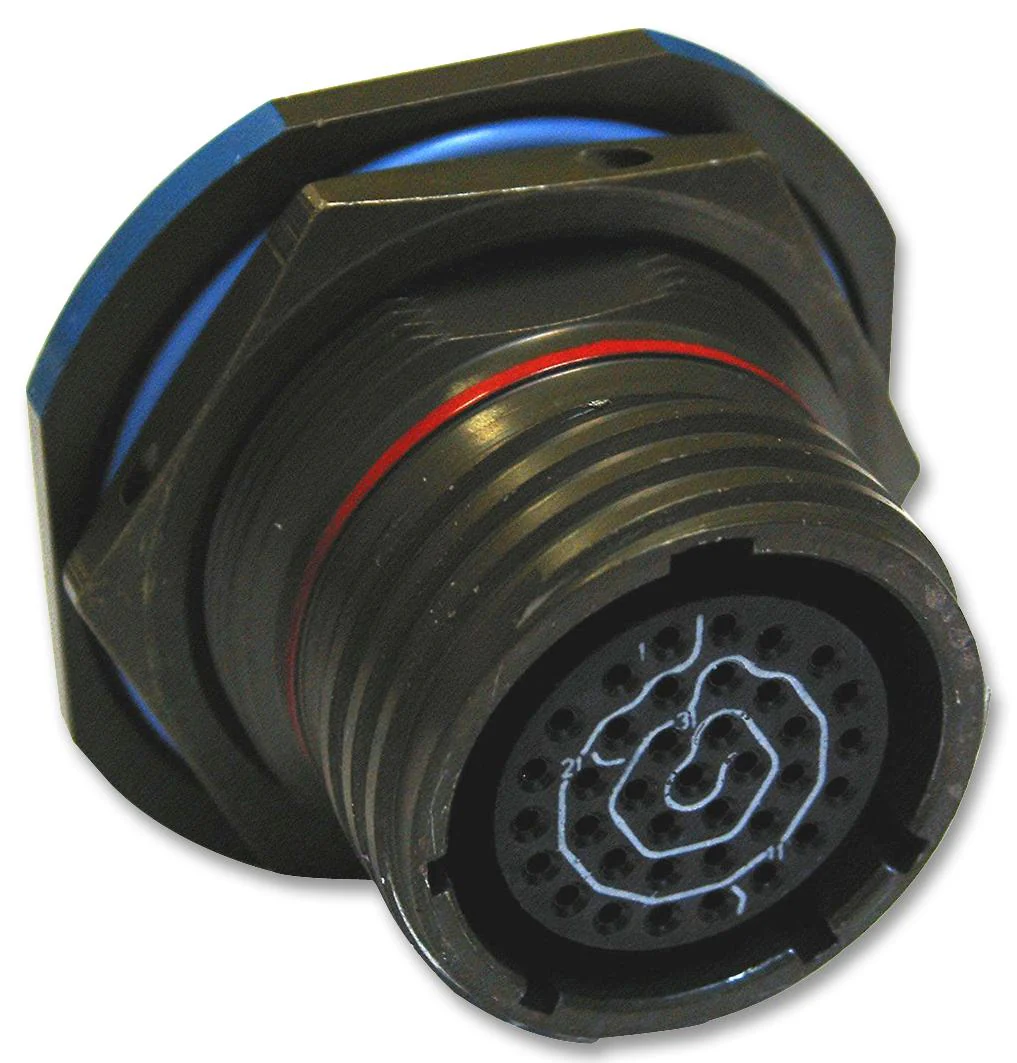

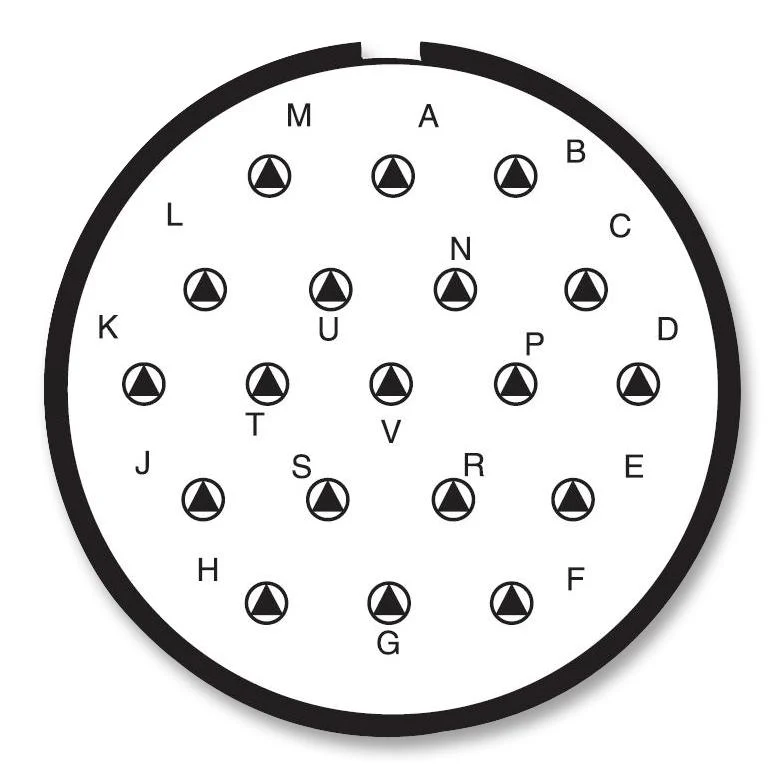

Amphenol LTD D38999/24FJ19PA D38999/24FJ19PA Circular Connector MIL-DTL-38999 Series III Jam Nut Receptacle 19 Contacts Crimp Pin Threaded

The D38999/24FJ19PA from Amphenol is MIL-DTL-38999 Series III jam nut receptacle with 19 contacts. MIL-DTL-38999 Series III connectors are available in wide range of shell materials and finishes with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration.

• High reliability, moisture and corrosion resistant
• Outstanding EMI, RFI shielding protection
• 500 mating cycles, high durability versions are available with 1500 mating cycles
• Operates at extreme temperature range of -65°C to +200°C
• Minimum insulation resistance is 5000Mohm (under 500VDC)
• Scoop proof to eliminate the possibility of contact damage
• IP67 environmental protection
• Self locking connector system, triple start threaded coupling
• Aluminium alloy body material with electroless nickel plating
• Copper alloy crimp pin contacts with gold plating

Applications

Aerospace, Defence, Military, Industrial

Other details

Brand	AMPHENOL LTD
Part Number	D38999/24FJ19PA
Quantity	Each
Technical Data Sheet EN
