American DJ Scene Setter 24-Channel Dimmer Board
American DJ SCENE SETTER 24 Overview
The American DJ Scene Setter 24-Channel Dimmer Board allows you to coordinate audio and visual elements so you can synchronize music with your lights and an optional fog machine, as well as individually control up to 24 channels of incandescent light fixtures. The board uses DMX control protocols to run incandescent lighting using your dimmer packs. You can operate the board as 24 individual faders or as a standard 2 x 12 fader board.
You can program up to 4200 independent scenes as well as 48 chases. In addition, you can run up to 12 chases simultaneously. Once programmed you can password protect your scenes and chases to prevent them from being accidentally altered, which is useful when working with a shared board. The board features both a dark and blackout button for rapidly diming or cutting the lights without changing any settings. MIDI in, through, and out are supported, as well as a built-in sound-activated and analog audio input. You can connect your fog machine to the board to operate it from a programmed scene or manually at the touch of a button.
- 24 Channel DMX Dimming Console
- Easy programmability
- 4200 programmable scenes
- 48 recordable programs
- Fog Machine trigger button
- USITT DMX-512 protocol
- MIDI In, Out & Through
- 24 individual fader channels
- Standard 2 scene operation(2 x 12)
- Fade time & Speed control
- Sound active via built-in microphone or Line in
- Mix chases
- Dark & Black out buttons
In the Box
- American DJ Scene Setter 24-Channel Dimmer Board
- AC/DC Power Supply (Wall Wart)
- Limited 1-Year Warranty
American DJ SCENE SETTER 24 Specs
| Power Input | 12-120 VDC, 500 mA (Minimum) |

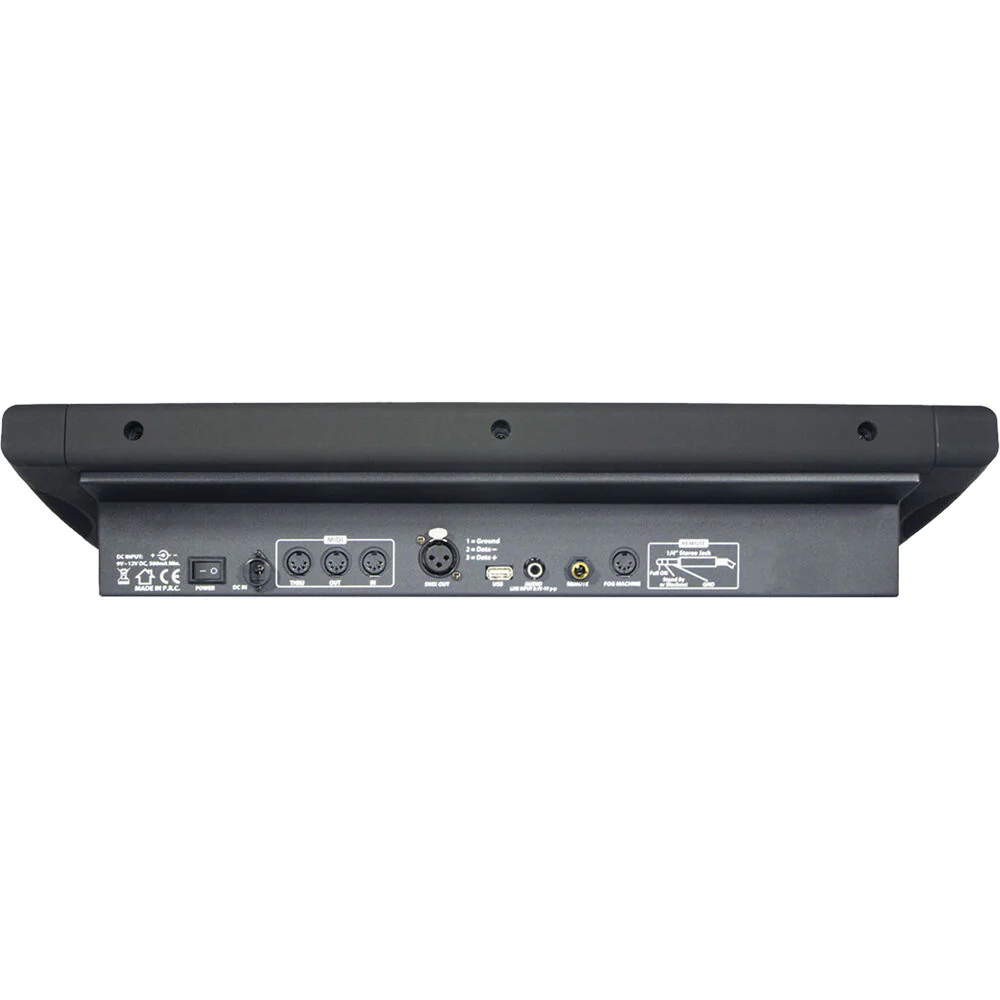

| Connectors | DMX Output: 3-Pin XLR (Female) MIDI In: 5-Pin DIN Out: 5-Pin DIN Through: 5-Pin DIN Audio Line Input: 100 mV~1Vpp Remote 1/4" Stereo Jack Fog Machine 5-Pin DIN |
| Fuse | Rating: F0.5A, 250 Volt Size: 0.79 x 0.2" / 20 x 5 mm Location: Internal |
| Dimensions | 21 x 13 x 5" / 533 x 330 x 127 mm |
| Weight | 10.14 lb / 4.6 kg |
| Package Weight | 11.72 lb |
| Box Dimensions (LxWxH) | 25.4 x 15.9 x 6.3" |
