American DJ PAR Z100 3K2 White LED Stage PAR Can (3000K, Black)
American DJ Par Z100 3K2 Overview
Upgrade your lighting experience with the black American DJ PAR Z100 3K2, a bright, white LED PAR fixture, which combines the aesthetic appeal of a traditional stage PAR can with the contemporary advantages of LED technology. The fixture features a 100W, 3000K white COB LED engine with a CRI of 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.
The manual zoom lets you focus the beam at 9, 15, 20, 25, and 30° angles. The fixture can be controlled via two channels of DMX, and comes equipped with a powerCON in/out to daisy-chain up to 15 fixtures at 120V (25 at 230V). Other features include 0 to 100% electronic dimming with six dimmer modes, an LED display with a 4-button menu for easy navigation, and a universal, auto-sensing power supply. A gel frame for diffusion filters is also included (filters available separately).
- 100W, 3000K White C.O.B. LED (Chip On Board)
- Manual Zoom: 9, 15, 20, 25, or 30°

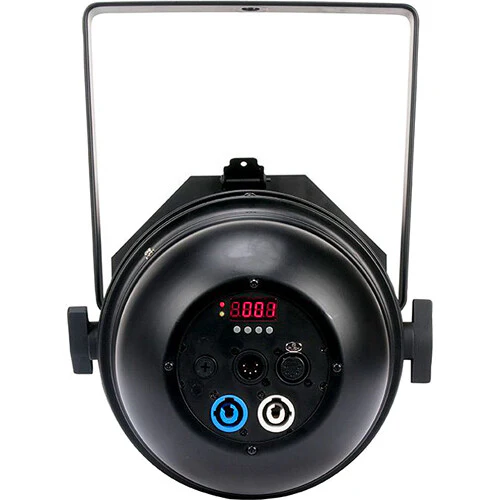

- 4-button DMX menu display on rear panel
- OLED display

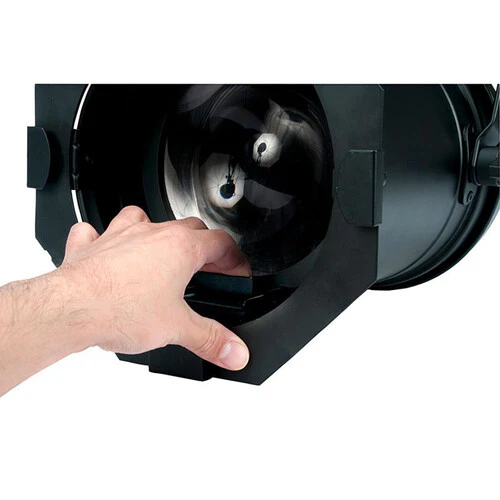

- Adjustable latch to manually change beam angle
- Includes gel frame for diffusion filters (Diffusion filter sold separately)
- Strobe Rate: 0.6 to 7.5 Hz
- Refresh Rate: 1.2 kHz
- Electronic Dimming: 0 to 100%
- 6 Dim Modes
- Daisy chain: 15 fixtures at 120V; 25 fixtures at 230V
- DMX: 5-pin DMX In/Out
- DMX-512
- 2 DMX control modes: (3 & 4 Ch. modes)
- RDM and RDM Net Compatible
- Primary/Secondary, stand-alone mode
- Onboard manual control mode
In the Box
- American DJ PAR Z100 3K2 White LED Stage PAR Can (3000K, Black)
- Gel Frame for Diffusion Filters
- PowerCON Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ Par Z100 3K2Specs
| Fixture Type |
PAR
|
| Light Source |
1x White LED (COB) - 100 W
|
| Colors |
White
|
| Beam Angle |
9 to 30°
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 115 W / 0.96 A
230 VAC, 50 Hz: 115 W / 0.5 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
PAR
|
| Light Source |
1x White LED (COB) - 100 W
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
White
|
| Photometrics |
9°:
546 fc / 5885 Lux at 16.4' / 5 m 25°: 71 fc / 767 Lux at 16.4' / 5 m |
| Color Temperature |
3000K
|
| Beam Angle |
9 to 30°
|
| Focus |
Manual
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
DMX, Primary/Secondary, Standalone
|
| Macros / Programs |
No
|
| Effects |
Strobe
|
| Strobe Rate |
0.6 to 7.5 Hz
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 90
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
2 Mode(s):
3 / 4-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON |
| Fuse |
3 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 115 W / 0.96 A
230 VAC, 50 Hz: 115 W / 0.5 A |
| Power Linking |
15 Units at 120 VAC
25 Units at 230 VAC |
| Environmental Resistance |
No
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, FCC
|
| Dimensions |
19.25 x 10.94 x 10.68" / 48.9 x 27.79 x 27.13 cm
|
| Weight |
7.9 lb / 3.6 kg
|
| Package Weight |
12.03 lb
|
| Box Dimensions (LxWxH) |
22.2 x 14.6 x 14"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
