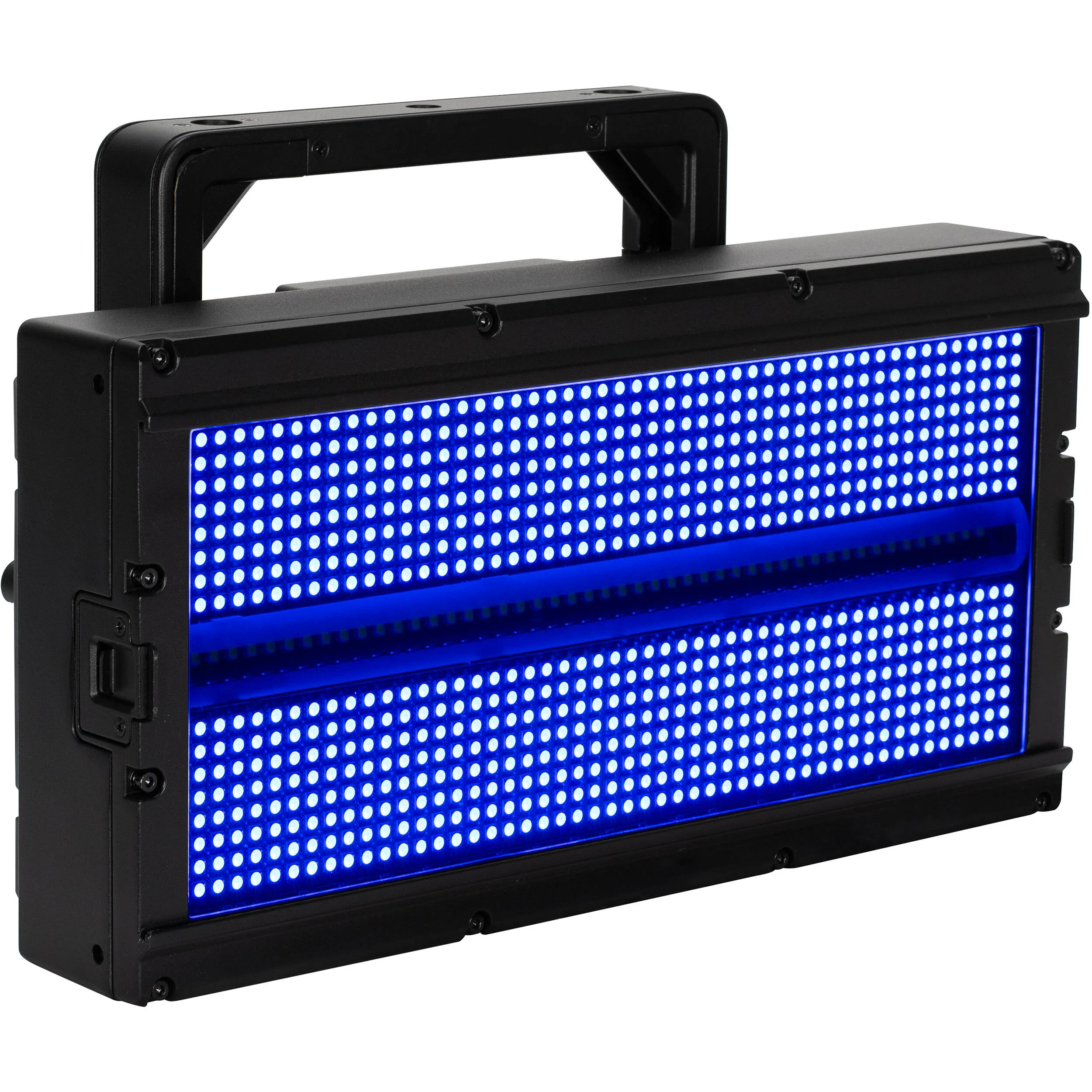

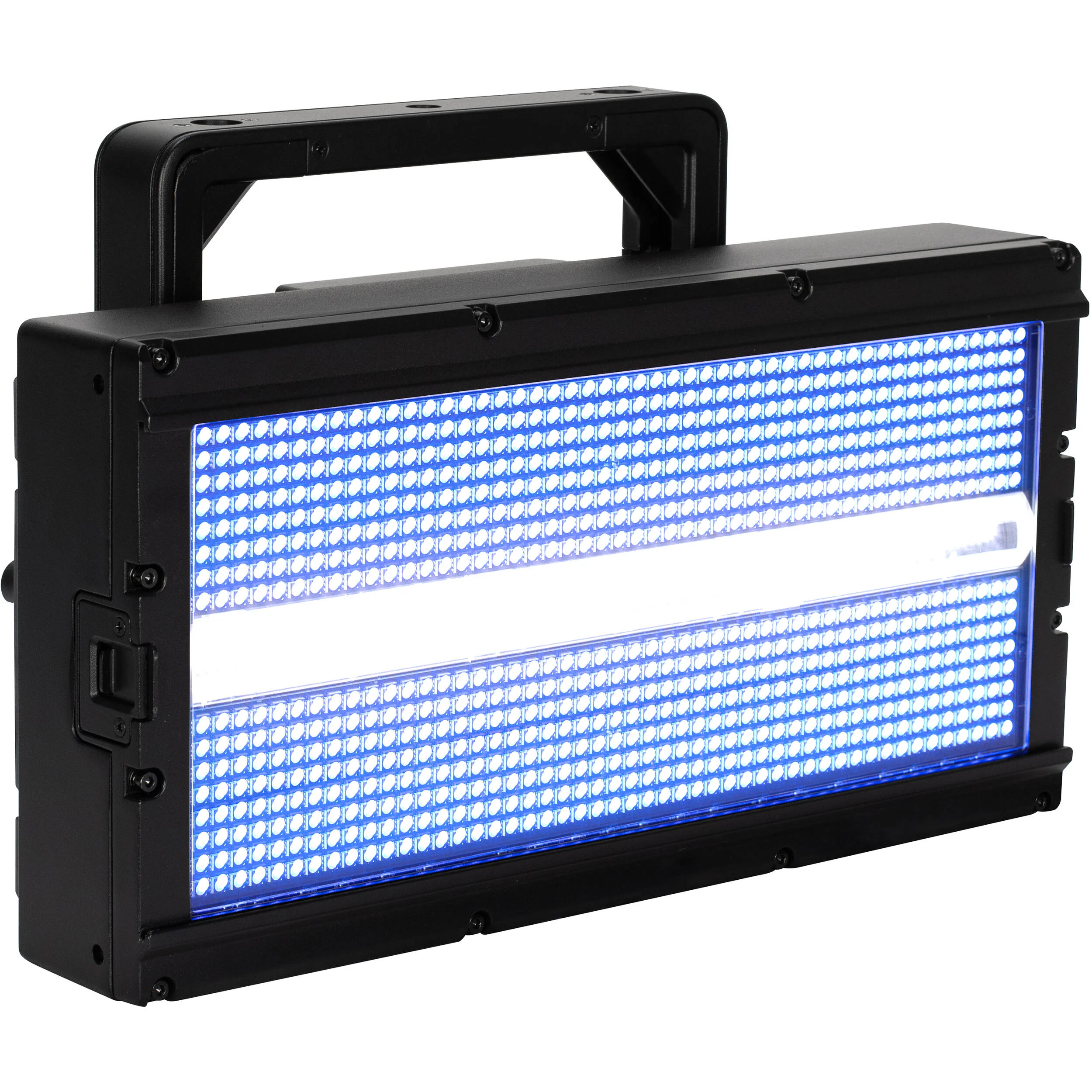

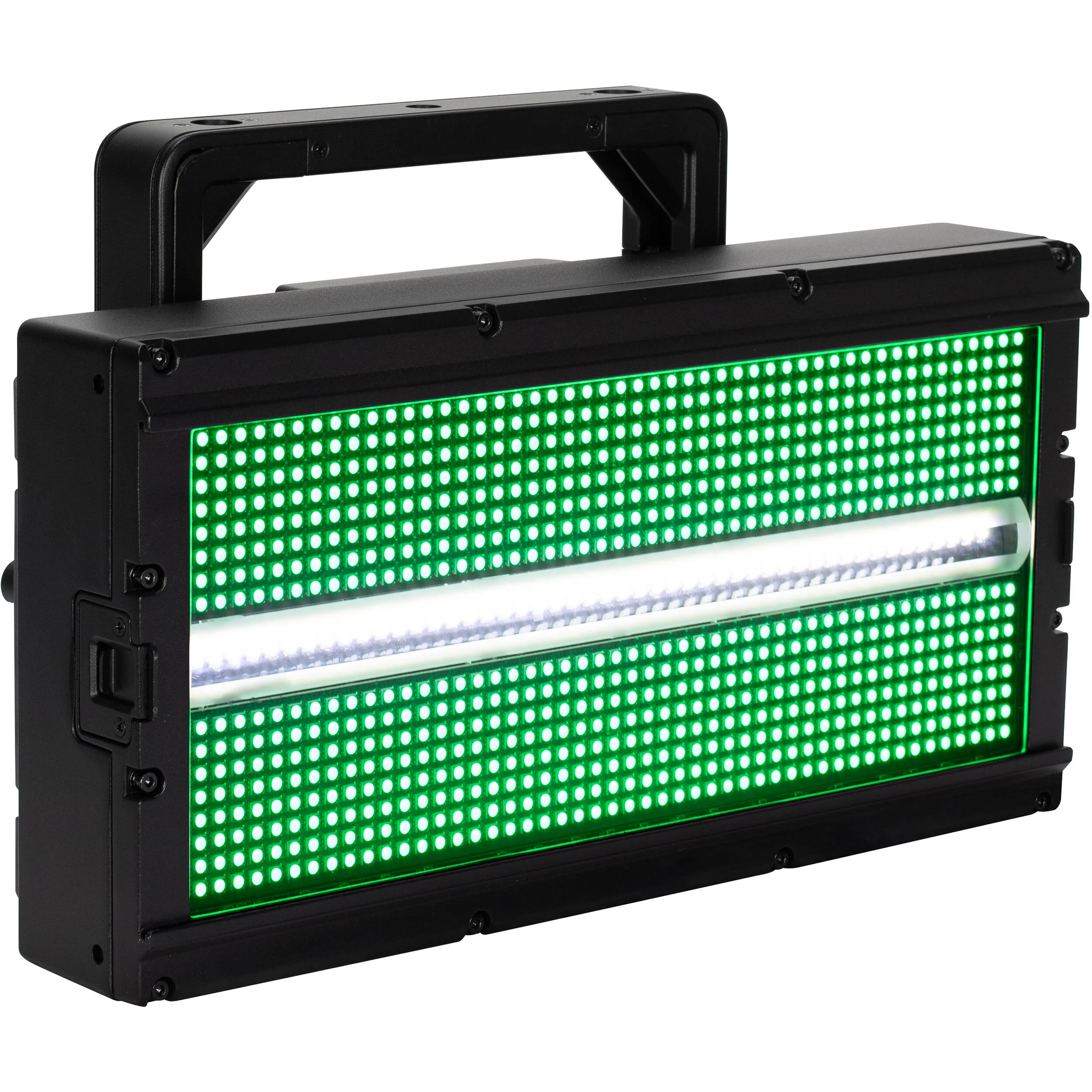

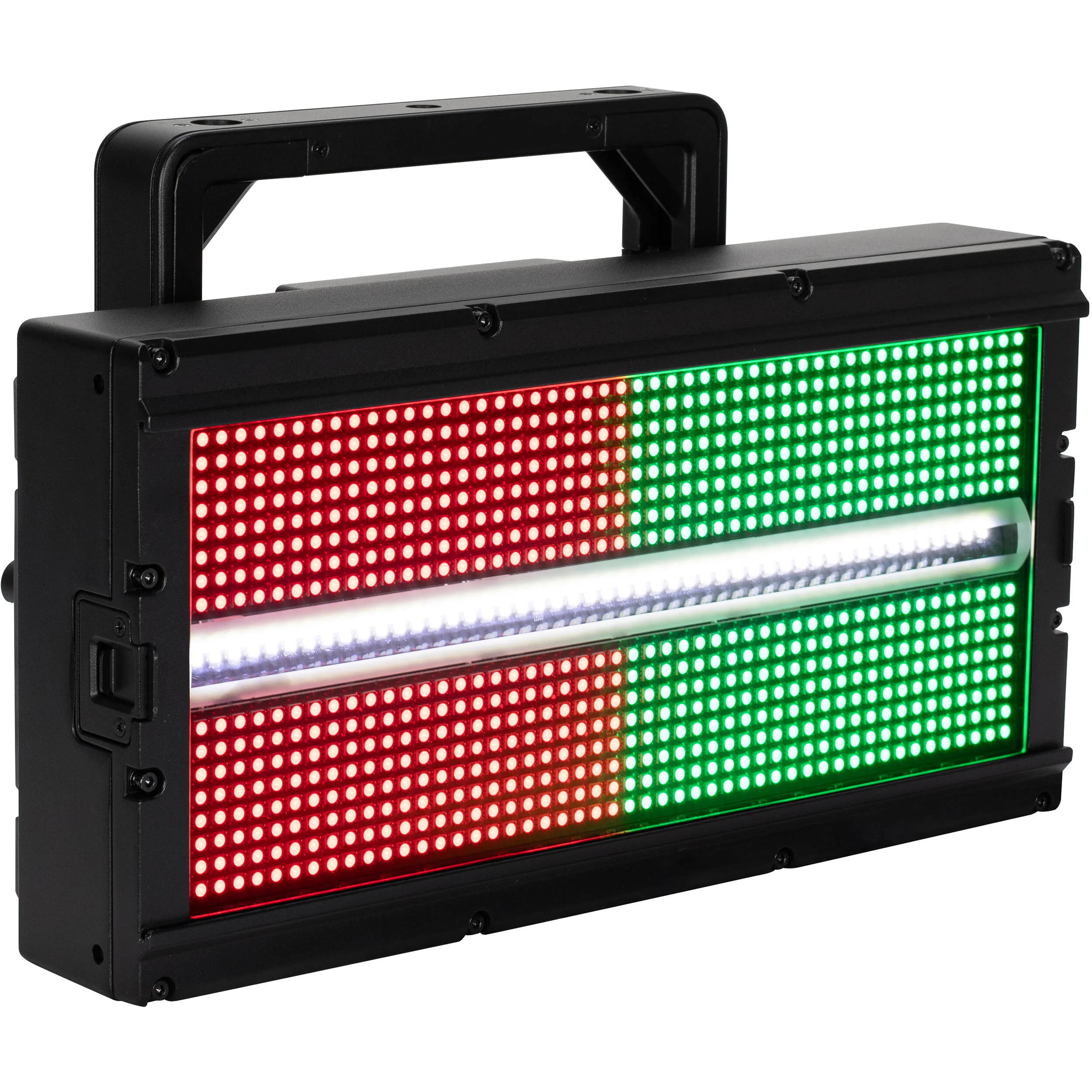

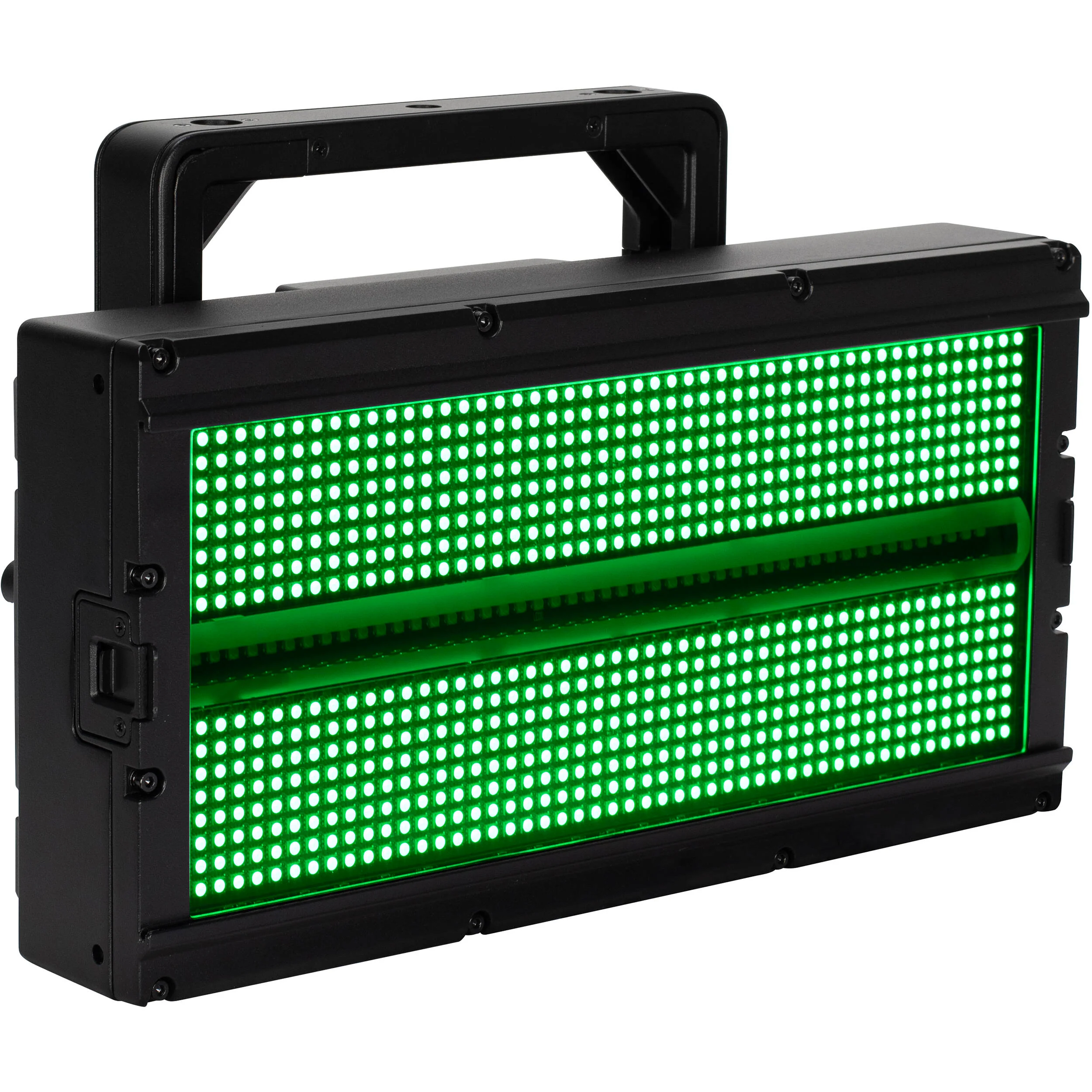

American DJ Jolt Panel FXIP All-Weather RGBW Wash / Blinder / Strobe Fixture
American DJ Jolt Panel FXIP Overview
ADJ Jolt Panel FXIP Sneak Peek - LDI 2023
ADJ Jolt Panel FX IP Features Video
Create strikingly bright white strobe flashes, vibrant color washes, and animated eye-candy chase effects indoors and outdoors with the American DJ Jolt Panel FXIP, an IP65-rated 848-LED RGB and cool white blinder, wash, and strobe fixture well suited for large stages, nightclubs, live events, and touring.
The fixture provides zone-chasing to create bright and moving effects and includes several advanced features such as dimming modes, strobe, shutter, and pulse control, 25 built-in RGB LED program macros, 6 cool-white zones, 9 built-in cool white LED program macros. The rear panel offers 5-pin DMX I/O with twistlock power input and output for daisy-chaining data and power to several fixtures. The American DJ Jolt Panel FXIP includes an IP65-rated locking power cord and a frost filter.
Note: An Omega bracket is available separately.
Benefits
- 800 x 0.5W RGB SMD LEDs + 48 x 5W cool white SMD LEDs
- 73° beam angle
- 111° field angle
- Color LEDs temperature: red: 620-630nm; green: 515-525nm; blue: 460-470nm; cool white LED: 6900 to 7400k color temperature
- CRI: 69.4
- 50,000 hour average led life
- 40 x RGB led zones
- 6 x cool white LED zones
- 25 built-in RGB LED program macros
- 9 built-in cool white LED program macros
- IP65-rated for temporary outdoor and indoor use
- Aria x2 Wireless DMX built-in
- Channel for light shaping filters (to blur pixel dots)
- End cap locking mechanism and connecting plate (for seamless fixture linking)
- Built-in holes to connect an omega bracket (sold separately)
- Control protocols: DMX, Aira X2, and RDM
- 6, 9, 13, 18, 36, 41, 51, 81, 126, and 141 DMX channel modes
- Dim modes: 6 presets (standard, stage, tv, architectural, theatre, and stage 2)
- Dim curves: 4 presets (linear, square law, inv square law & s curve)
- 0-100% smooth dimming
- Strobe, shutter, and pulse control
- Max strobe rate 20 Hz; min strobe rate: 1 Hz
- Refresh rate: 90 Hz to 25 kHz
- With wired digital communication network
- Display: OLED display with 4-button touch menu
UPC: 810087372453
Items Included
- American DJ Jolt Panel FXIP All-Weather RGBW Wash / Blinder / Strobe Fixture
- Frost Filter
- IP65-Rated Locking Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ Jolt Panel FXIP Specs
Key Specs
| Fixture Type |
LED Panel
|
| Light Source |
800x Color LED (SMD) - 0.5 W
48x White LED (SMD) - 5 W |
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
46x Zone
|
| Beam Angle |
73°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Mounting |
Mount Optional
|
Light
| Fixture Type |
LED Panel
|
| Light Source |
800x Color LED (SMD) - 0.5 W
48x White LED (SMD) - 5 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
46x Zone
|
| Beam Angle |
73°
|
| Field Angle |
111°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
Performance
| Operating Modes |
Automatic, DMX, Primary/Secondary, Program
|
| Macros / Programs |
25x Auto-Program
9x Color Macro |
| Effects |
Strobe (Variable Speed)
Pulse |
| Strobe Rate |
1 to 20 Hz
|
| Gobos |
No
|
| Refresh Rate |
900 Hz to 25 kHz (Adjustable)
|
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
10 Mode(s):
6 / 9 / 13 / 18 / 36 / 41 / 51 / 81 / 126 / 141-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
Wireless DMX
*Built-In |
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse |
5 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Power Linking |
6 Units at 120 VAC
12 Units at 230 VAC |
Physical
| Environmental Resistance |
No
|
| Mounting |
Mount Optional
|
| Included Accessories |
1x Power Cable
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus
|
| Dimensions |
16.42 x 10.38 x 6.06" / 417.07 x 263.65 x 153.92 mm
|
| Weight |
13.7 lb / 6.2 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
