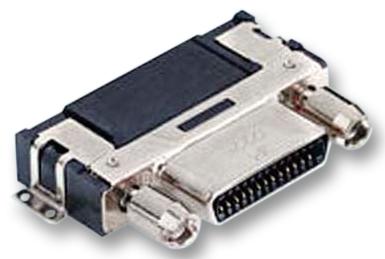

3M 12226-8250-00FR I/O Connector 26 Contacts Receptacle Rectangular Power Solder 122 PCB Mount

The 12226-8250-00FR is a 26-way 0.80mm shielded surface mount Right Angle Receptacle with gold-plated copper alloy contact, solder termination and PCB mounting. This 122 series connector is high temperature nylon insulated, wiper on wiper contact for reliable repetitive mating.

• Full metal face for better EMI shielding effectiveness
• On-board jack sockets maintain a secure connection
• 0.5A Current rating
• UL94V-0 Flammability rating

Applications

Industrial

Other details

Brand	3M
Part Number	12226-8250-00FR
Quantity	Each
Technical Data Sheet EN
3D Product Image EN
Drawing EN
